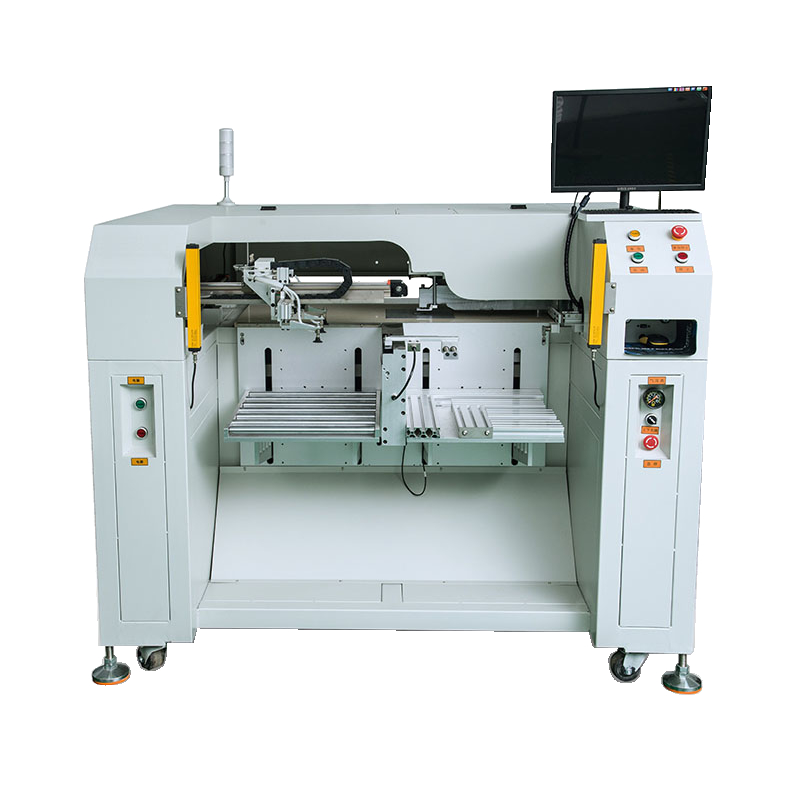

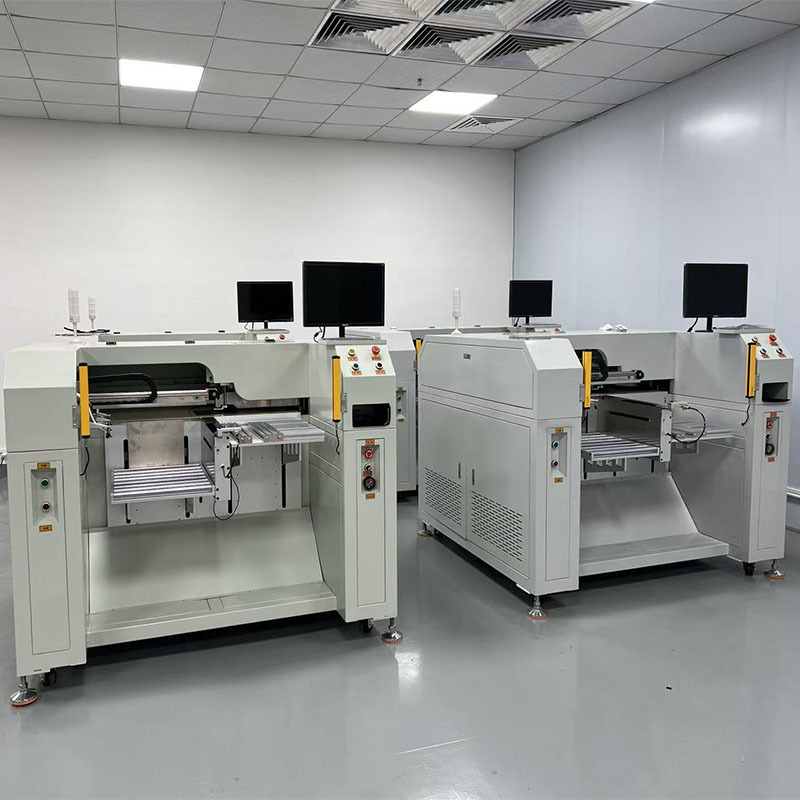

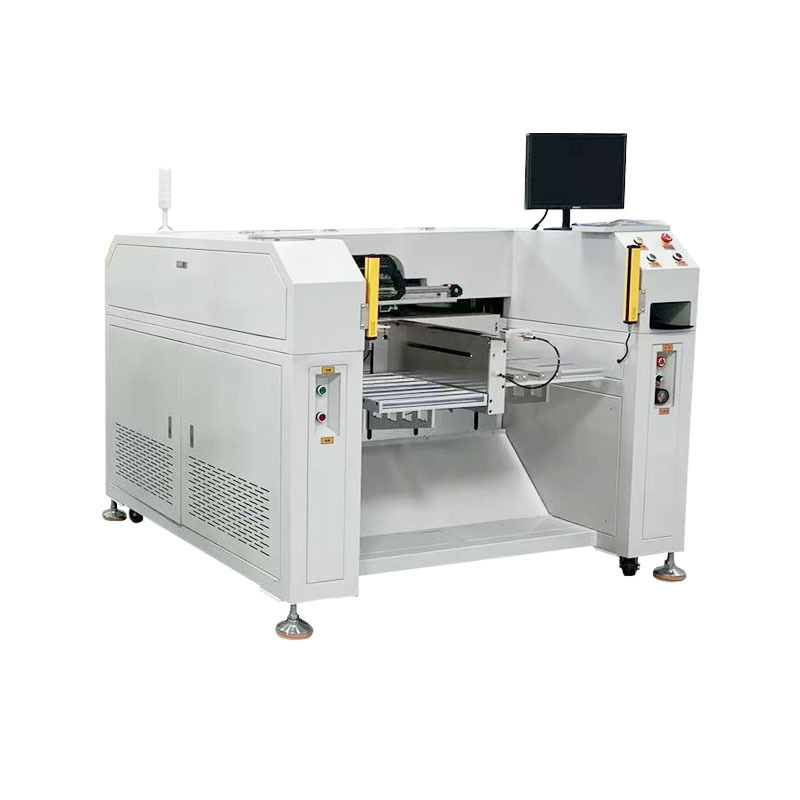

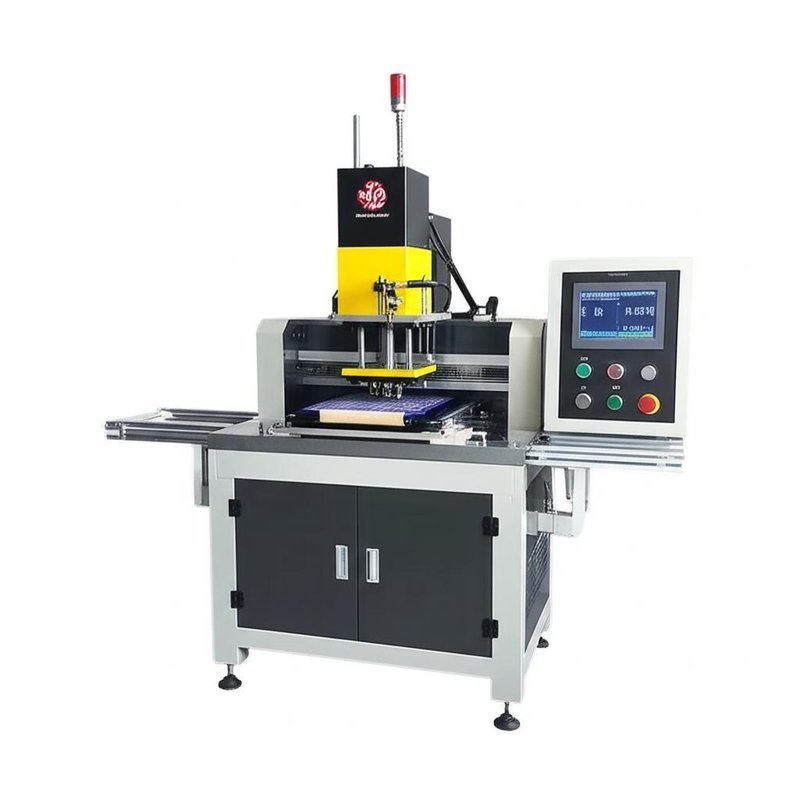

Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole

Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole

High Precision CCD Vision Punching Machine

Fast Operation Hole Punching Machine

CCD Vision Alignment Punching Machine

Place of Origin:

China

Brand Name:

SILITRON

Certification:

CE

Model Number:

SLTJ-5040

CONTACT US
Request A Quote
Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole
Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole
Product Details
Material Of Punch Die:
SKD11/61 Quenched
Substrate Thickness:
0.075-1.5mm(base On Material)
Color:
Grey
Precision:
±0.015mm
Highlight:

High Precision CCD Vision Punching Machine

,

Fast Operation Hole Punching Machine

,

CCD Vision Alignment Punching Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1800mm x W1600mm x H1450mm
Payment Terms
T/T
Supply Ability
30 sets per month
RELATED PRODUCTS
Good price Meet EU Stardards High Precision Automatic CCD Camera Registraation Hole Punching Machine For Graphic Overlays/Nameplates online video

Meet EU Stardards High Precision Automatic CCD Camera Registraation Hole Punching Machine For Graphic Overlays/Nameplates

Get Best Price
Good price Automatic CCD Image Hole Puncher Punching Machine For Self-adhesive Labels Flexible Circuits online video

Automatic CCD Image Hole Puncher Punching Machine For Self-adhesive Labels Flexible Circuits

Get Best Price
Good price 500*800mm Automatic CCD Image Hole Punching Machine For Name Plates Overlays Panels online video

500*800mm Automatic CCD Image Hole Punching Machine For Name Plates Overlays Panels

Get Best Price
Good price Fully Automatic CCD Guide Hole Puncher Punching Machine For Medical Labels online video

Fully Automatic CCD Guide Hole Puncher Punching Machine For Medical Labels

Get Best Price
CONTACT US
18390245168
info@silitronmachinery.com
Contact Now
Product Description
Original Manufacturer Automatic CCD Image Hole Puncher Punching Machine For Polycarbonate/PET/IMD/IML
Application
This machine is designed for precision hole punching in various materials including PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone components, aluminum substrates, thin aluminum sheets, nameplates, membrane switches, decals, vehicle panels, keyboards, dials, heat transfer labels, front panels, flex printed circuits, medical labels, graphic overlays, self-adhesive labels, and other thin materials.
Punching Samples
Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole 0
Product Features
  1. CCD Vision Alignment - Automatic recognition and positioning of patterns for error-free punching
  2. High Precision - Maintains an overall punching error of ±0.015 mm
  3. Fast Operation - Delivers hole punching speed 2-3 times faster than manual punching (0.5 seconds per hole)
  4. Stable Material Handling - Anti-drag system ensures substrates stay perfectly aligned during punching
  5. User-Friendly Control - Touchscreen human-machine interface simplifies operation with intuitive setup
  6. Advanced Lighting System - Special light source enables recognition of printed, unclear, semi-circles, or reflective mirror-like materials
  7. Real-Time Monitoring - Observe the punching process on a 19-inch display screen or directly at the punching position
  8. Enhanced Punching Accuracy - Pressure feet flatten films during punching for consistent results
  9. Smart Image Processing - Utilizes binary integrated image processing for accurate shape recognition
  10. Customizable Settings - Supports special configurations to meet diverse requirements
  11. Upgradeable Software - Computer system supports free lifetime upgrades with professional technical support
  12. Wide Material Adaptability - Efficiently processes films, special printing materials, and reflective surfaces
Technical Parameters
Model SLTJ-5040
Hole diameter Φ1 mm-Φ5mm (customizable)
Max material size 500*400mm
Max punching force 7kN
Multiple light sources White & colors
Punching precision ±0.015mm
Material thickness 0.1-1.2mm (material dependent)
Punching speed 0.35s/hole (excluding loading & unloading time)
Power 1.5KW
Voltage AC200V~240V
Dimension L1620mm x W1420mm x H1300mm
Weight 550kg
Storage height 200 mm
Workable Marks
Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole 1 Automatic CCD Vision Hole Punching Machine with High Precision ±0.015mm and Fast Operation 0.5s per Hole 2
Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate
  • Pneumatic components: solenoid valve, cylinder, oil-water filter, punching die, control relay
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system
  • Electrical components: AC-DC power supply, short-circuit protection air switch, driver, solenoid valve
