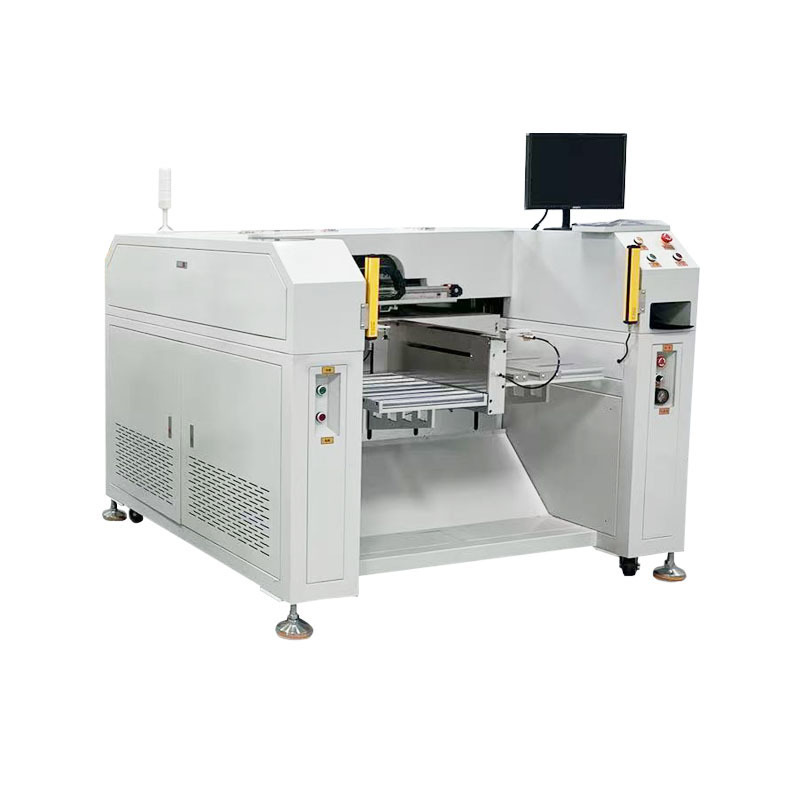

500*800mm Automatic CCD Guide Hole Punching Machine For Graphic Overlays Nameplates

Application Fields

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, glucose testing strips, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

1. Fully Automatic Functionality – Eliminates manual alignment with CCD-guided positioning.
2. Fast Punching Cycle – Achieves 0.5 seconds per hole, 2–3× faster than semi-auto methods.
3. Consistent Accuracy – Maintains error levels below ±0.015 mm.
4. Simple Interface – Set work modes directly on the touchscreen display.
5. Clear Visualization – Observe operations on a 19-inch screen for confidence in results.
6. Precision Hold-Down – Film is pressed flat for highly stable punching.
7. Special Light Source Recognition – Handles difficult detection cases on diverse substrates.
8. Handles Special Cases – Suitable for broken circles, semi-prints, or reflective surfaces.
9. Binary Imaging – Guarantees reliable recognition through advanced processing.
10. Upgradeable Platform – Long-term usability with ongoing software support.

Technical Parameters

Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

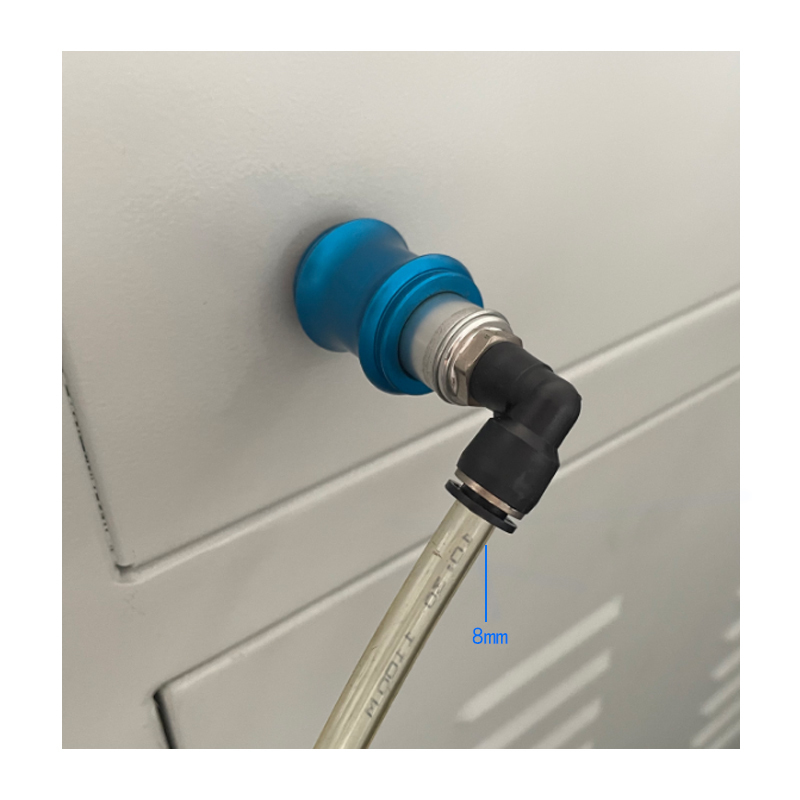

• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
•
