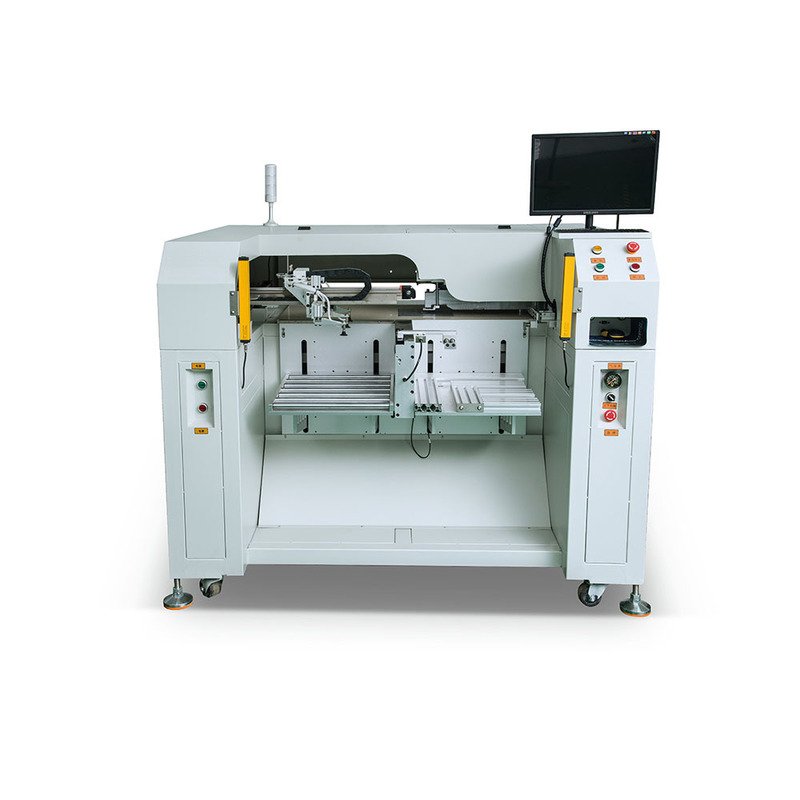

Automatic CCD Guide Hole Puncher Punching Machine For Glucose Testing Strips

Application

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, glucose testing strips, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

1. CCD Visual Recognition – Automatically aligns targets and executes punching with pinpoint accuracy.
2. Precision Performance – Error controlled within ±0.015 mm.
3. Enhanced Speed – Delivers holes in just 0.5 seconds, greatly accelerating production.
4. Touchscreen HMI – Intuitive operation reduces training and setup time.
5. Intelligent Lighting – Easily detects incomplete or blurred circles on various substrates.
6. Real-Time Punching Observation – Monitor on-screen or directly at the punching site.
7. Material Protection – Pressure foot holds sheets flat for distortion-free punching.
8. Adaptability – Processes challenging reflective or mirrored materials.
9. Advanced Imaging – Binary processing ensures accuracy in complex recognition.
10. Future-Proof System – Supports upgrades and software improvements for lasting performance.

Technical Parameters

---



Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

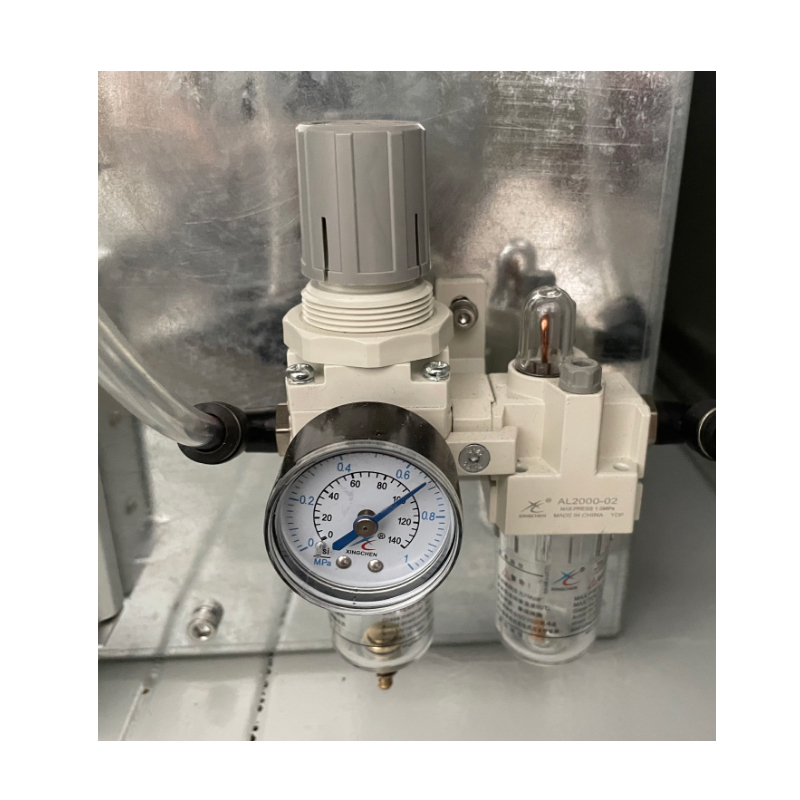

• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
