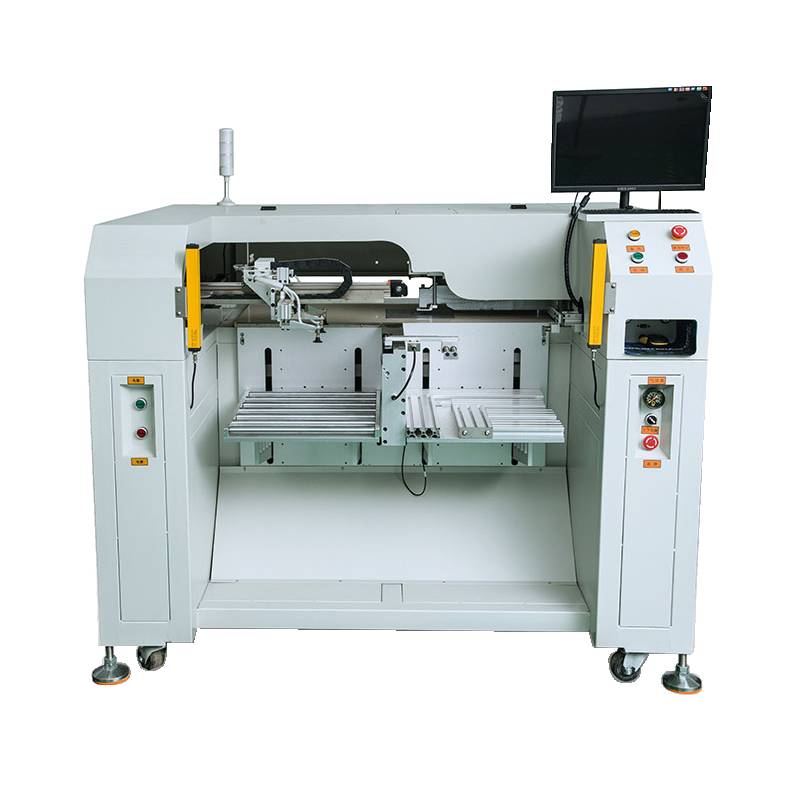

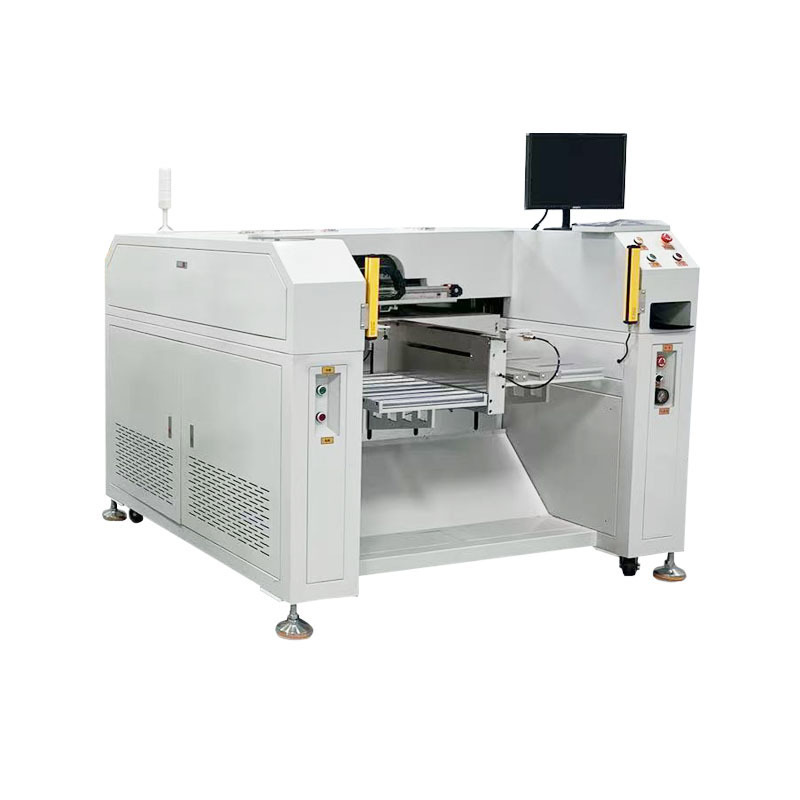

Fully Automatic CCD Guide Hole Puncher Punching Machine For Medical Labels

Application

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

1. Automated Punching System – Eliminates manual adjustment with CCD vision positioning.
2. Rapid Cycle Time – 0.5 seconds per hole boosts productivity up to 3× semi-auto methods.
3. Micron-Level Accuracy – Maintains punching error within ±0.015 mm.
4. Touchscreen Operation – Human-machine interface simplifies control and workflow setup.
5. Stable Punching – Clamping system flattens substrates during operation.
6. Specialized Lighting – Reliable recognition even on reflective or complex surfaces.
7. Live Punching Display – Watch the process on a large 19-inch computer screen.
8. Supports Difficult Materials – Works on films, semi-printed circles, and mirror-finish substrates.
9. Robust Processing Software – Binary image analysis guarantees recognition consistency.
10. Long-Term Support – System allows lifetime upgrades with strong technical assistance.

Technical Parameters

---



Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

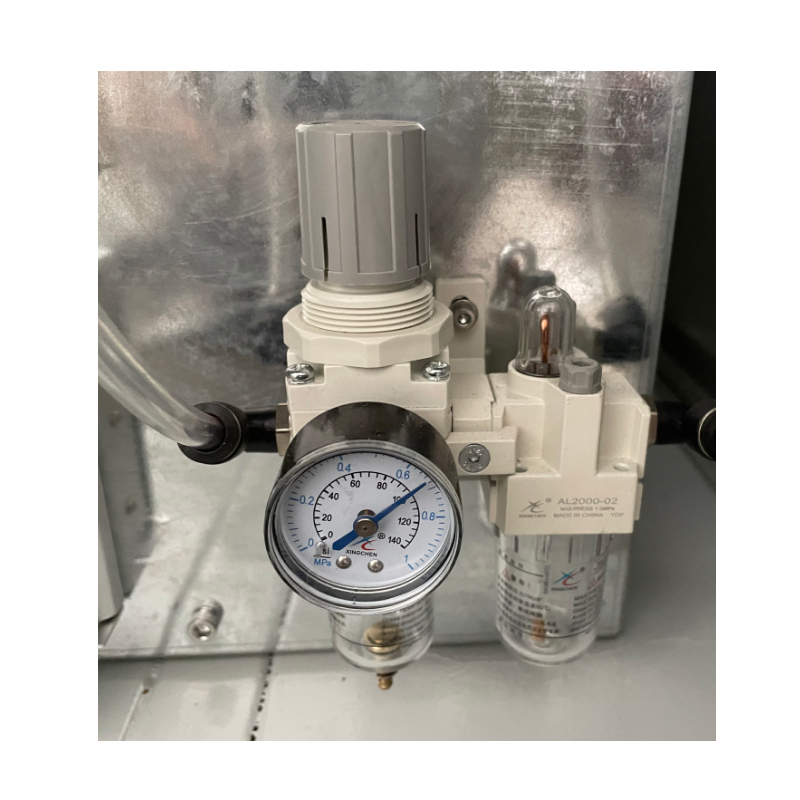

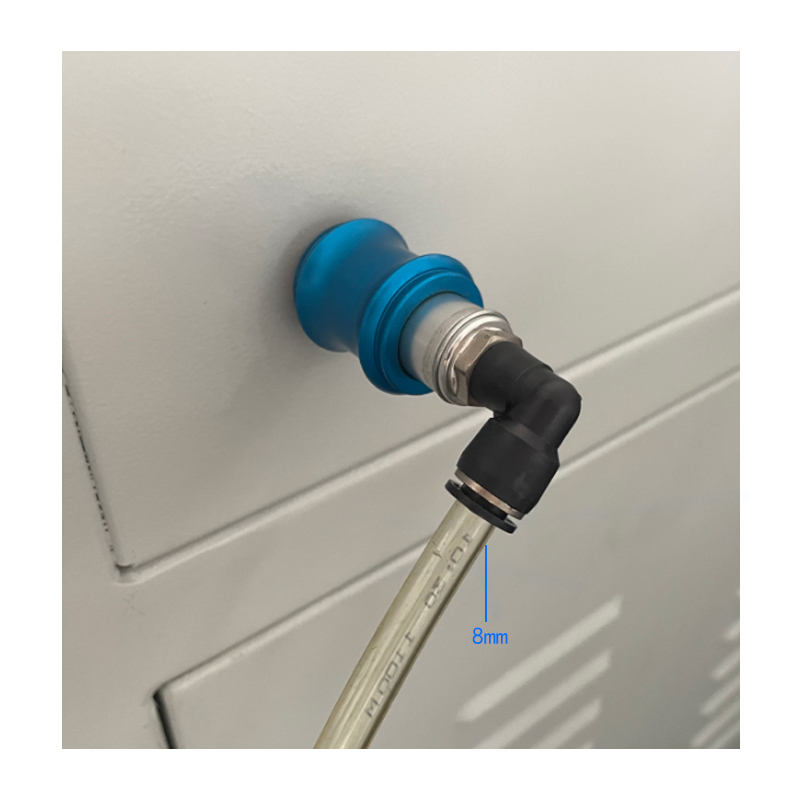

• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
