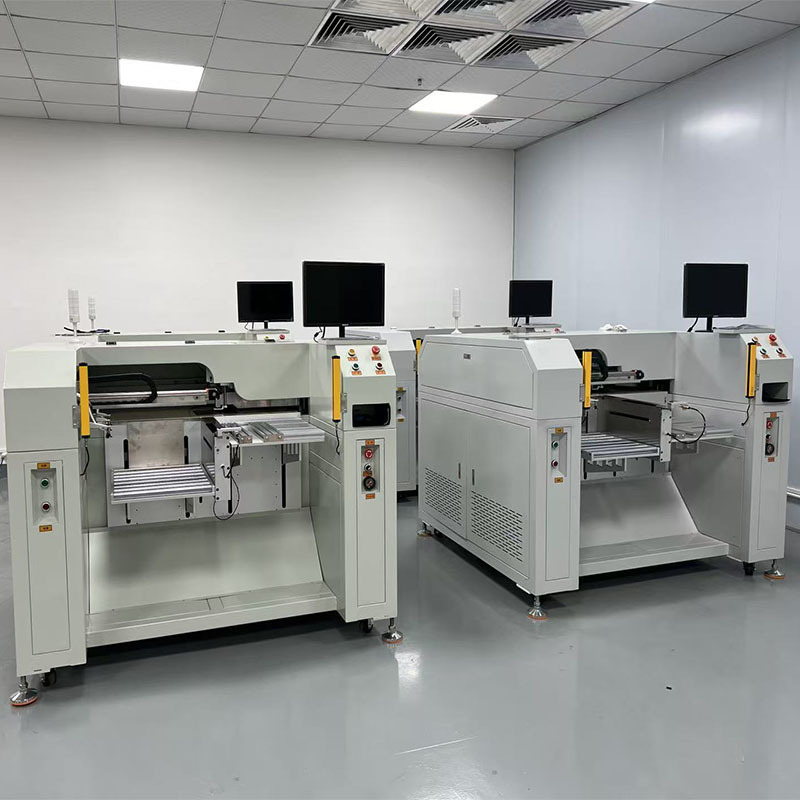

500*400mm Automatic CCD Camera Hole Punching Machine For Signs/Name Plates/Membrane Switches

Application

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

1. Fully Automatic CCD Positioning – Ensures flawless punching with an overall error of only ±0.015 mm.
2. High-Speed Performance – Average punching speed is 2–3× faster than semi-auto, completing each hole in just 0.5 seconds.
3. Accurate Target Recognition – Automatically identifies circular graphics and positions them for precise punching.
4. Material Stability – Press foot keeps films and sheets flat, ensuring consistency in every punch.
5. Smart Illumination System – Special light sources allow recognition of reflective or semi-printed materials.
6. User-Friendly Interface – Touchscreen control makes setup and operation simple and intuitive.
7. Real-Time Monitoring – Observe punching directly at the working area or on a 19-inch screen.
8. Flexible Adaptation – Handles unique materials, including mirror surfaces and incomplete prints.
9. Advanced Image Processing – Binary integrated method enhances recognition accuracy.
10. Upgradeable Software – Continuous updates keep the system modern and efficient.

Technical Parameters

---



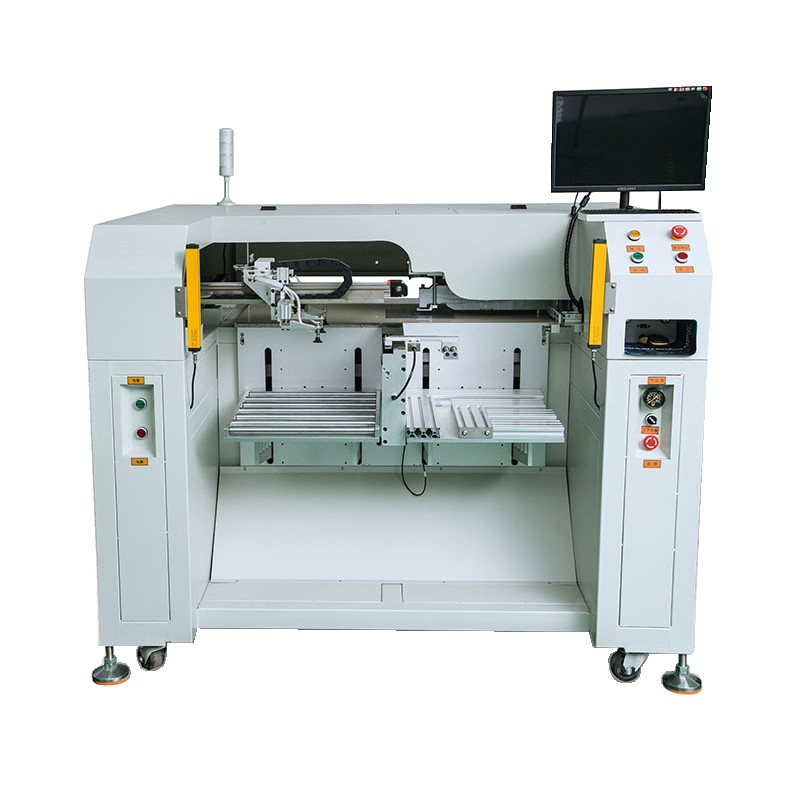

Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

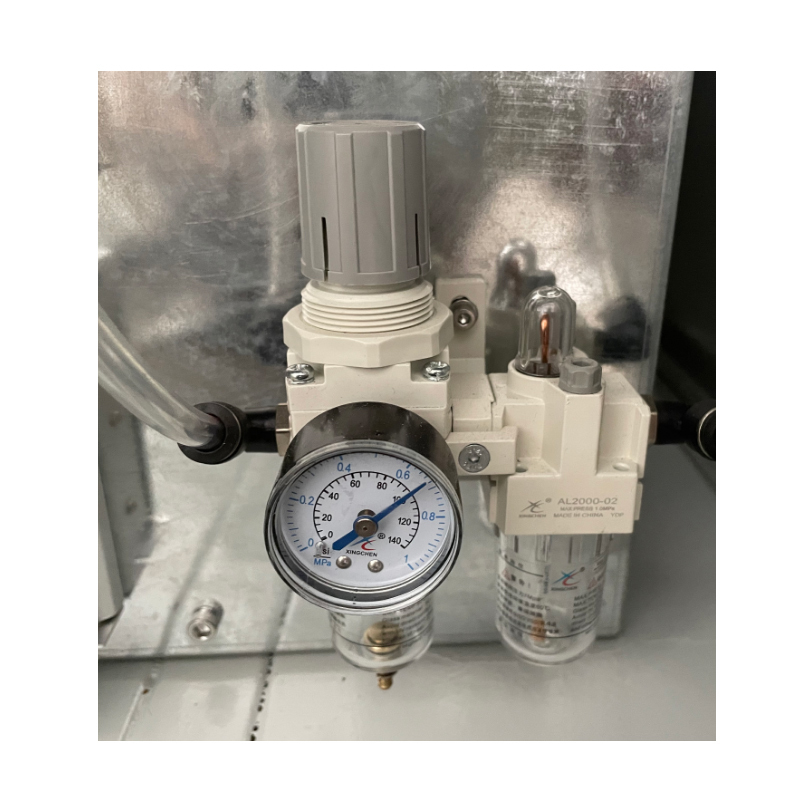

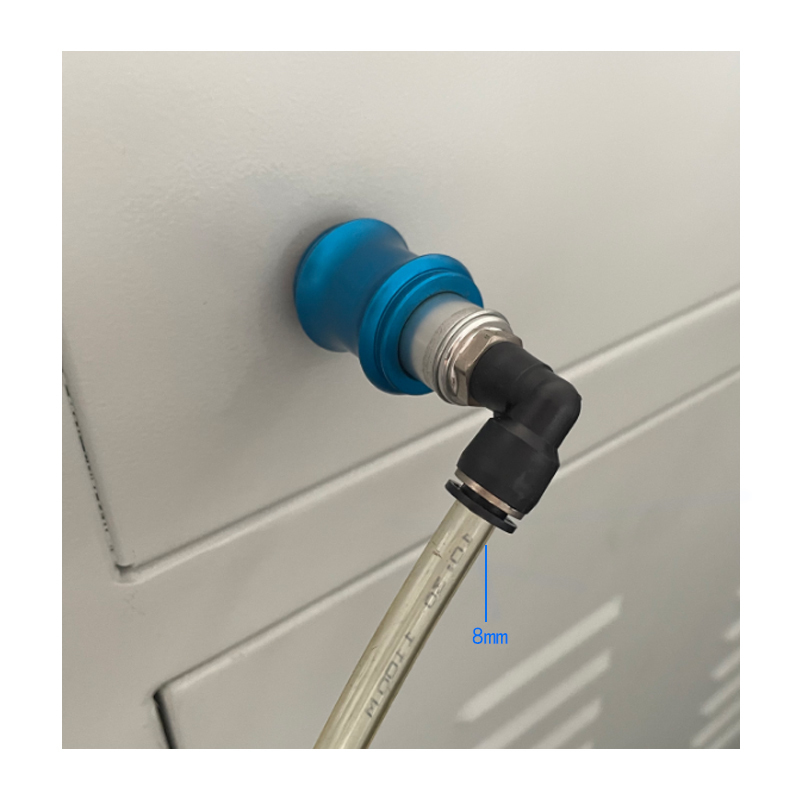

• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
