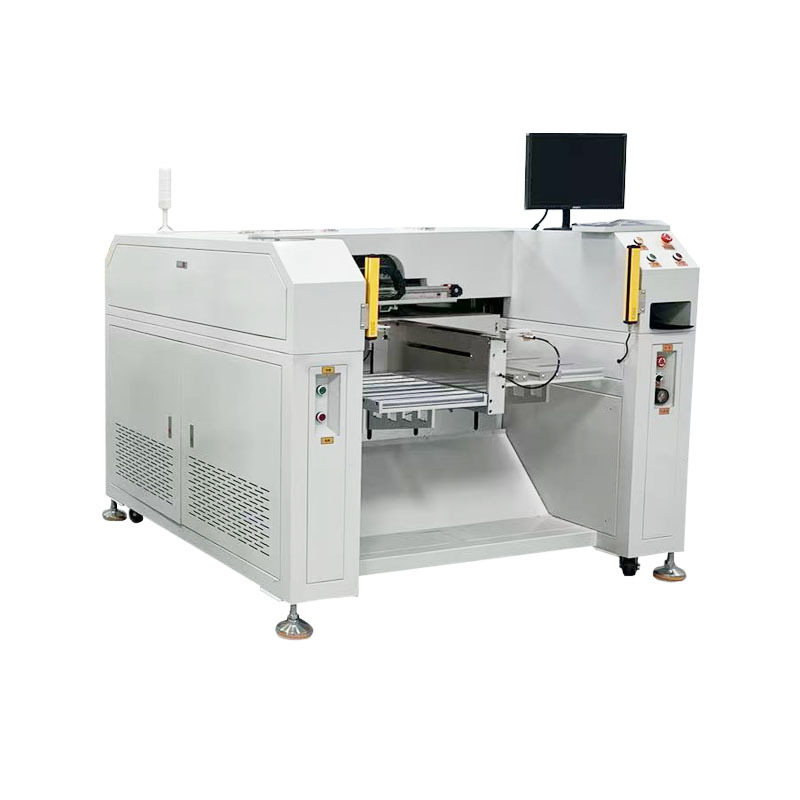

Fully Automatic CCD Guide Hole Punching Machine For Membrane Keyboard/Keypads/Nameplates

Application

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

1. CCD Vision Alignment – Automatic recognition and positioning of patterns for error-free punching.
2. High Precision – Maintains an overall punching error of ±0.015 mm.
3. Fast Operation – Delivers hole punching speed 2–3 times faster than manual punching, only 0.5 seconds per hole.
4. Stable Material Handling – Anti-drag system ensures substrates stay perfectly aligned during punching.
5. User-Friendly Control – Touchscreen human-machine interface simplifies operation with intuitive setup.
6. Advanced Lighting System – Special light source enables recognition of printed, unclear, semi-circles, or reflective mirror-like materials.
7. Real-Time Monitoring – Observe the punching process on a 19-inch display screen or directly at the punching position.
8. Enhanced Punching Accuracy – Equipped with pressure feet to flatten films during punching, ensuring consistency.
9. Smart Image Processing – Utilizes binary integrated image processing for accurate shape recognition.
10. Customizable Settings – Supports special configurations to meet diverse customer requirements.
11. Upgradeable Software – Computer system supports free lifetime upgrades and professional technical support.
12. Wide Material Adaptability – Efficiently processes films, special printing materials, and even reflective surfaces.

Technical Parameters

---



Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
