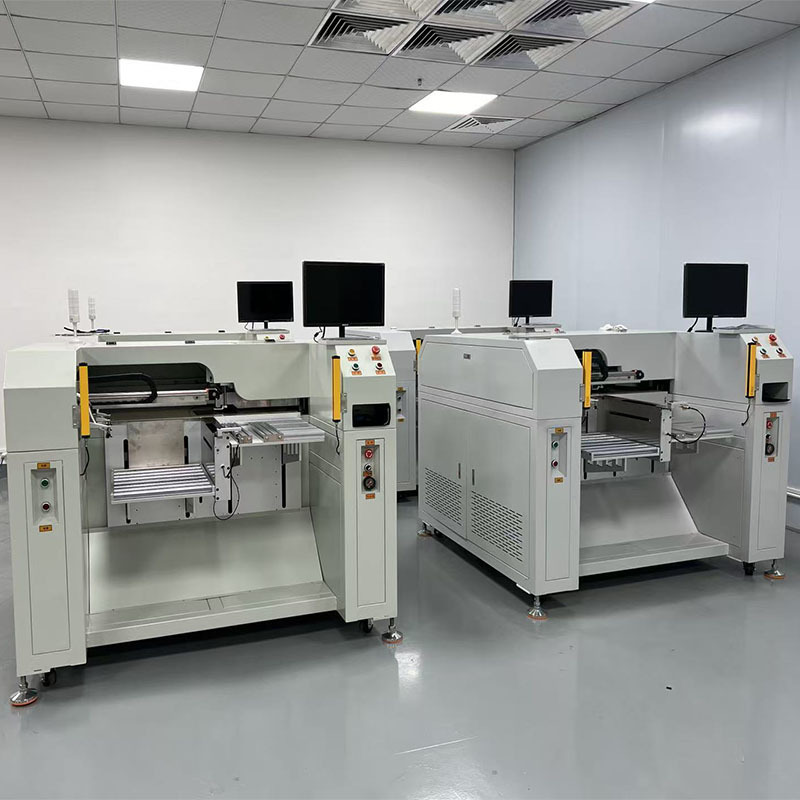

Automatic CCD Guide Hole Punching Machine For Polyester Polycarbonate PET/PC/PVC/IMI/IMD

Application

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Product Features

High productivity and precision, automatic loading, CCD positioning punching and unloading, achieving unmanned supervision production line.

Automatically move to punch according to coordinates set, it reduces the manual easy & repeated action, 1 people can supervise 2-3 lines.

1. Adopts 19 inch monitor, avoiding the image being deformed.

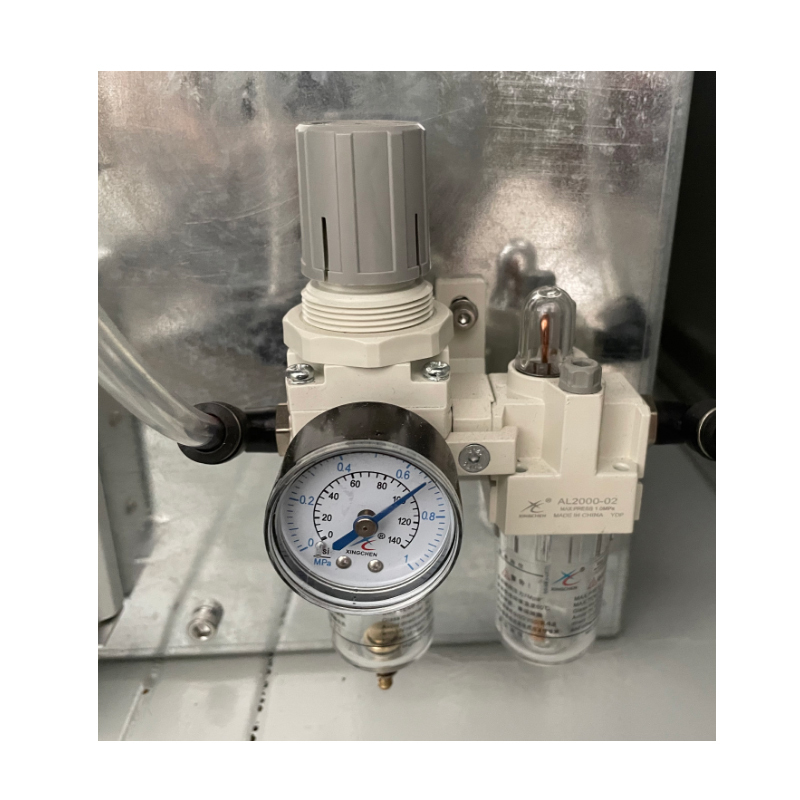

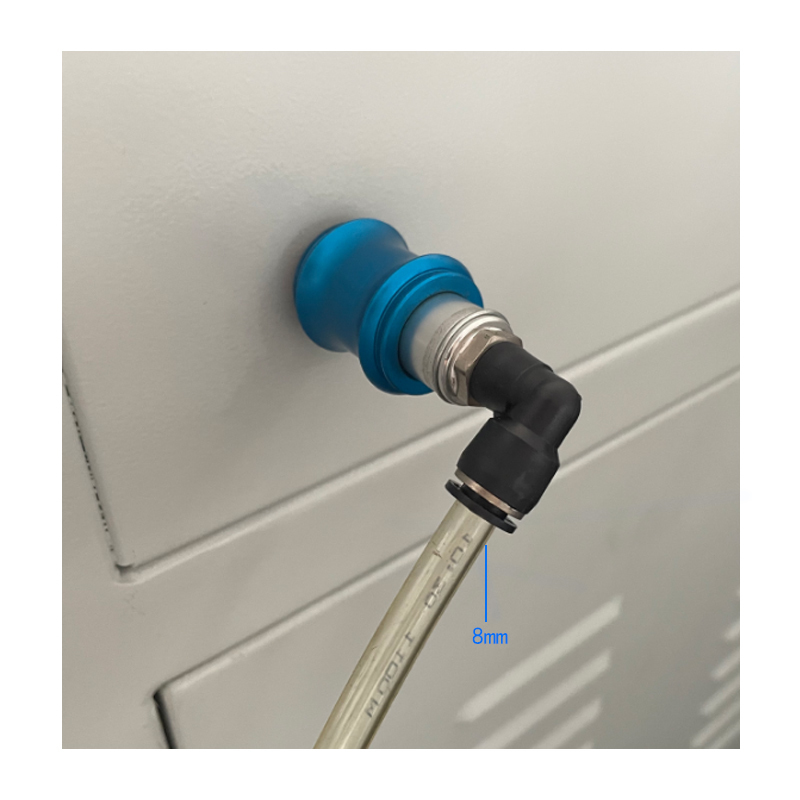

2. Adopts Pneumatic & mechanical mechanisms, with stable performance and strong adaptability.
3. It has a variety of light source selection functions to make the image clearer.

Use single-chip microcomputer technology to process image and control.

Technical Parameters

---
