Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:

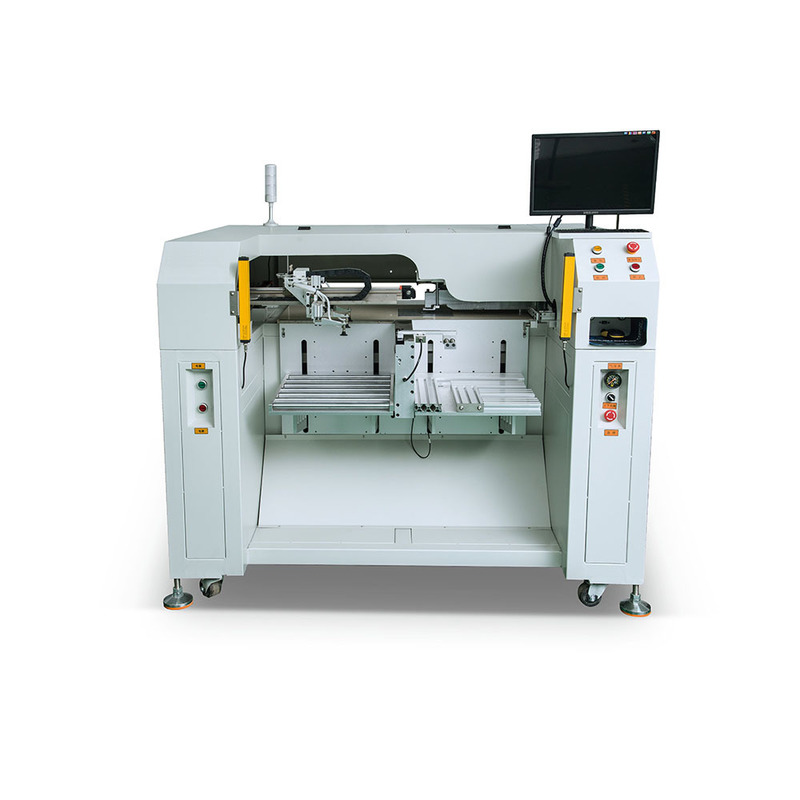

SLTJ-5080
video
Application
Composite sheet, membrane switch, nameplates, conductive film, flexible circuits, FPC, PC, PC, PVC, PET, film and other flexible sheet material with many holes.
Product Features
High productivity and precision, automatic loading, CCD positioning punching and unloading, achieving unmanned supervision production line.
Automatically move to punch according to coordinates set, it reduces the manual easy & repeated action, 1 people can supervise 2-3 lines.
Use single-chip microcomputer technology to process image and control.
Technical Parameters
| Model |
SLTJ-5080 |
|
Hole diameter |
Φ1 mm-Φ5mm |
|
Max material size |
500*800mm |
|
Max punching force |
7kN |
|
Multiple light sources |
white & colors |
|
Material thickness |
0.1-1.2mm(depend on material) |
|
Punching precision |
±0.02mm |
|
Punching speed |
0.35s/hole(exclude loading & unloading time) |
|
Power |
1.5kW |
|
Voltage |
AC200V~240V |
|
Storage height |
200 mm |
|
Dimension |
L1620mm x W1420mm x H1300mm |
|
Weight |
450kg |
