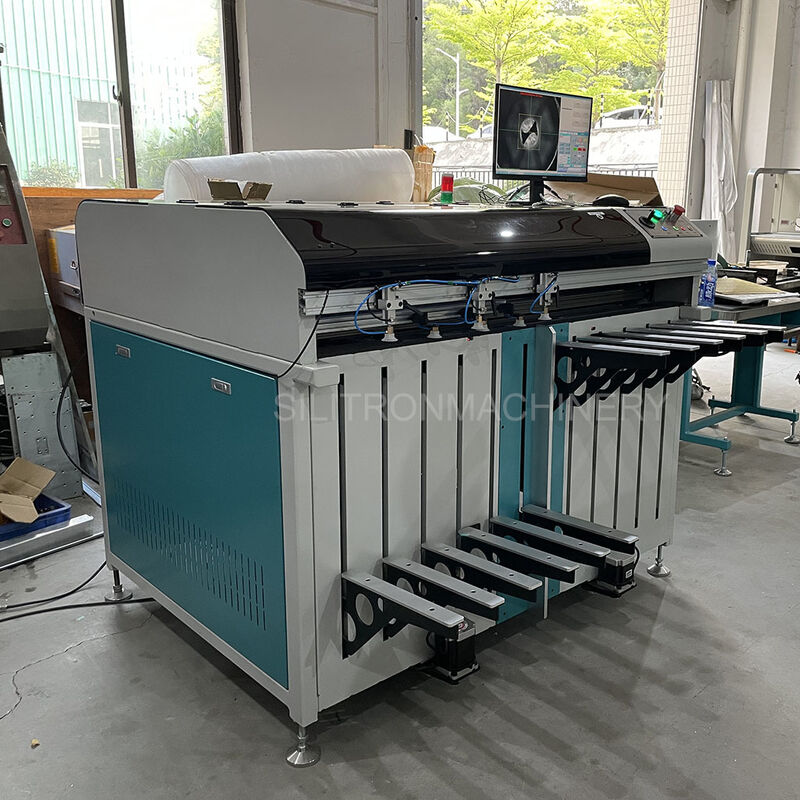

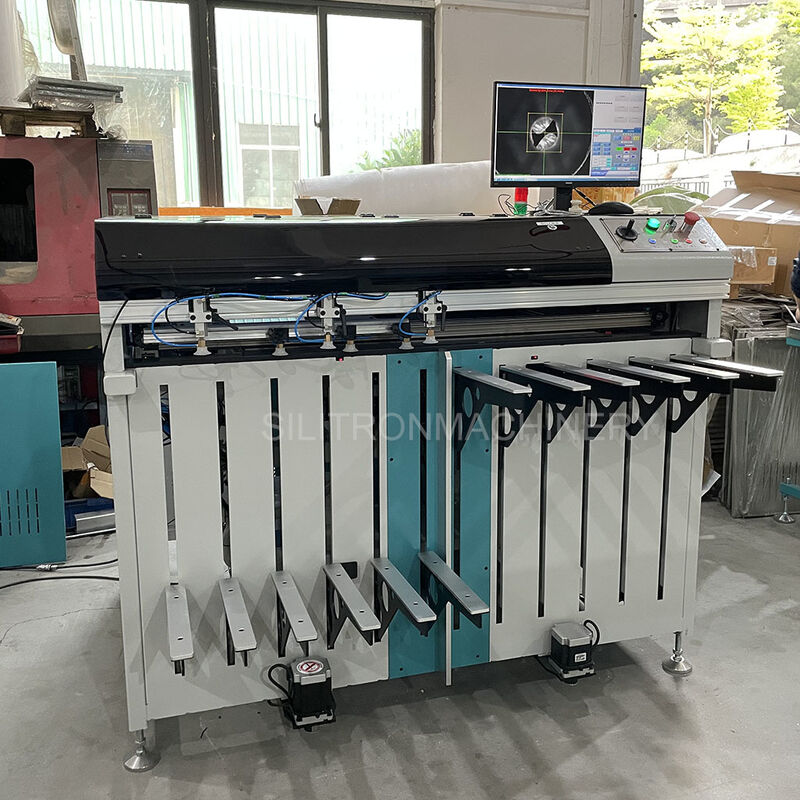

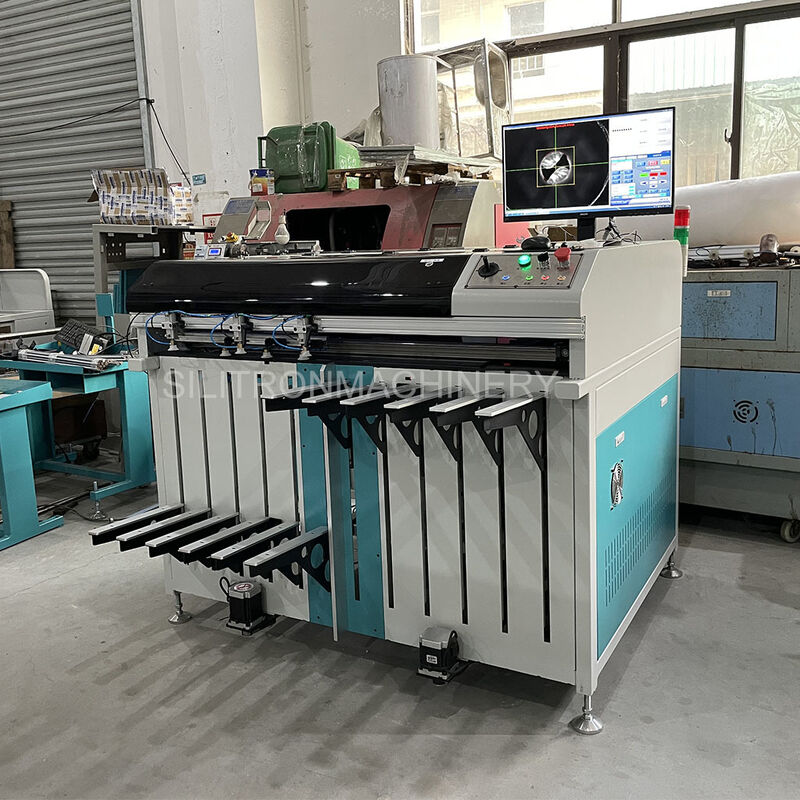

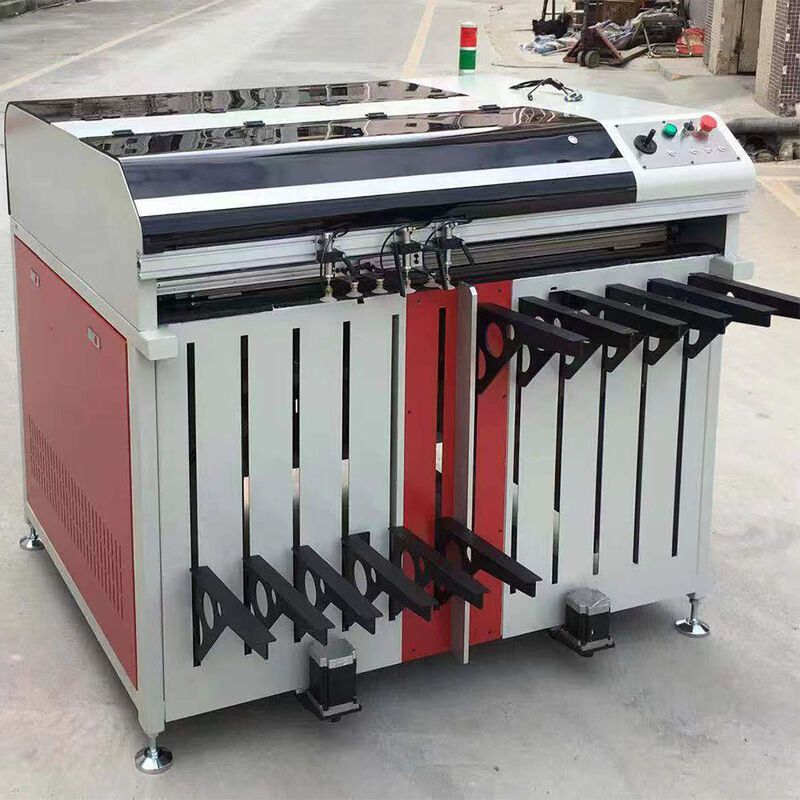

Automatic CCD Guide Hole Drilling Machine for PCB, FR4
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTJ-6520
Application Fields
It is suitable for single-layer rigid PCB, FR4 boards, acrylic sheets, and other fragile plastic sheet materials,
Product Features
1. CCD Image Precise Positioning.
2. CCD Automatic Positioning + Secondary Compensation.
3. High Drilling Accuracy up to ±0.02 mm.
4. Automatic Feeding System.
5. NC Servo Feeding.
6. Fast Automatic Drilling
7. Advanced Target Recognition
8. Three-Color CCD Light Source.
9. Multi-Hole & Multi-Side Drilling.
Technical Parameters
| Model |
SLTD-6520 |
|
Hole diameter |
Φ1 mm-Φ5mm |
|
Max material size |
650 * 520mm (MAX) |
|
Min material size |
260*100mm |
|
Multiple light sources |
white & colors |
|
Material thickness |
0.1-1.2mm(depend on material) |
|
Punching precision |
±0.02mm |
|
Punching speed |
0.3s/hole(exclude loading & unloading time) |
|
Air pressure requirement |
0.4~0.8Mpa |
|
Power supply |
AC 220V 60HZ 1KW |
|
Storage height |
280 mm |
|
Dimension |
L1460mm x W1500mm x H1200mm |
|
Weight |
600kg |
Main Components
- Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
- Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
- Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
- Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
- Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
