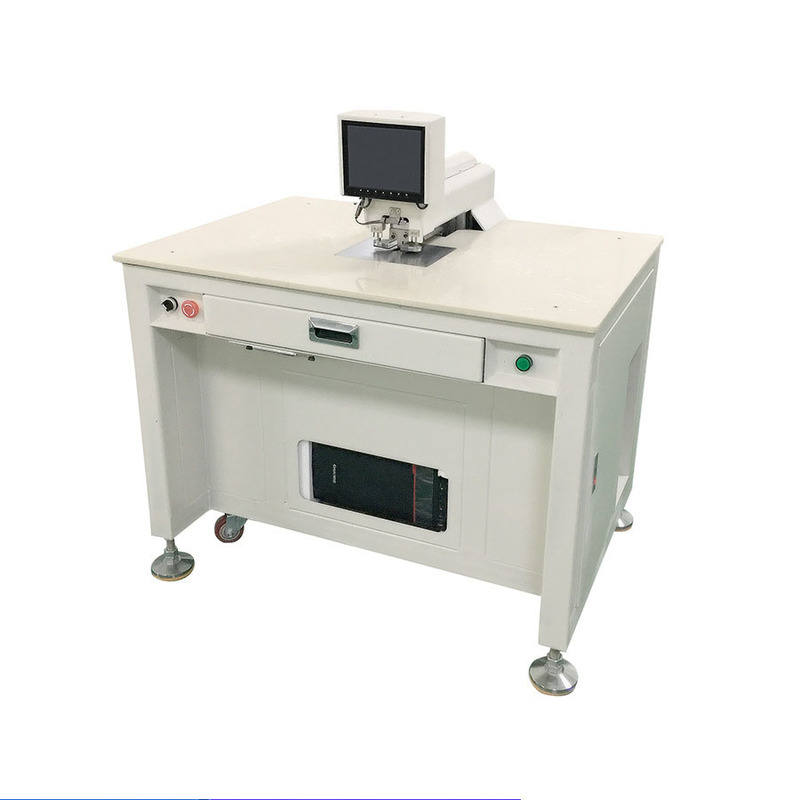

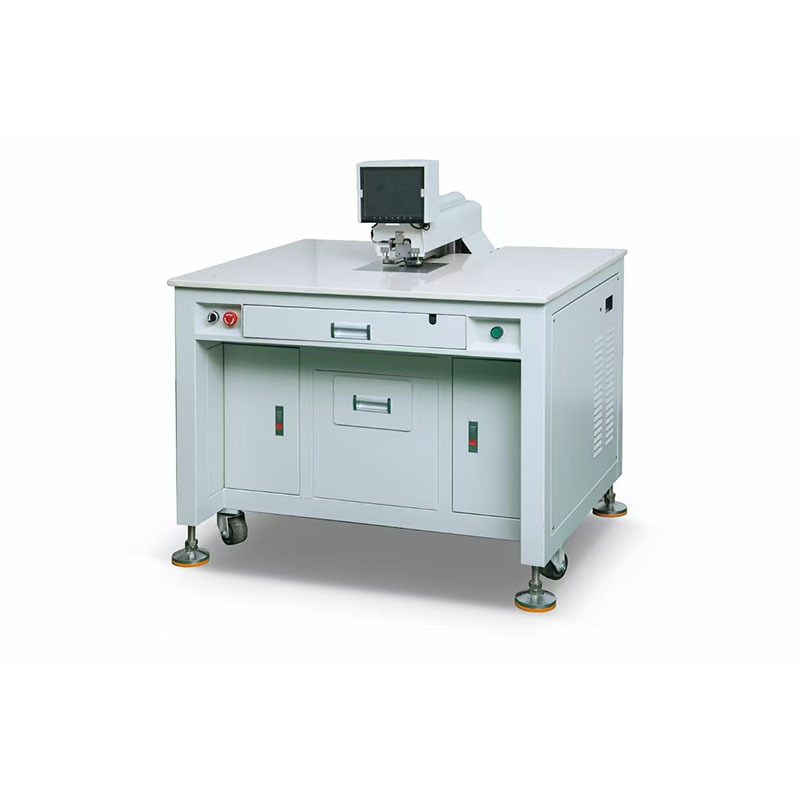

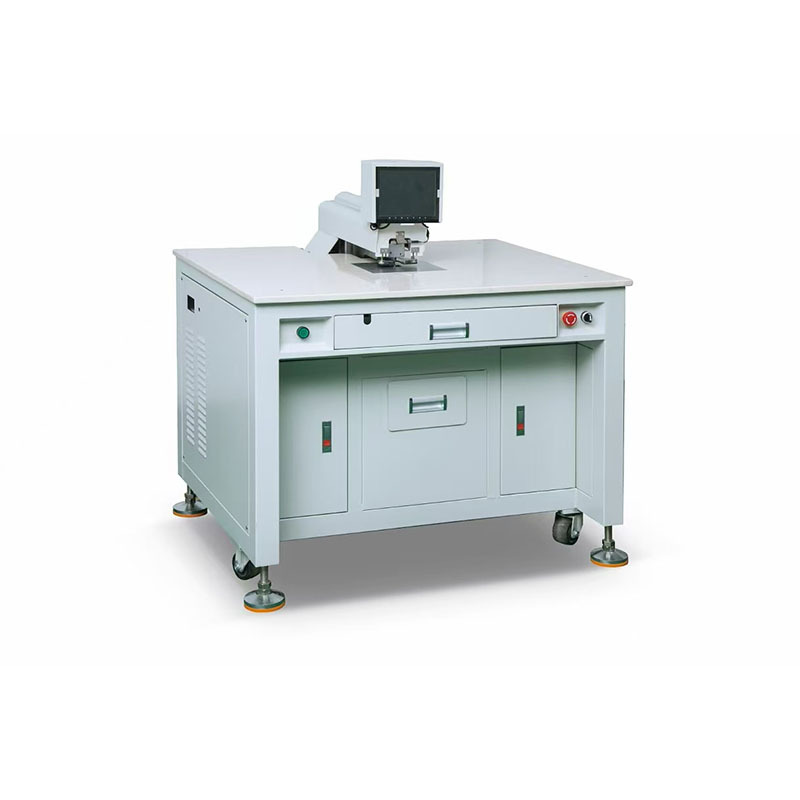

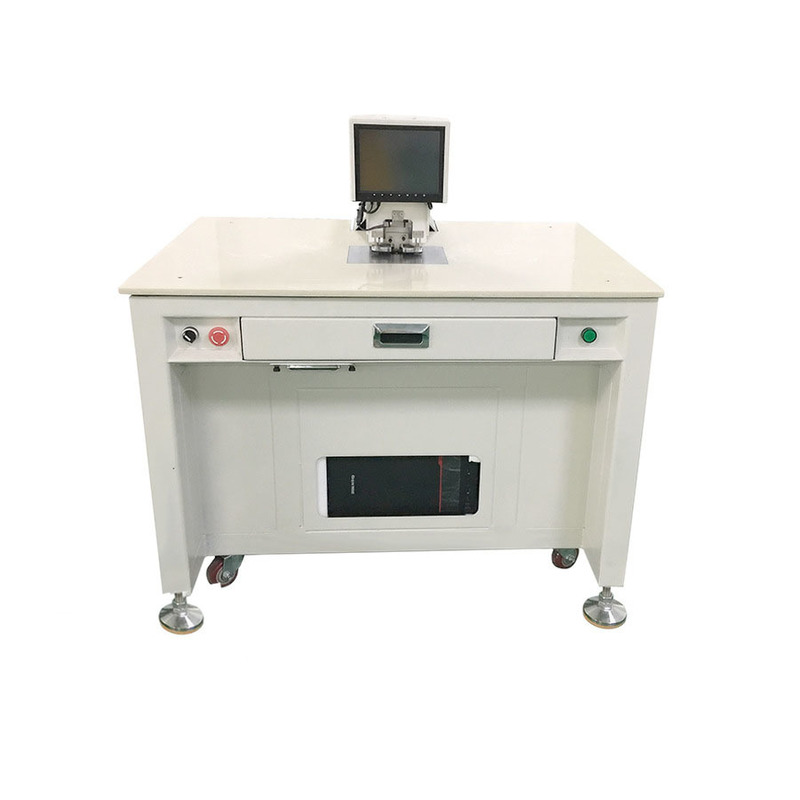

CCD Guide Hole Punching Machine for Metal & Stainless Steel Nameplates
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
video
High-precision CCD Hole Punching Machine For Metal And Stainless Steel Nameplates.
The SILITRON CCD Guide Hole Punching Machine is a precision punching solution specially developed for metal labels, nameplates and thin metal substrates. Using CCD vision technology, the machine automatically recognizes printed graphics, registration marks or target patterns and accurately positions the punching tool before each hole is punched.
1. ±0.015 mm High Precision
The SLTZ15 provides punching precision of up to ±0.015 mm, making it suitable for precision metal labels and nameplates where accurate hole positioning is important.
2. Fast Punching Speed
The average punching cycle is approximately 0.4 seconds per hole, helping manufacturers significantly improve production efficiency compared with manual punching.
3. CCD Automatic Positioning
The CCD camera captures the target graphic or registration mark and automatically calculates its position before punching.
4. Designed for Reflective Metal Materials
The lighting system is designed to improve image recognition on different surfaces, including reflective aluminum and stainless steel.
5. Flexible Punching Tools
The machine supports customizable hole diameters from approximately Φ1–Φ5 mm, depending on the application and tooling configuration.
6. Suitable for Thin Metal Labels
The SLTZ15 can process substrate thicknesses from approximately 0.01–1 mm, depending on material characteristics.
7. Job Program Memory
Frequently used punching programs can be stored and recalled, reducing setup time when producing repeat orders.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |
| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
- Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
- Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
- Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
- Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
- Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
Who Is This Machine For?
The SILITRON SLTZ15 is an excellent solution for manufacturers producing:
- Metal nameplates
- Stainless steel labels
- Aluminum labels
- Anodized aluminum nameplates
- Industrial identification plates
- Automotive nameplates
- Electronic equipment labels
- Precision metal tags
It is particularly valuable when the position of the punched hole must follow the printed graphic or target mark, rather than simply being punched at a fixed mechanical coordinate.
