Semi Auto CCD Guide Hole Punching Machine
>
SLTZ15 CCD Target Precision Punch/Drill

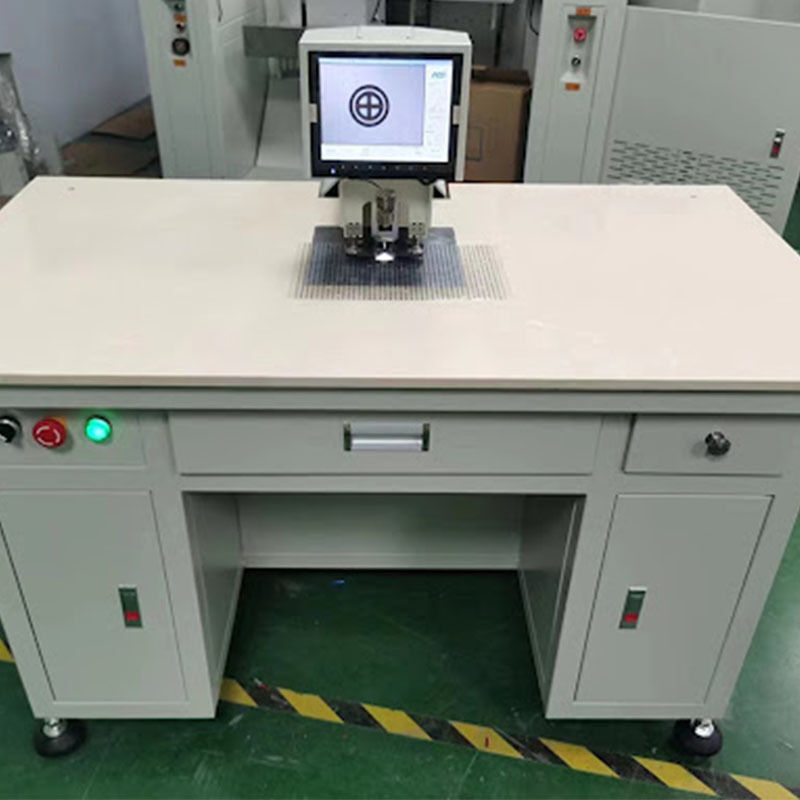

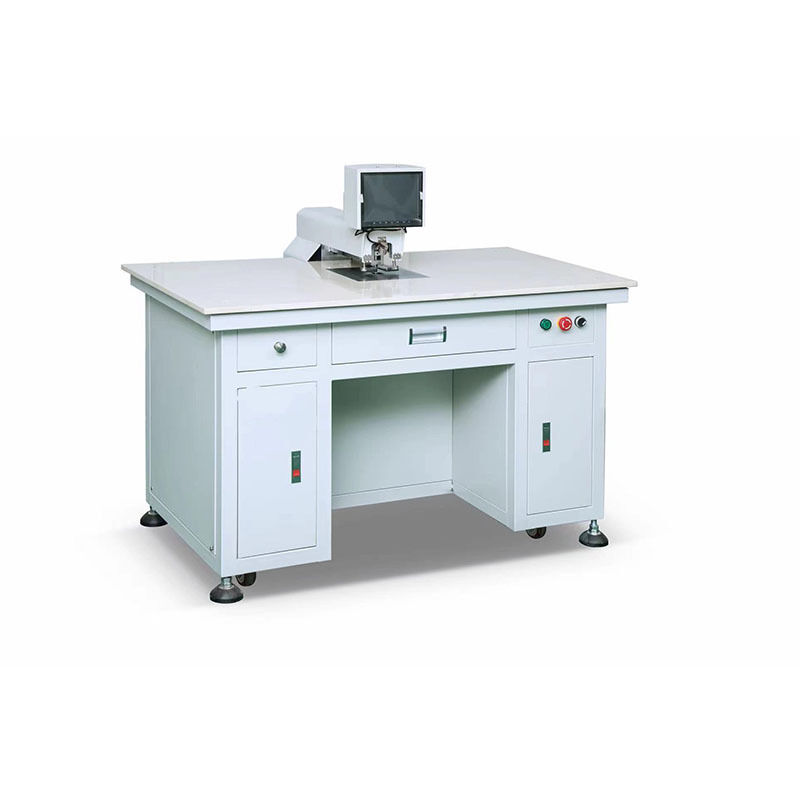

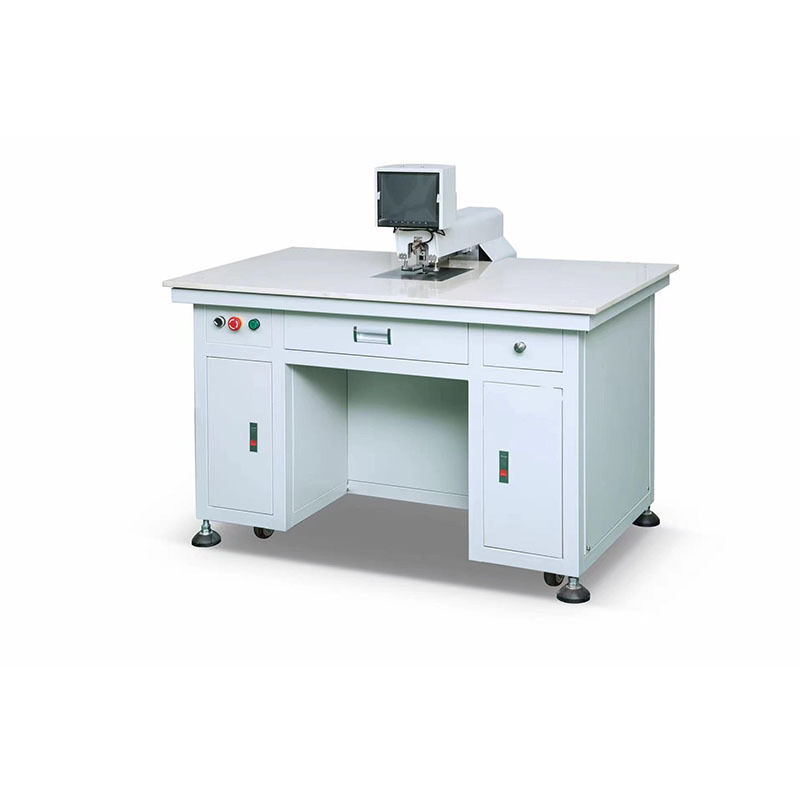

SLTZ15 CCD Target Precision Punch/Drill
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
Contact Us
Request A Quote
Product Details
Material Of Punch Die:
SKD11/61 Quenched
Punch Die Life:
1 Million Cycles
Light Source:
White And Colors
Hole Diameter:
Φ1－Φ5mm(customizable)
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1360 x W880 x H1350 mm
Delivery Time
7 days
Payment Terms
T/T
RELATED PRODUCTS
CONTACT US
Product Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, nickel nameplates, electroformed nameplates, and other
materials.
Machine Features
1. Automatic target search with fast lock-down and
high precision
2. Servo motor control system for rapid and accurate
movement
3. Extremely fast punching action
4. Transparent holding plate for clear material
positioning
5. Strong steel operation tabletop for lasting usage
6. Illumination lamp ensures target is bright for
viewing
7. Quality punch tool that is inexpensive and durable
8. User-friendly control interface
9. Reliable German pneumatic system with minimal
maintenance
10. Low radiation colors 10” TFT LCD monitor.
Technical Parameter
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |
| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
Workable Marks
Equipment Main Components
- Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
- Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
- Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
- Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
- Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
