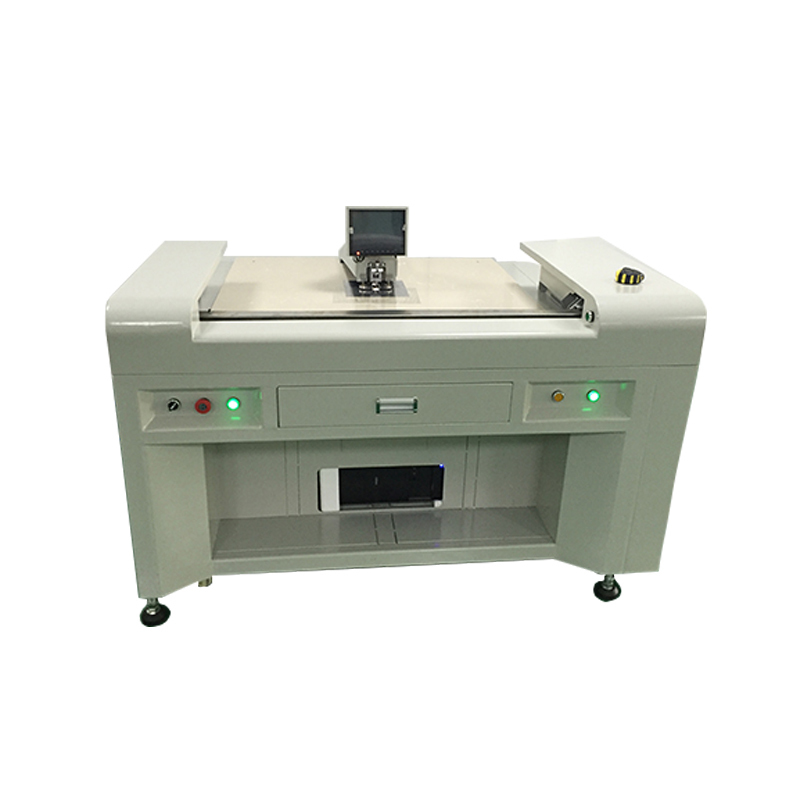

Automatic Manipulator CCD Guide Hole Punching Machine for Automotive Aluminum Badge

Applicable Scope

Stainless steel, nickel sheet, copper sheet, electronic membrane switch, conductive film, PVC/PET/PEC/flex PCB circuit board, FPC, film brown film black film: lMD/IML.mobile phone panel/mobile phone button, film, Signs, nameplates, automotive badge, aluminum substrates and other thin metals automatically punch positioning holes.

Machine Features

1. Fast punching speed, high production efficiency.

2. CCD finds images within the visual range, ensuring stable and efficient image acquisition.

3. High degree of automation; users only need to place the workpiece in the corresponding position, eliminating the need for manual alignment in the CCD area.

4. Utilizes embedded system combined with PC control; the controller adopts DSP chip, which can be directly soldered onto the circuit board, ensuring safety and reliability without the need for a PC. The punching software is controlled by the PC, and software upgrades only require upgrading the punching software, ensuring high efficiency and performance.

• Labor-saving: One person can supervise 3-4 machines.
• Efficiency improvement: More than 40% increase compared to manual labor.
• Cost-effectiveness: Requires less labor without long-term labor consumption.
• Silent operation: Motor-driven punch head, low vibration.
• Stable quality: Unaffected by fluctuations in air pressure.

Workable Marks
