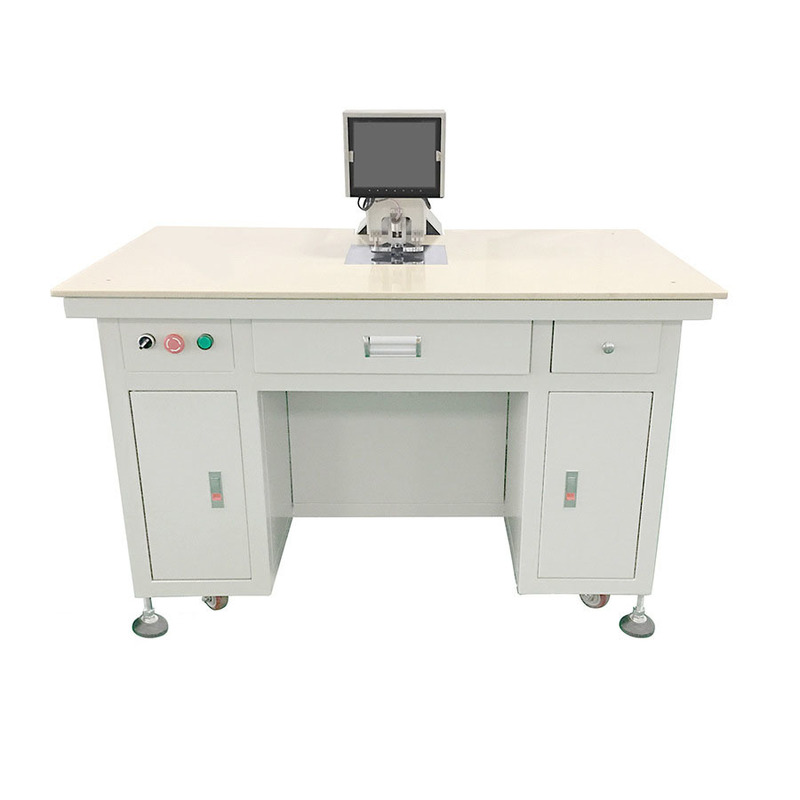

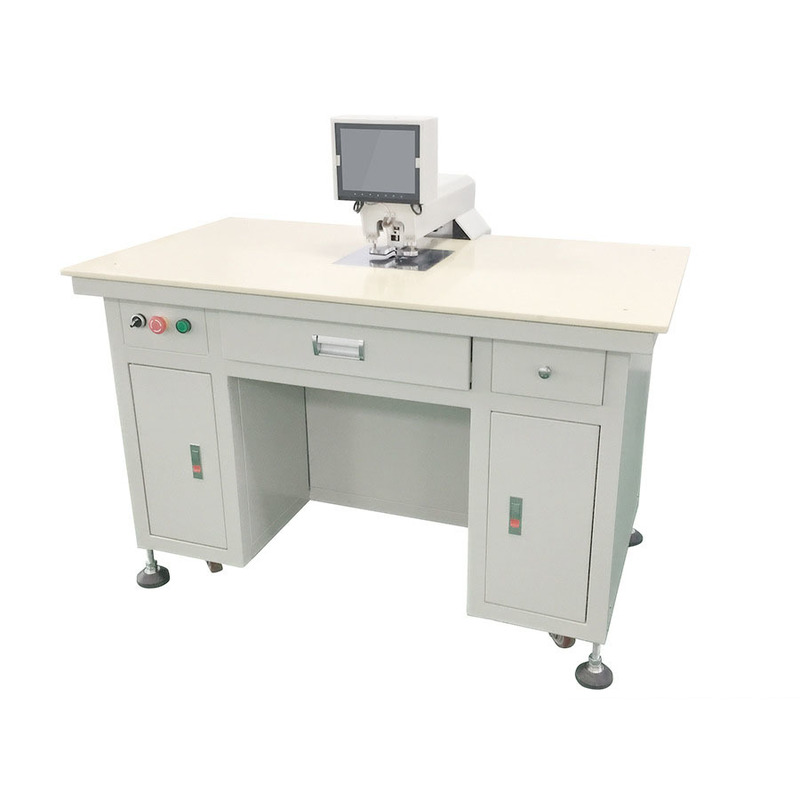

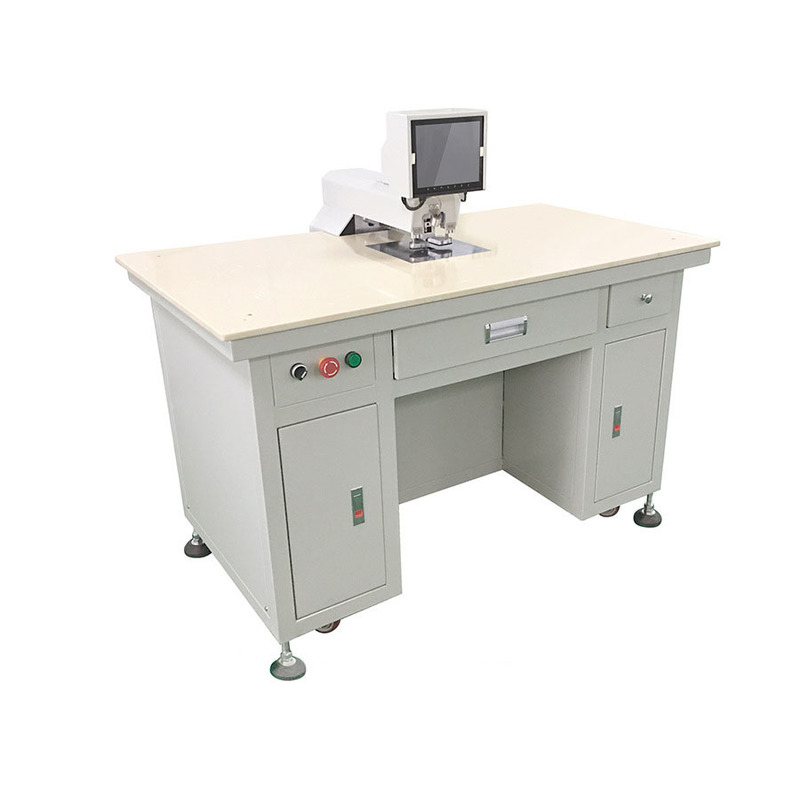

Semi-auto CCD Hole Punching Machine For Flexible Printed Circuits/Vehicles Panel

Semi-auto CCD Hole Punching Machine For Flexible Printed Circuits/Vehicles Panel

Place of Origin:

China

Brand Name:

SILITRON

Certification:

CE

Model Number:

SLT15

CONTACT US
Request A Quote
Product Details
Precision:
±0.015mm
Speed:
0.35s/hole
Substrate Thickness:
0.01-1mm(base On Material)
Material Of Punch Die:
SKD11/61 Quenched
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1360 x W880 x H1350 mm
Payment Terms
T/T
Supply Ability
30 per month
Product Description
Applicable Industries

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Semi-auto CCD Hole Punching Machine For Flexible Printed Circuits/Vehicles Panel 0


Machine Features

Large Marble Work Area – Stable and vibration-free platform suitable for all types of sheets.

CCD Automatic Alignment & Punching – Detects targets and punches holes accurately without manual adjustment.

High Accuracy – Overall error ≤ 0.02 mm for consistent and precise positioning.

Rapid Hole Processing – Each hole punched in just 0.35 seconds, significantly faster than manual methods.

Advanced Light Recognition – Special light sources automatically recognize circular and patterned targets.

User-Friendly HMI – Touchscreen interface enables simple operation and quick setup.

Real-Time Observation – Monitor punching directly or via the 8-inch computer display.

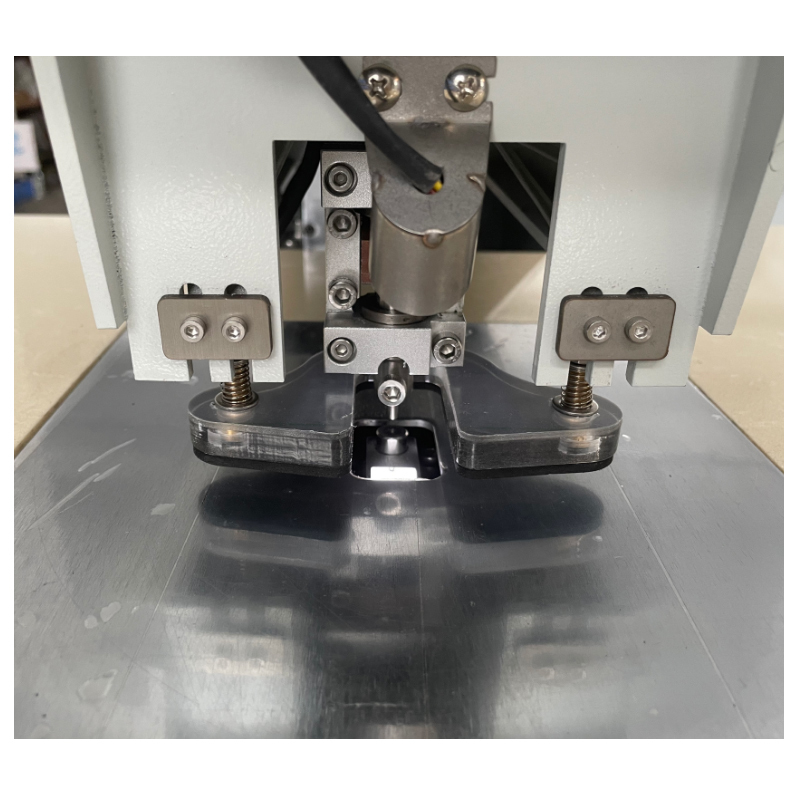

Stamper-Assisted Punching – Flattened material ensures consistent hole accuracy.

Upgradeable & Supported Software – System can be updated for lifetime performance and receives professional technical support.


Technical Parameter

Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N

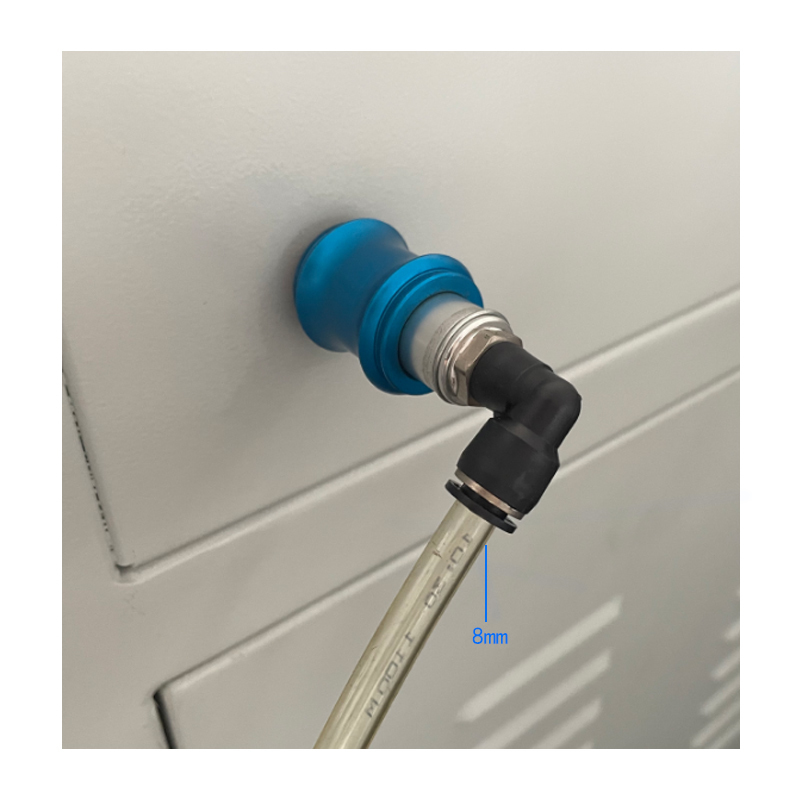

Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Hole diameter Φ1-Φ5mm(customizable)
Light source white and colors




Workable Marks

Semi-auto CCD Hole Punching Machine For Flexible Printed Circuits/Vehicles Panel 1  Semi-auto CCD Hole Punching Machine For Flexible Printed Circuits/Vehicles Panel 2


Main Components

  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

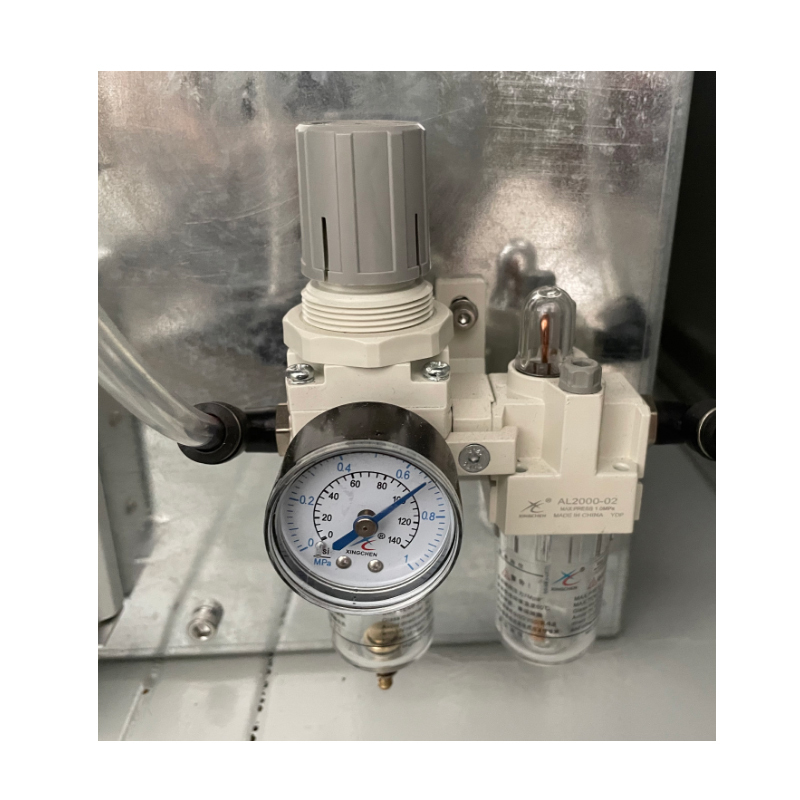

  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
