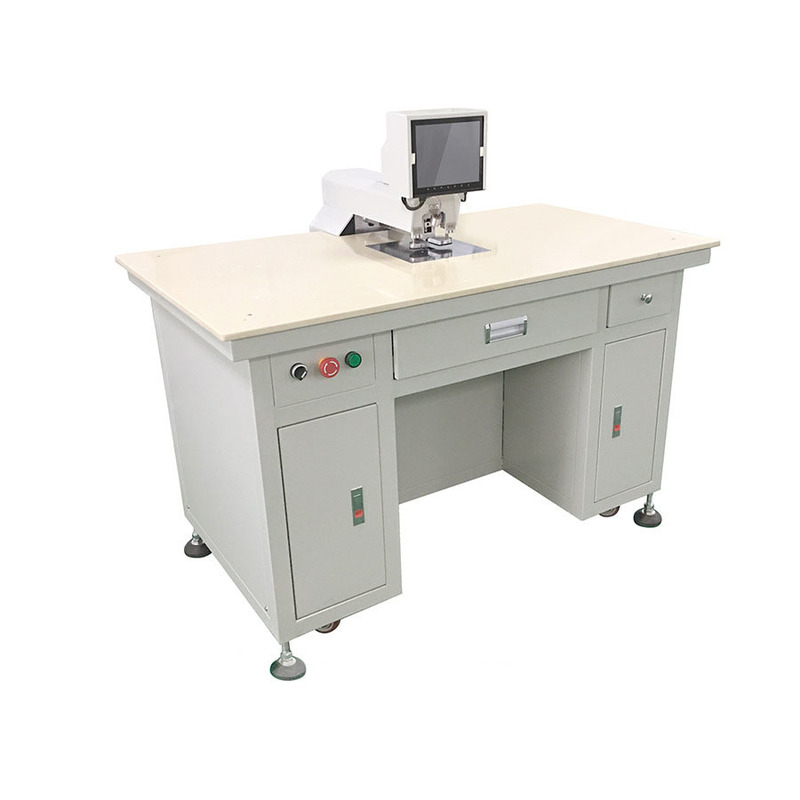

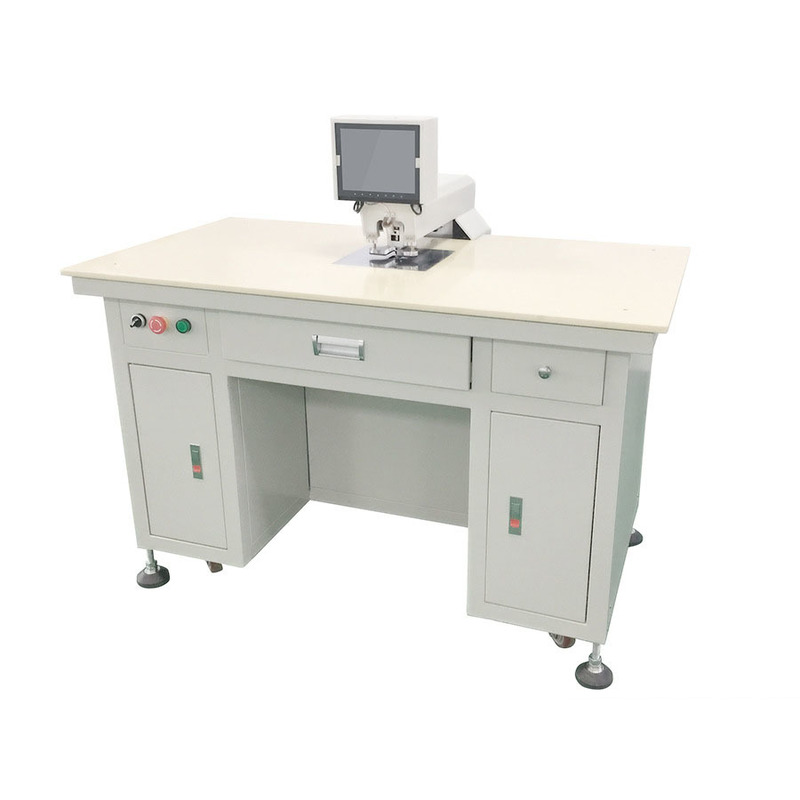

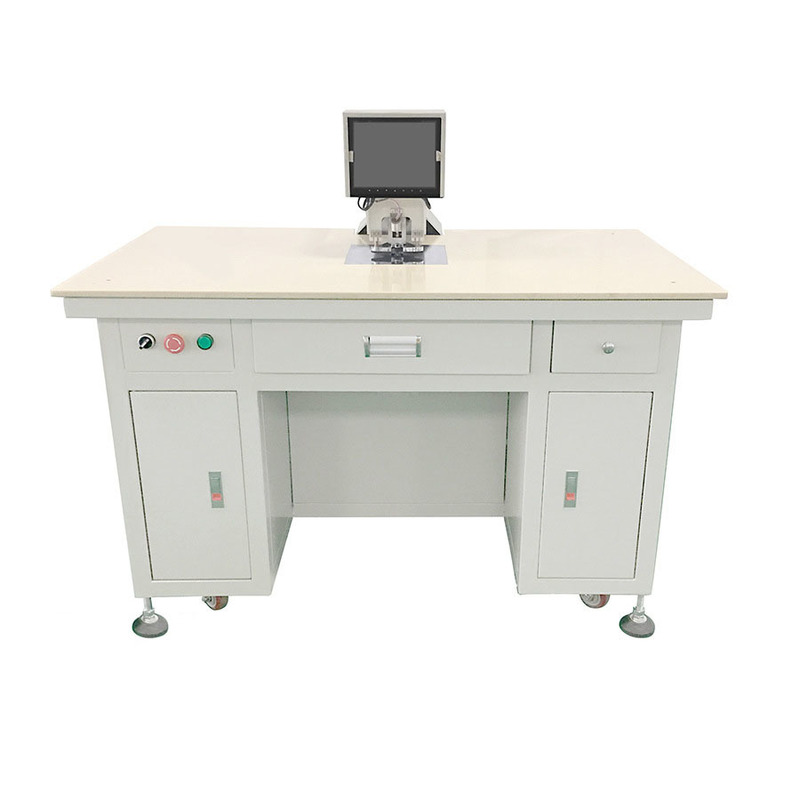

Semi-auto CCD Hole Punching Machine For Graphic Overlays/Self-Adhesive Label
Semi-auto CCD hole punching machine
CCD hole punching machine for graphic overlays
Self-adhesive label hole punching machine
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLT15
Semi-auto CCD hole punching machine
,CCD hole punching machine for graphic overlays
,Self-adhesive label hole punching machine
-
Large Marble Work Area – Stable and vibration-free platform suitable for all types of sheets.
-
CCD Automatic Alignment & Punching – Detects targets and punches holes accurately without manual adjustment.
-
High Accuracy – Overall error ≤ 0.02 mm for consistent and precise positioning.
-
Rapid Hole Processing – Each hole punched in just 0.35 seconds, significantly faster than manual methods.
-
Advanced Light Recognition – Special light sources automatically recognize circular and patterned targets.
-
User-Friendly HMI – Touchscreen interface enables simple operation and quick setup.
-
Real-Time Observation – Monitor punching directly or via the 8-inch computer display.
-

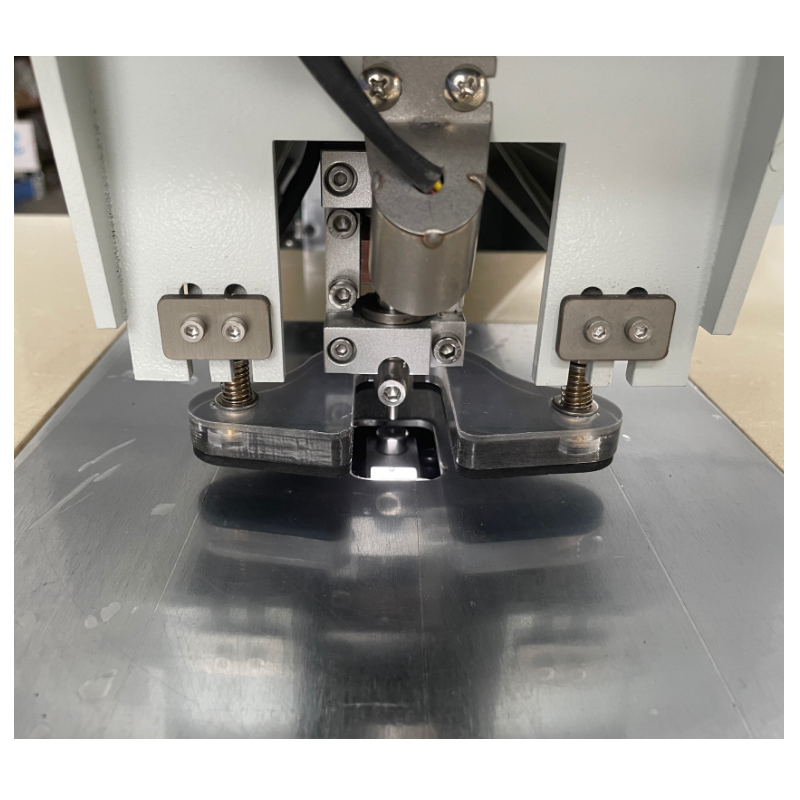

Stamper-Assisted Punching – Flattened material ensures consistent hole accuracy.
-
Upgradeable & Supported Software – System can be updated for lifetime performance and receives professional technical support.
| Model | SLT15 |
| Dimension | L1250 x W780 x H1150mm |
| Weight | 200KG |
| Table size | L1250 x W770mm |
| Punching force | 2500N |

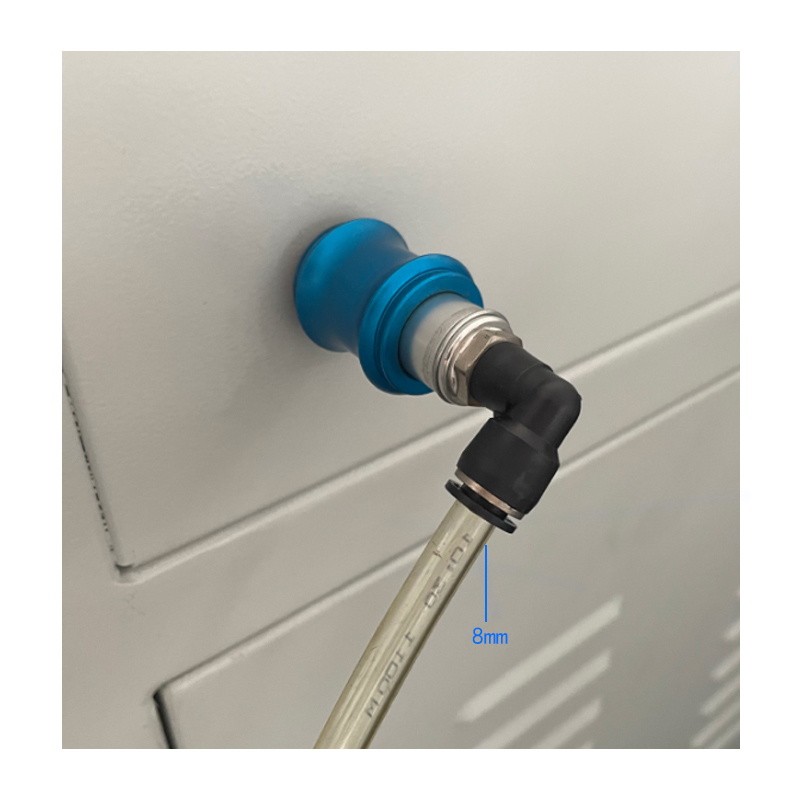

| Air pressure | 0.4~0.8Mpa |
| Voltage | AC 220V-240V 50HZ |
| Power | 0.4kW |
| Precision | ±0.015mm |
| Hole diameter | Φ1－Φ5mm(customizable) |
| Light source | white and colors |
- Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

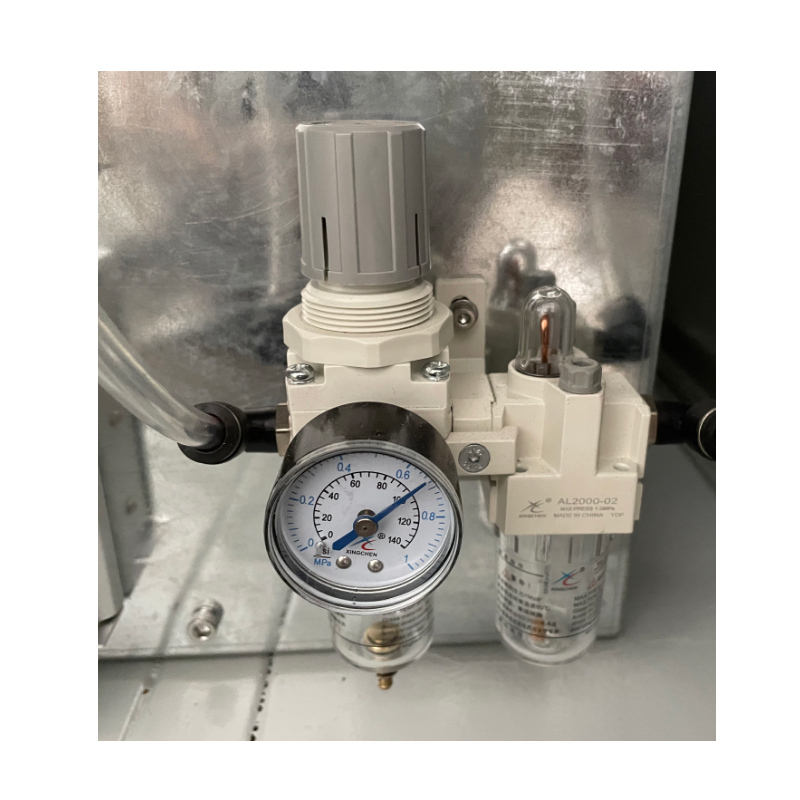

- Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
- Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
- Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
- Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
