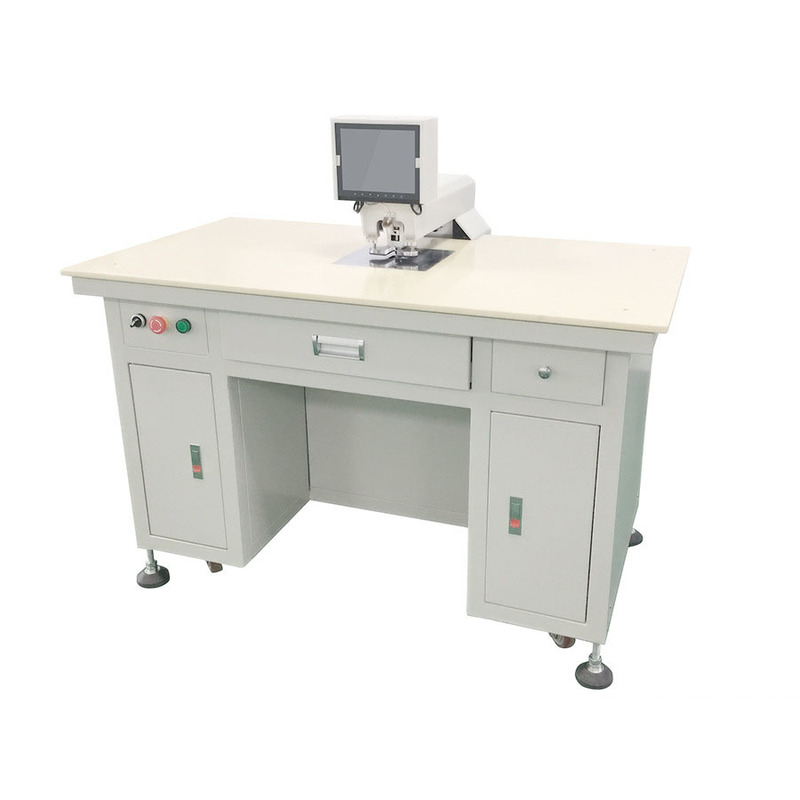

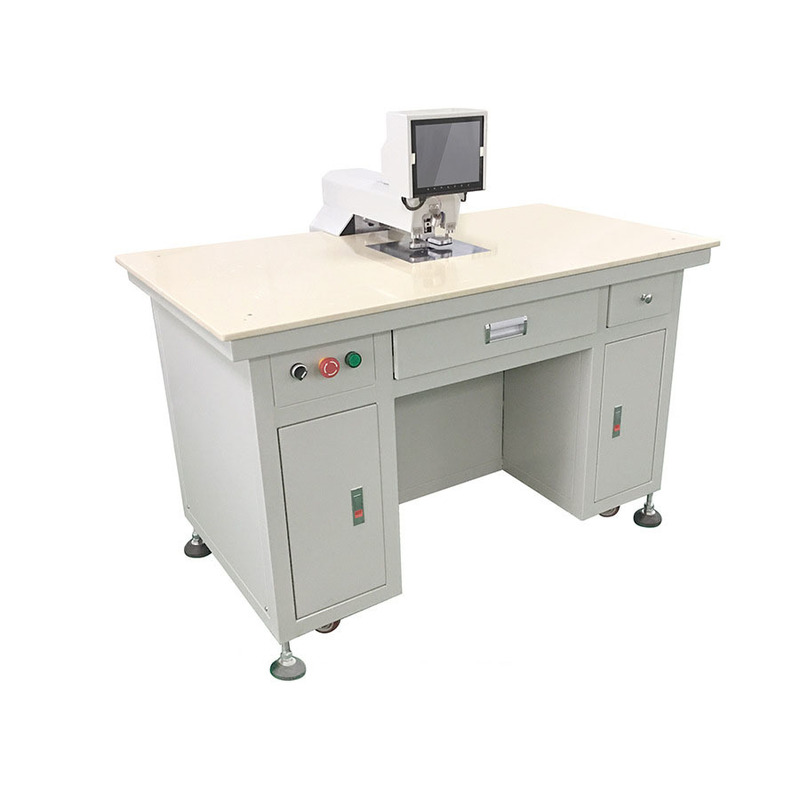

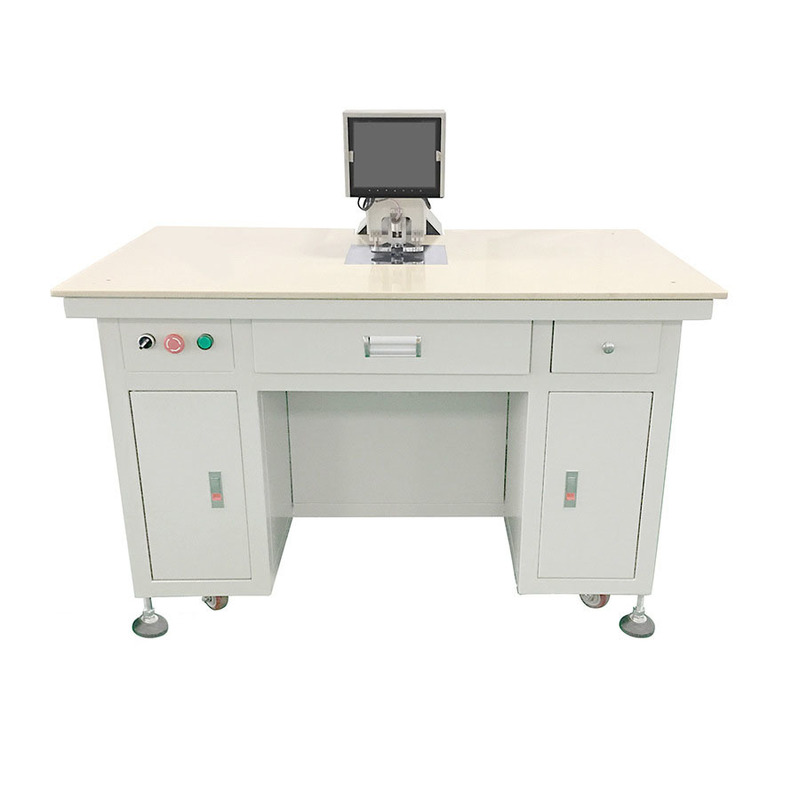

Semi-auto CCD Hole Punching Machine For Medical labels/Automotive Panel
Semi-auto CCD hole punching machine
Medical label hole punching machine
Automotive panel hole punching machine
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLT15
Semi-auto CCD hole punching machine
,Medical label hole punching machine
,Automotive panel hole punching machine
-
Spacious Working Table – Marble table supports large sheets and multiple substrates simultaneously.
-
Automatic CCD Positioning – Quickly recognizes targets and aligns materials for punching.
-
Ultra-Fast Punching – 0.35 seconds per hole, 7–8× faster than manual punching, ideal for high-volume production.
-
Precision Guaranteed – Overall error ≤ 0.02 mm ensures consistent results for intricate designs.
-
Smart Illumination – Up-light and down-light systems ensure accurate target recognition.
-
Touchscreen Control – Intuitive interface simplifies operations and allows real-time monitoring.
-

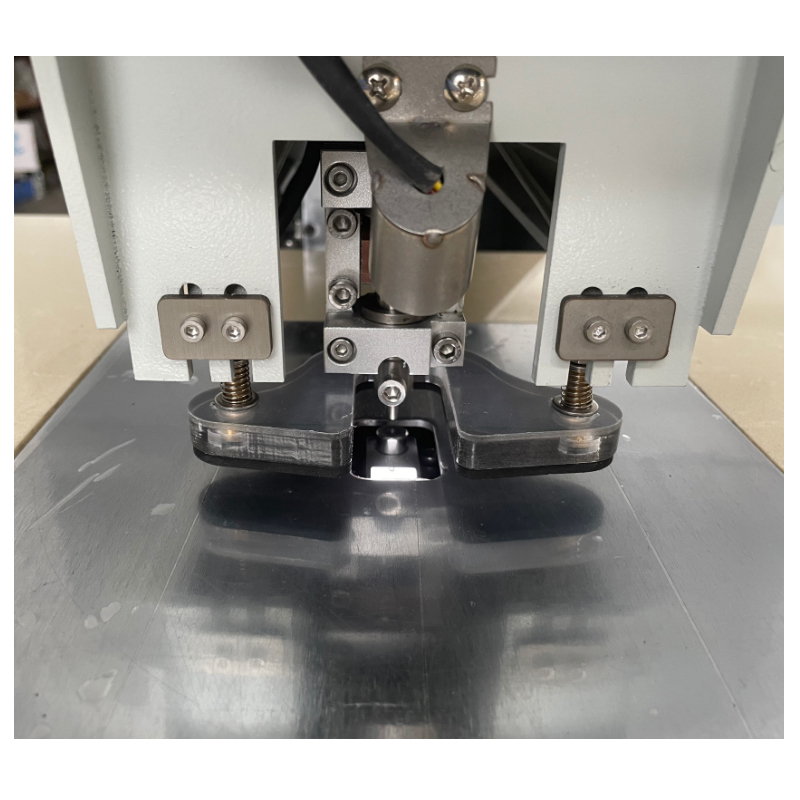

Flattening Mechanism – Ensures substrates remain flat during punching for maximum precision.
-
Customizable Software – Sampling plans can be saved and reused for repeated jobs.
-
Reliable Components – High-quality imported parts guarantee long-term durability and stability.
| Model | SLT15 |
| Dimension | L1250 x W780 x H1150mm |
| Weight | 200KG |
| Table size | L1250 x W770mm |
| Punching force | 2500N |

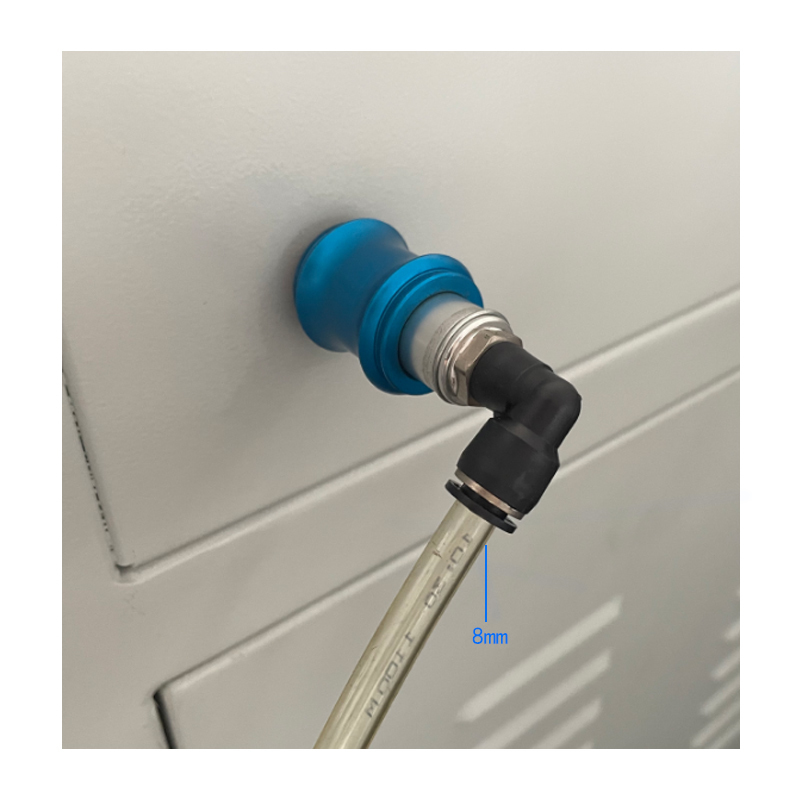

| Air pressure | 0.4~0.8Mpa |
| Voltage | AC 220V-240V 50HZ |
| Power | 0.4kW |
| Precision | ±0.015mm |
| Hole diameter | Φ1－Φ5mm(customizable) |
| Light source | white and colors |
- Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

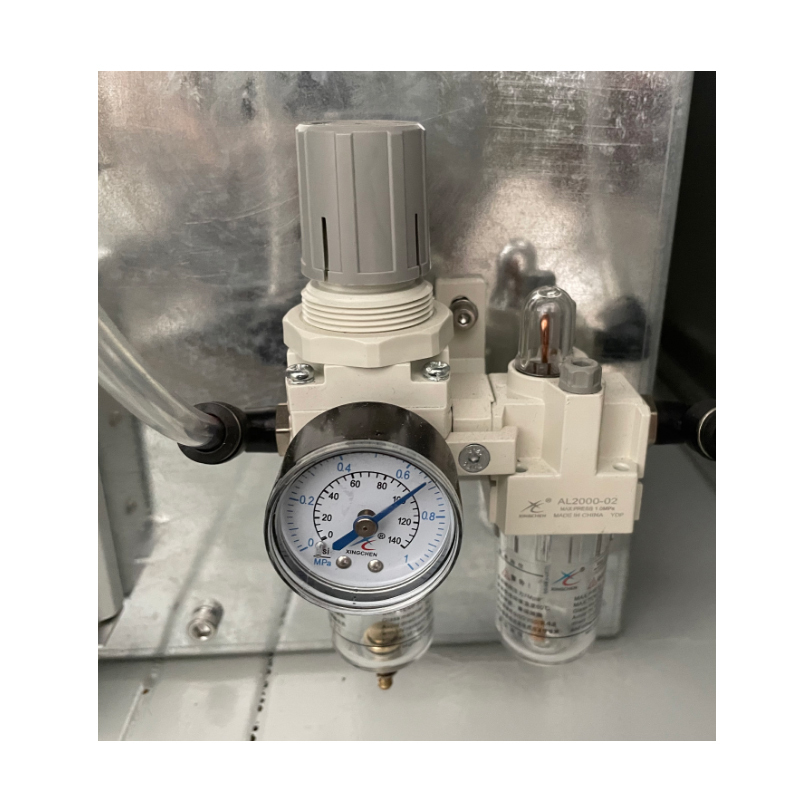

- Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
- Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
- Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
- Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
