Semi Auto CCD Guide Hole Punching Machine
>

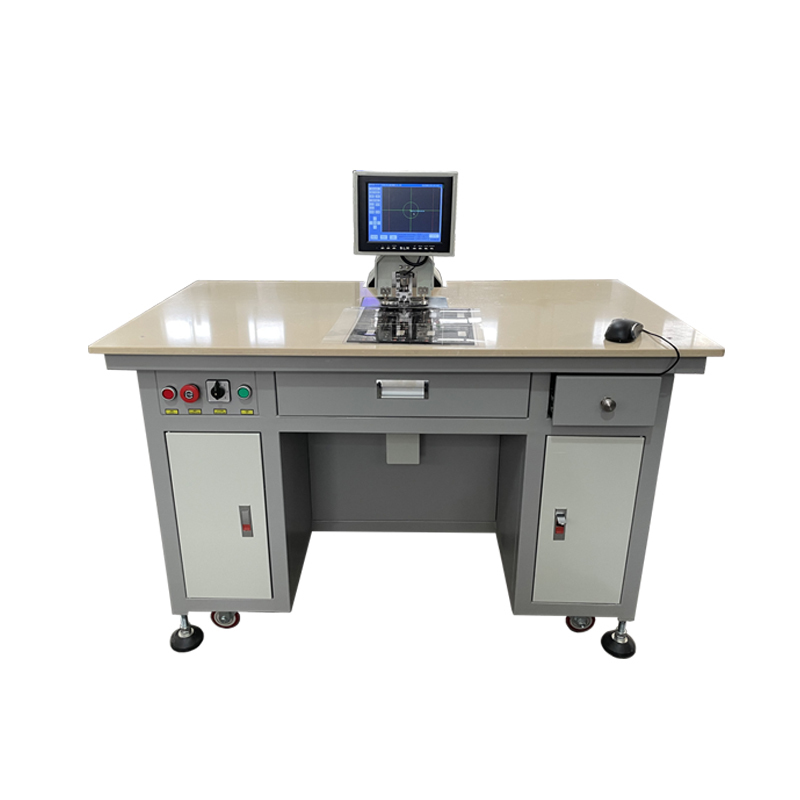

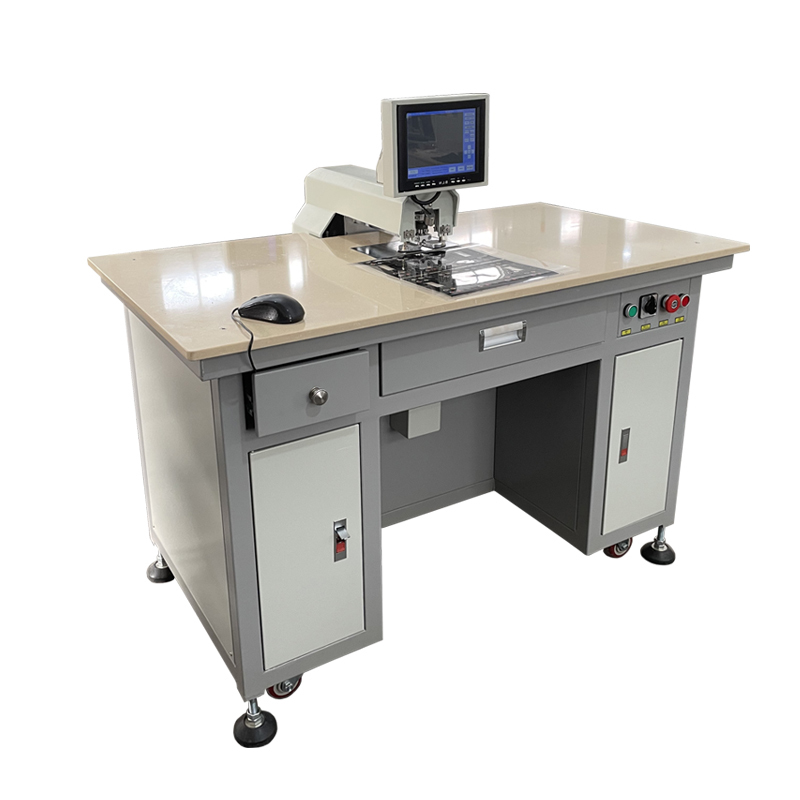

Semi-auto CCD Camera Hole Punch Machine For Membrane Switches/Keypads/Keyboards
Semi-auto CCD Camera Hole Punch Machine For Membrane Switches/Keypads/Keyboards
Semi-auto CCD hole punch machine
Membrane switch hole punching machine
Keypad CCD guide punching machine
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLT15
Contact Us
Request A Quote
Product Details
Precision:
±0.015mm
Speed:
0.35s/hole
Substrate Thickness:
0.01-1mm(base On Material)
Material Of Punch Die:
SKD11/61 Quenched
Highlight:
Semi-auto CCD hole punch machine
,Membrane switch hole punching machine
,Keypad CCD guide punching machine
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1360 x W880 x H1350 mm
Payment Terms
T/T
Supply Ability
30 per month
RELATED PRODUCTS
CONTACT US
Product Description
Applicable Industries
It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.
Punching Samples
Machine Features
- Large Marble Table – Provides a stable platform for aluminum, stainless steel, nickel, and electroformed nameplates.
- CCD Auto-Alignment – Automatically detects targets for high-precision punching.
- Micron-Level Accuracy – Overall error ≤ 0.02 mm, ensuring every hole is perfectly positioned.
- High-Speed Operation – Each hole punched in 0.35 seconds, improving production efficiency significantly.
- Intelligent Lighting System – Special light source detects circular and patterned targets automatically.
- Touchscreen Human-Machine Interface – Easy to set working modes and monitor operations in real time.

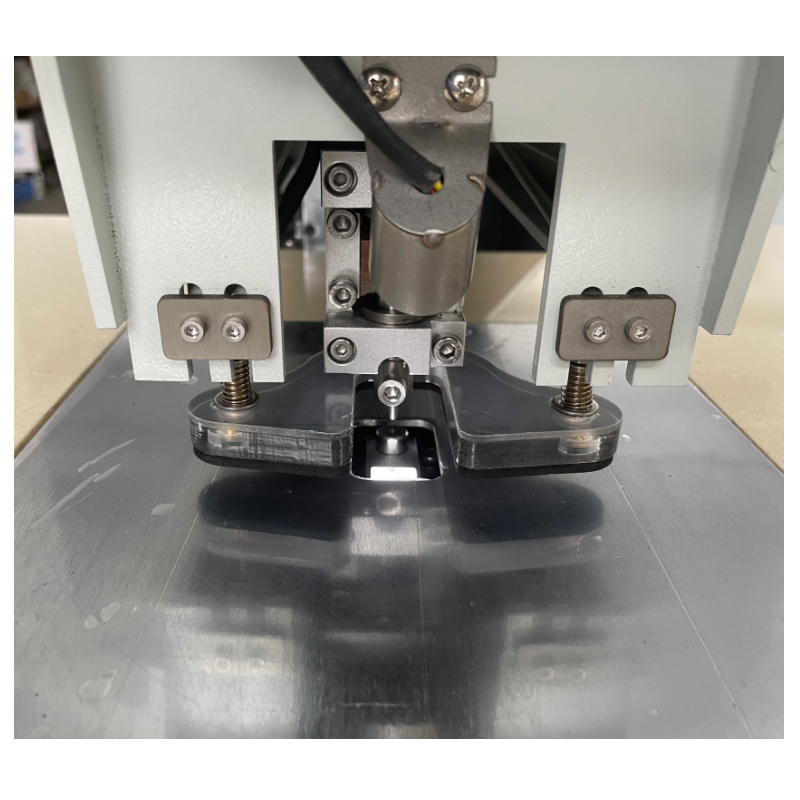

- Punching Assistance – Stamper flattens material during punching for precise hole alignment.
- Software Upgradeable – Keep the system up-to-date with lifetime software support.
- Advanced Image Processing – Binary integrated method ensures accurate recognition for metallic substrates.
Technical Parameter
| Model | SLT15 |
| Dimension | L1250 x W780 x H1150mm |
| Weight | 200KG |
| Table size | L1250 x W770mm |
| Punching force | 2500N |
| Air pressure | 0.4~0.8Mpa |
| Voltage | AC 220V-240V 50HZ |
| Power | 0.4kW |
| Precision | ±0.015mm |
| Hole diameter | Φ1－Φ5mm(customizable) |
| Light source | white and colors |
Workable Marks
Main Components
- Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
- Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
- Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
- Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
- Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
