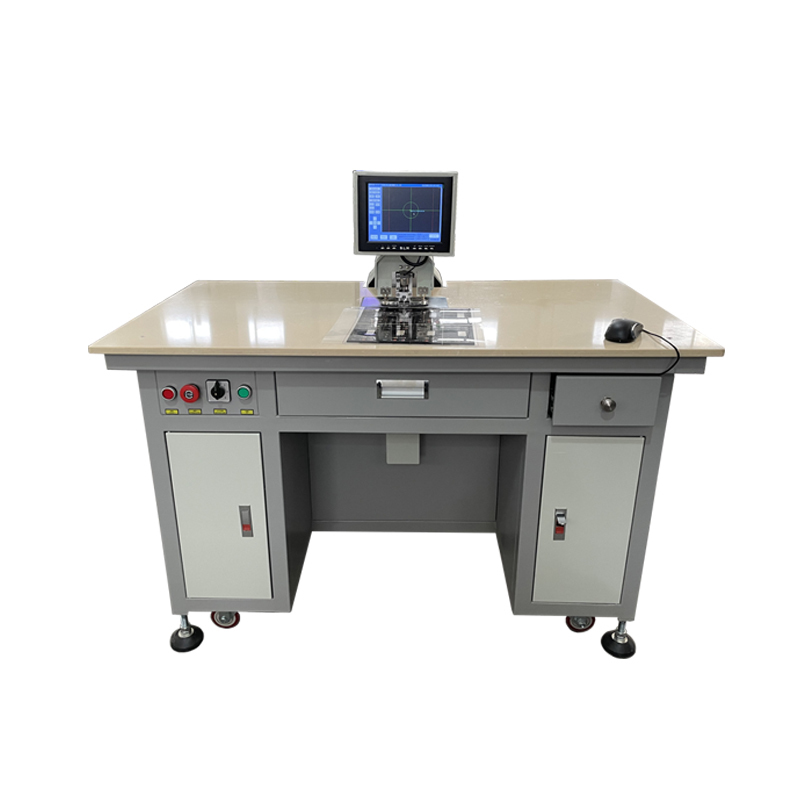

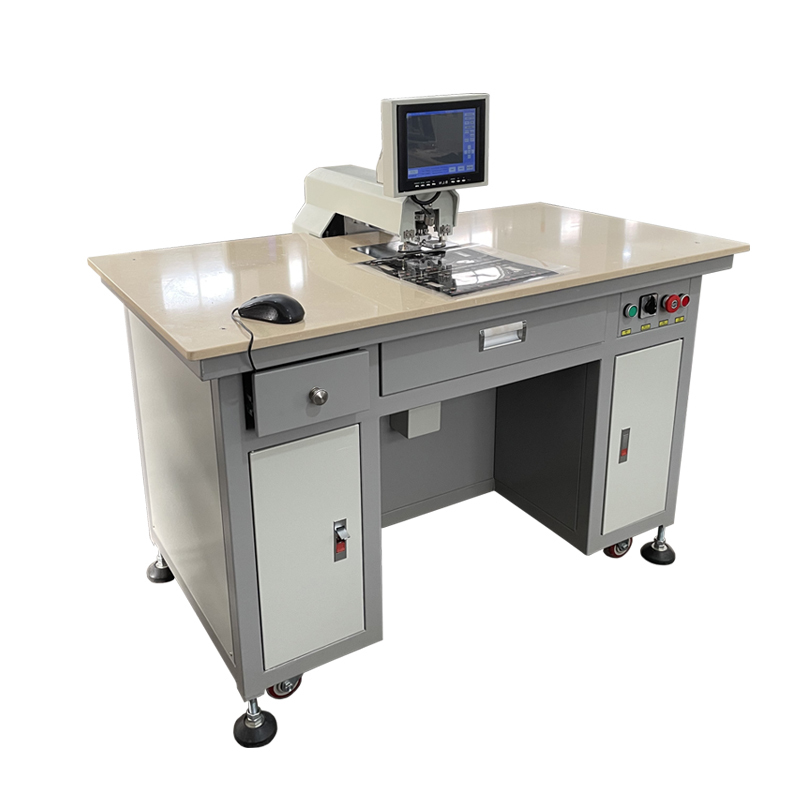

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates

Place of Origin:

China

Brand Name:

SILITRON

Certification:

CE

Model Number:

SLT15

CONTACT US
Request A Quote
Product Details
Precision:
±0.015mm
Speed:
0.35s/hole
Substrate Thickness:
0.01-1mm(base On Material)
Material Of Punch Die:
SKD11/61 Quenched
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1360 x W880 x H1350 mm
Payment Terms
T/T
Supply Ability
30 per month
Product Description
Applicable Industries

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.

Punching Samples

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates 0


Machine Features

  • Wide Working Area – Large marble table handles sheets of all sizes effortlessly.

  • CCD Vision Alignment – Automatically positions designs for consistent, high-precision punching.

  • Micron-Level Accuracy – Overall error kept under 0.02 mm for detailed icons.

  • High-Speed Punching – Each hole completed in 0.35 seconds, 7–8× faster than manual punching.

  • Safe for Sensitive Materials – Aluminum and other thin sheets are punched without damage.

  • Touchscreen Operation – Simple interface allows easy workflow setup and monitoring.

  • Automatic Pattern Recognition – Special lighting detects circular and patterned designs for accurate punching.

  • Live Process Monitoring – Observe the punching in real time via the 8-inch computer display.

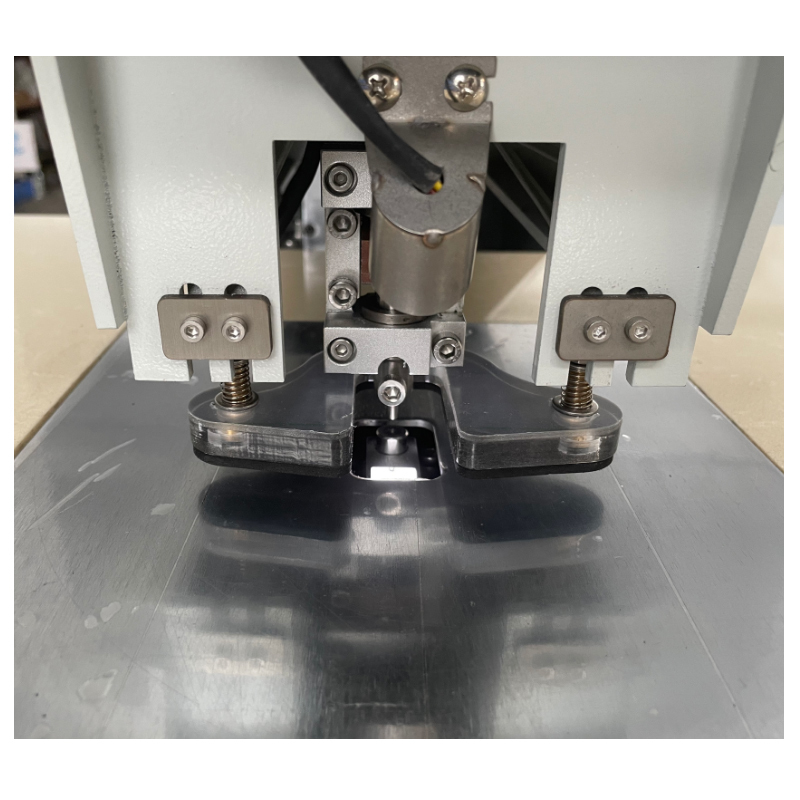

  • Punching Precision Support – Stamper flattens material to ensure perfectly aligned holes.

  • Software & Technical Support – Upgradeable software and expert assistance ensure the machine stays at peak performance.

  • Advanced Image Processing – Binary integration improves CCD recognition and punching alignment.


Technical Parameter

Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N
Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Hole diameter Φ1-Φ5mm(customizable)
Light source white and colors




Workable Marks

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates 1  Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates 2


Main Components

  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

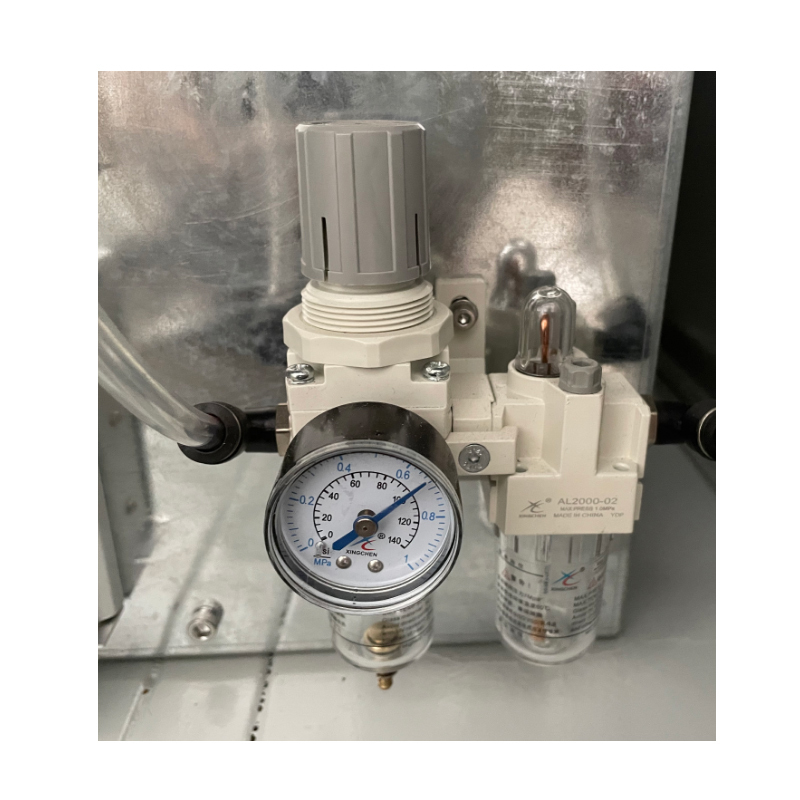

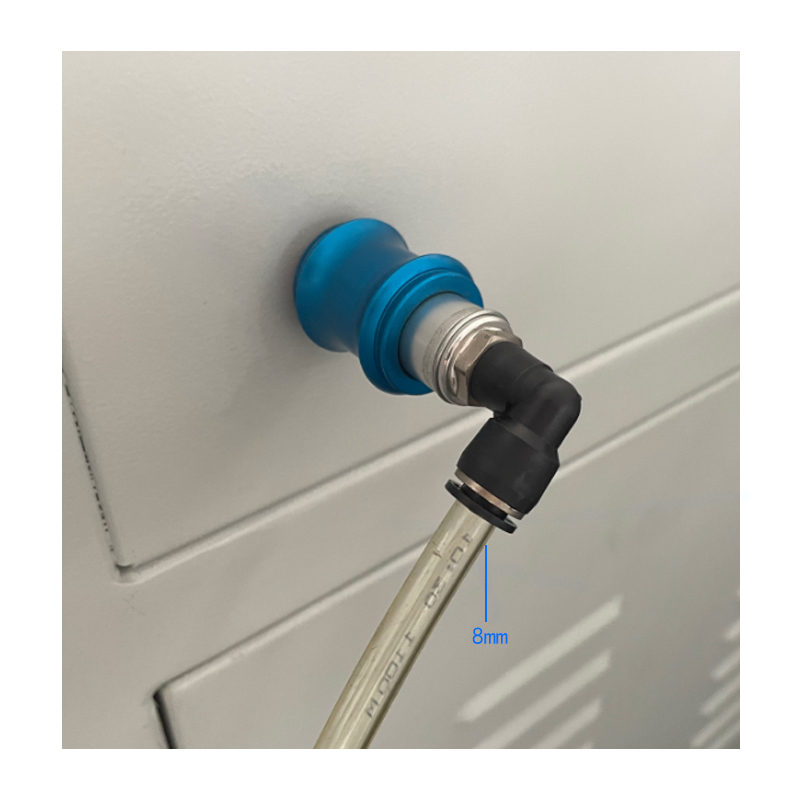

  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
