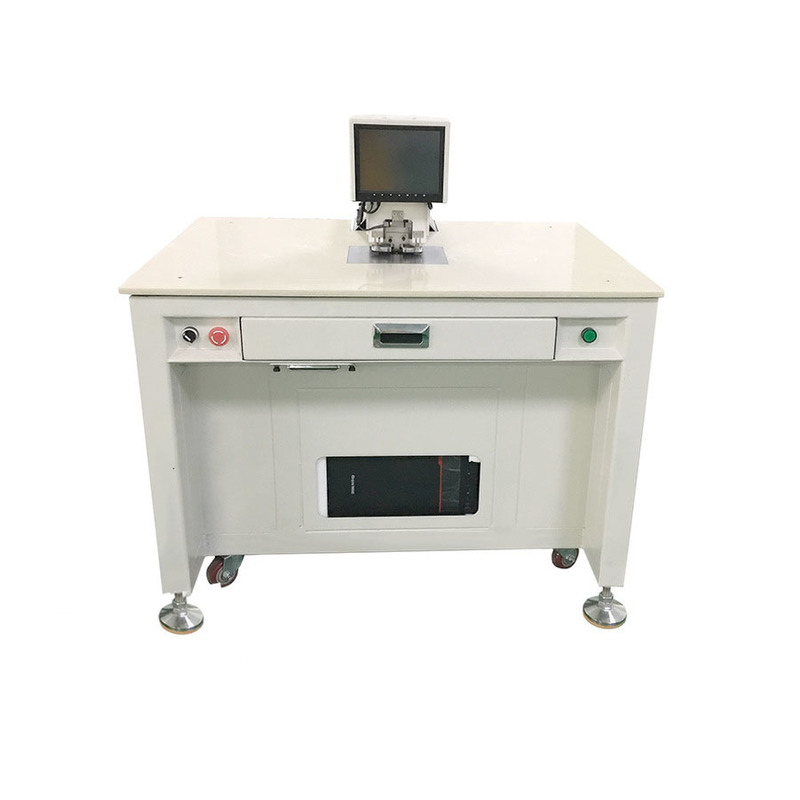

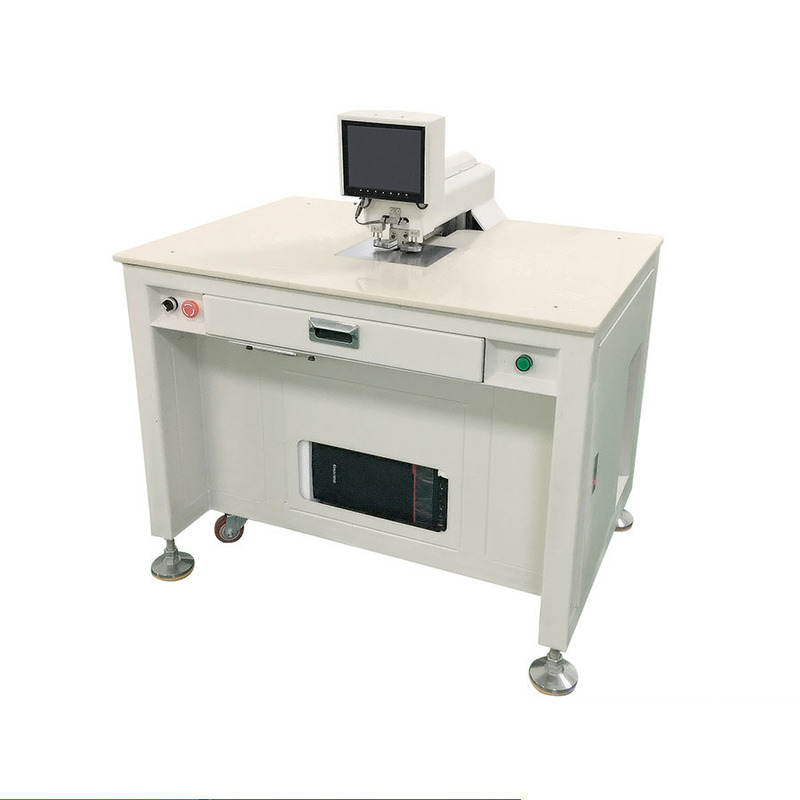

Semi-auto CCD Registration Hole Punching Machine For Anodized Industrial Name Plate
Semi-auto CCD hole punching machine
Anodized name plate punch machine
Industrial CCD registration hole puncher
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
Semi-auto CCD hole punching machine
,Anodized name plate punch machine
,Industrial CCD registration hole puncher
-
Intuitive Mouse & Touch Operation – Simplifies workflow via Windows XP system.
-
Wide Worktable – Easily accommodates large substrates for smooth rotation and placement.
-
High-Speed Punching – Target holes detected and punched in less than a second.
-
Micro-Step Precision – Ensures stable, accurate punching with every cycle.
-

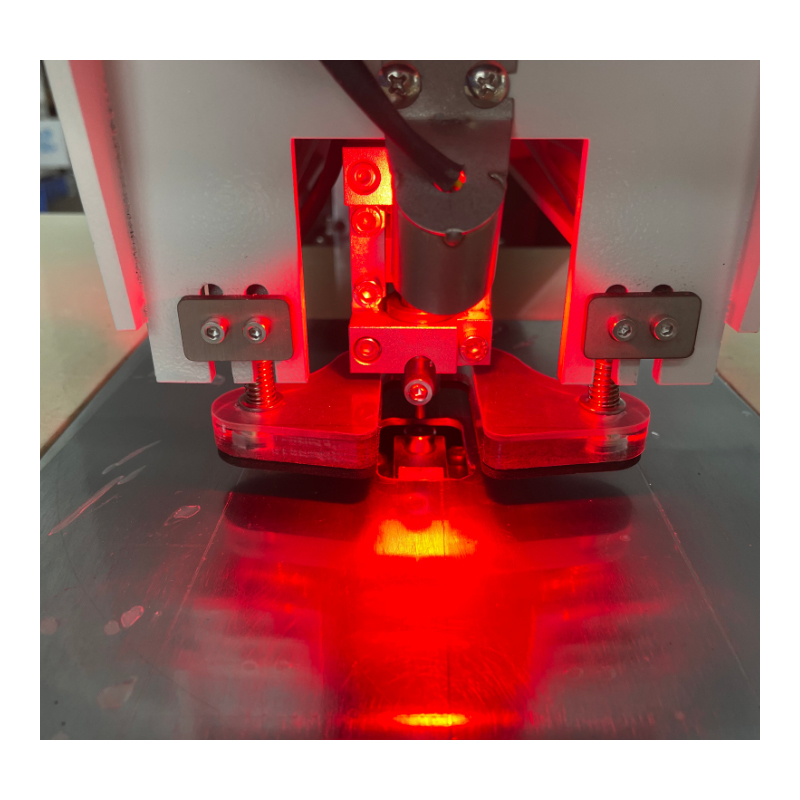

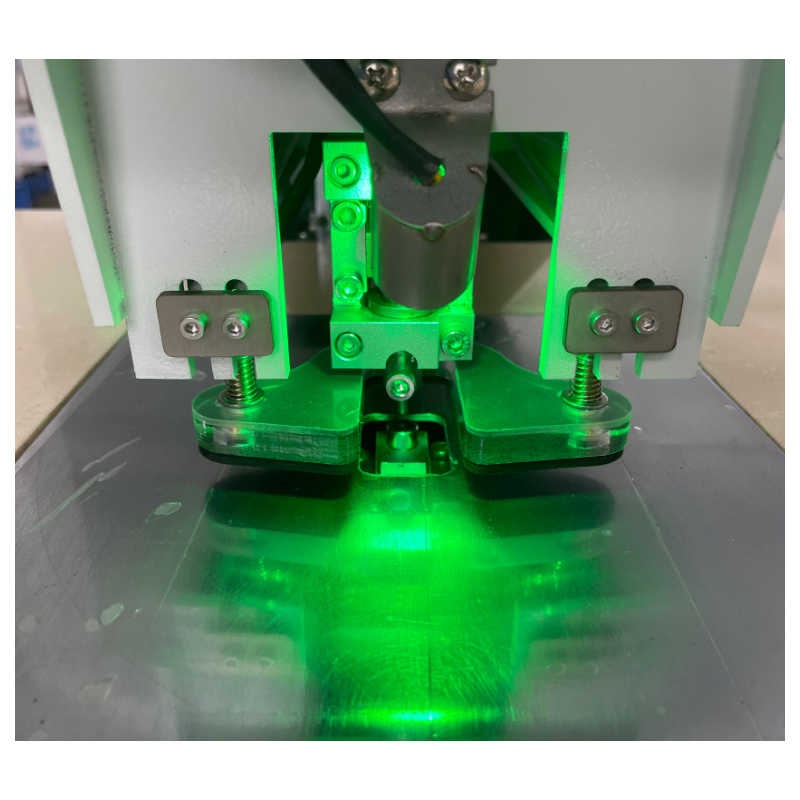

Adaptive Lighting – Up-light and down-light maximize CCD recognition on reflective surfaces.
-
Touch-Controlled Workflow – No pedals required; operations are smooth and responsive.
-
Customizable Punch Dies – Supports a variety of hole diameters and material thicknesses.
-
Program Memory – Save recurring job plans for fast repeat operations.
-
Lifetime Software Support – System can be upgraded to maintain top performance.
-
Imported Critical Components – Ensures durability and long service life.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |

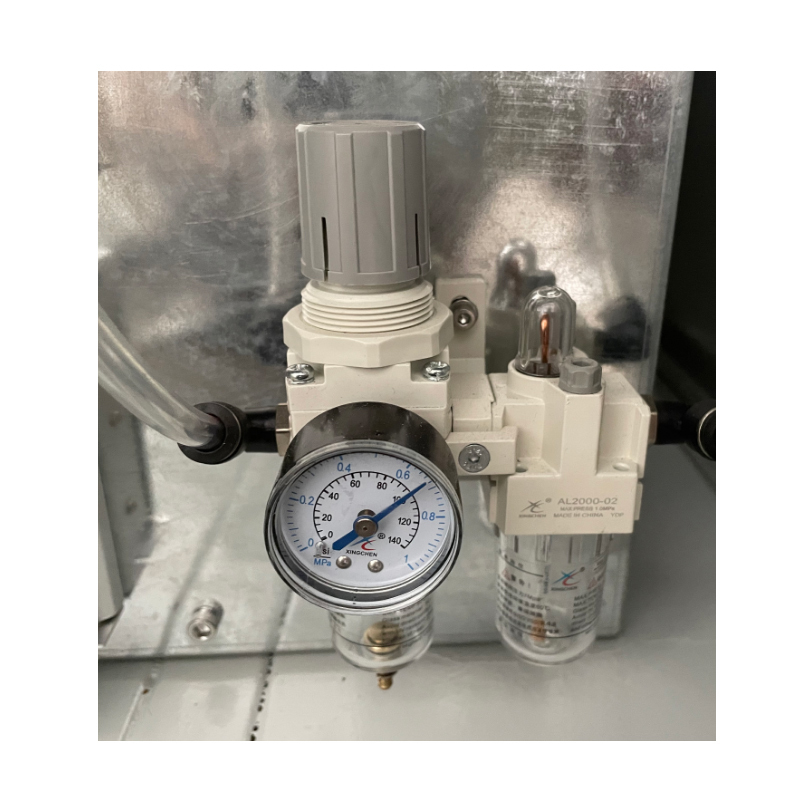

| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
|
Item
|
Brand
|
Origin
|
|
Guide rail / Slider
|
HIWIN
|
Taiwan
|
|
Lead screw
|
HIWIN
|
Taiwan
|
|
Coupling
|
Miki pulley
|
Japan |
|
Photoelectric switch
|
Omron
|
Japan |
|
Bearing
|
NSK
|
Japan
|
|
CCD Camera
|
Sony
|
Japan
|
|
Lens
|
Sony
|
Japan
|
|
Mainboard/software system
|
SLT
|
SLT
|
|
Cylinder/Solenoid valve
|
SHAKO
|
Taiwan |
