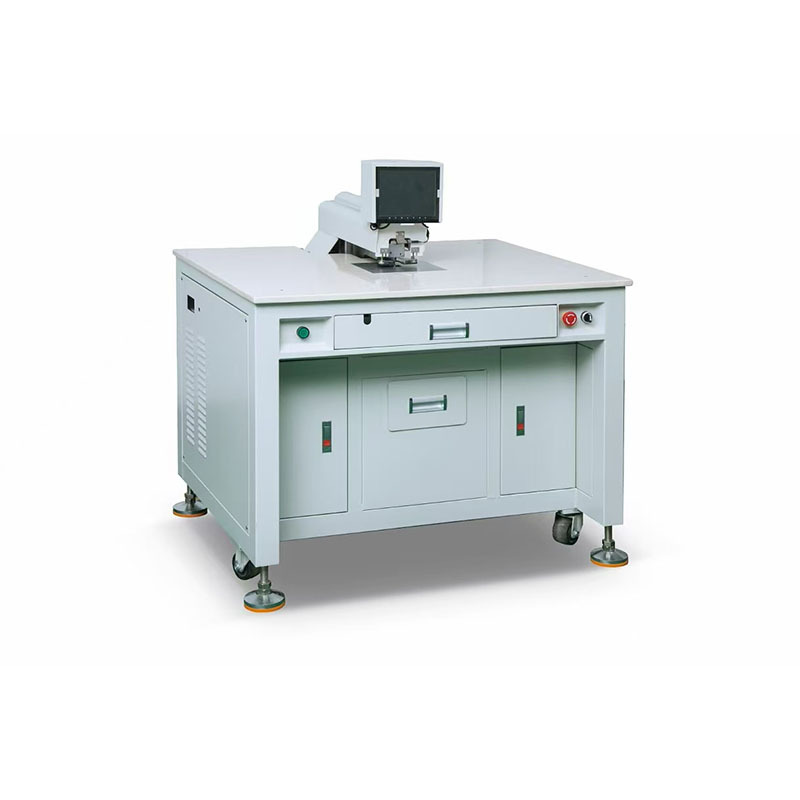

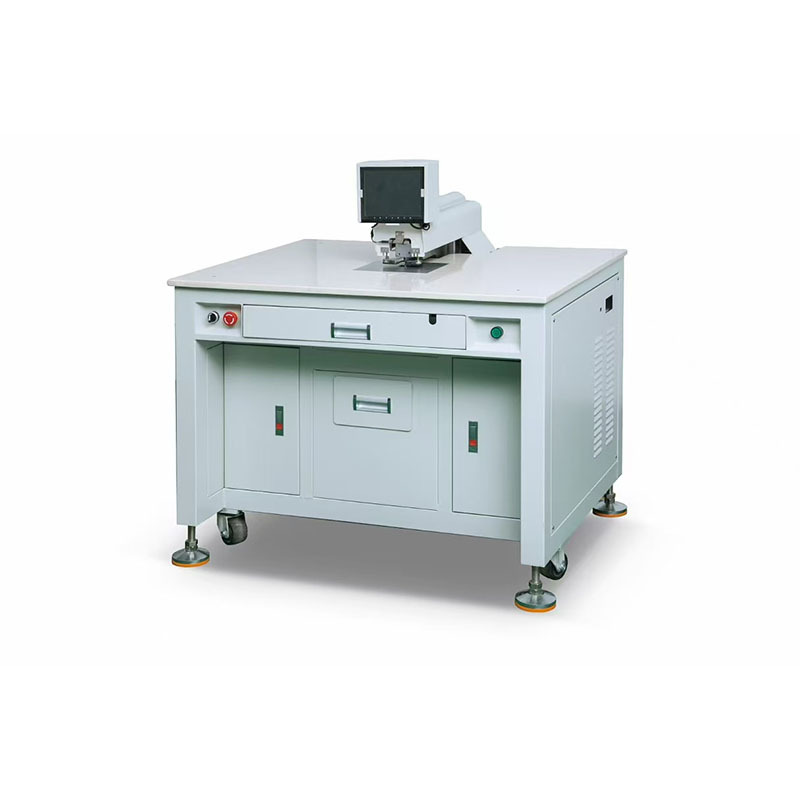

Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD hole punching machine
Aluminum label hole punch machine
Steel label registration punching machine
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
Semi-auto CCD hole punching machine
,Aluminum label hole punch machine
,Steel label registration punching machine
-
Interactive Windows XP Interface – Streamlines setup and operation.
-
Spacious Stage – Allows substrates to be adjusted and rotated with ease.
-
Rapid Hole Recognition & Punching – Less than one second per cycle.
-
Stable Transmission System – Micro-step motors maintain consistent accuracy.
-

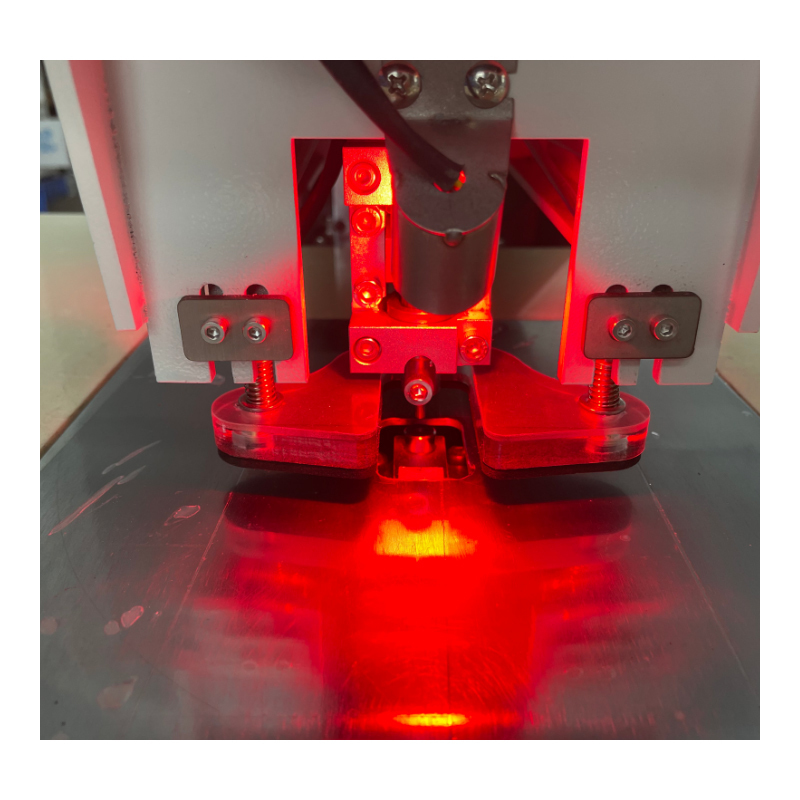

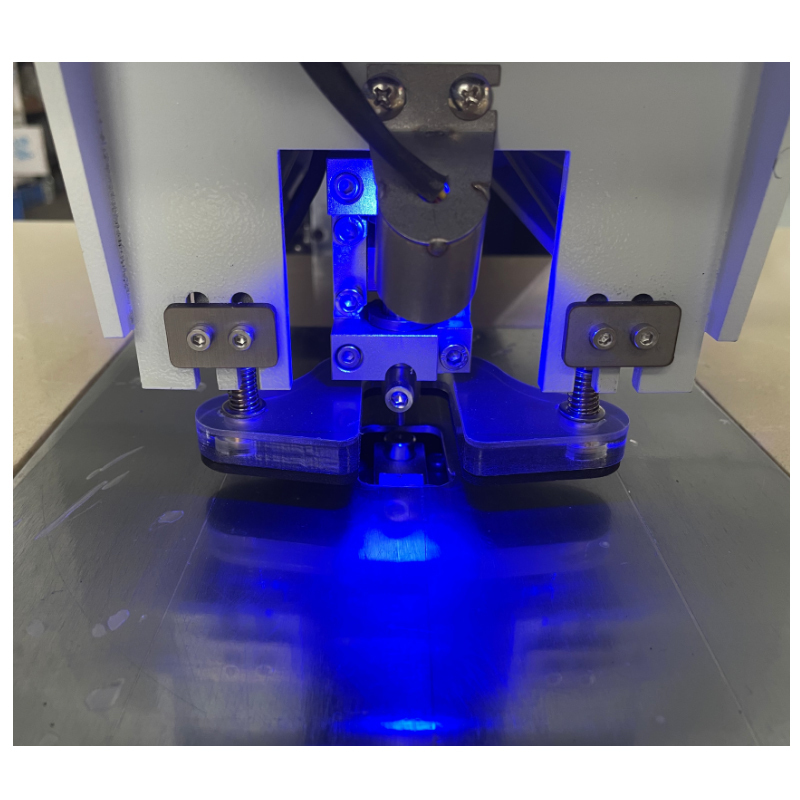

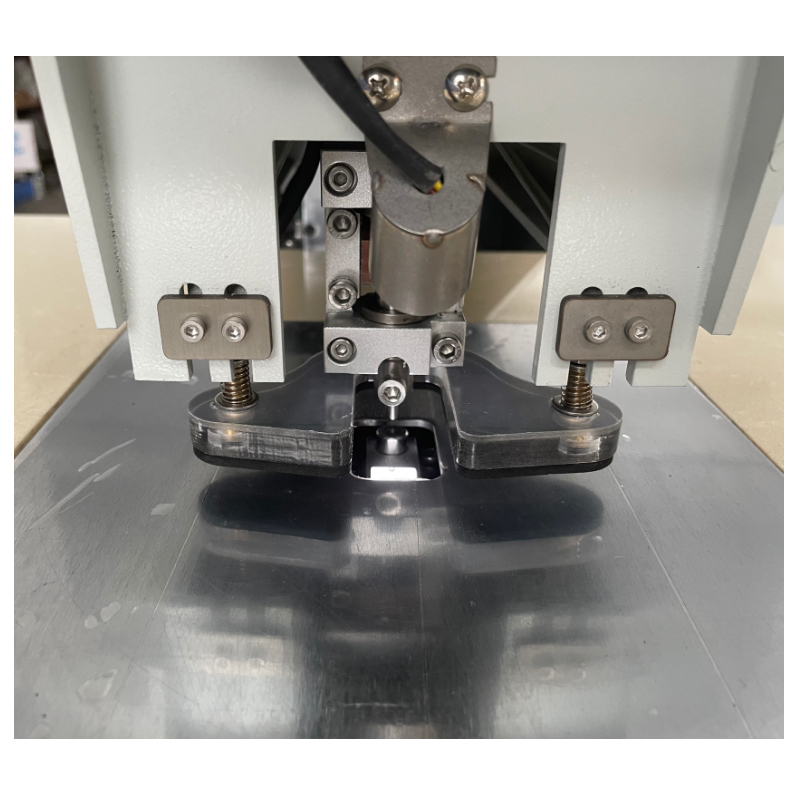

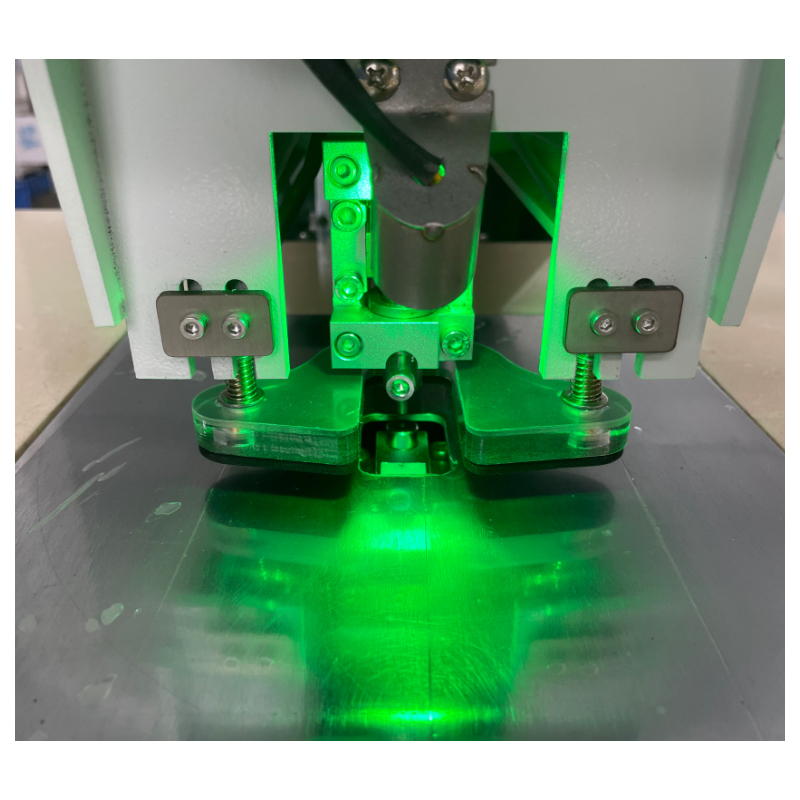

Enhanced Illumination – Top and bottom lights improve recognition for all substrate types.
-
Fully Automated Touch Operation – No foot pedal required for faster workflow.
-
Flexible Tooling – Die sizes can be switched to handle different hole requirements.
-
Reusable Sampling Plans – Quickly recall previous setups for repeated jobs.
-
Software Upgrades Available – Keeps the system current with latest improvements.
-
Quality-Imported Components – Cylinders, valves, and rails guarantee long-term reliability.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |

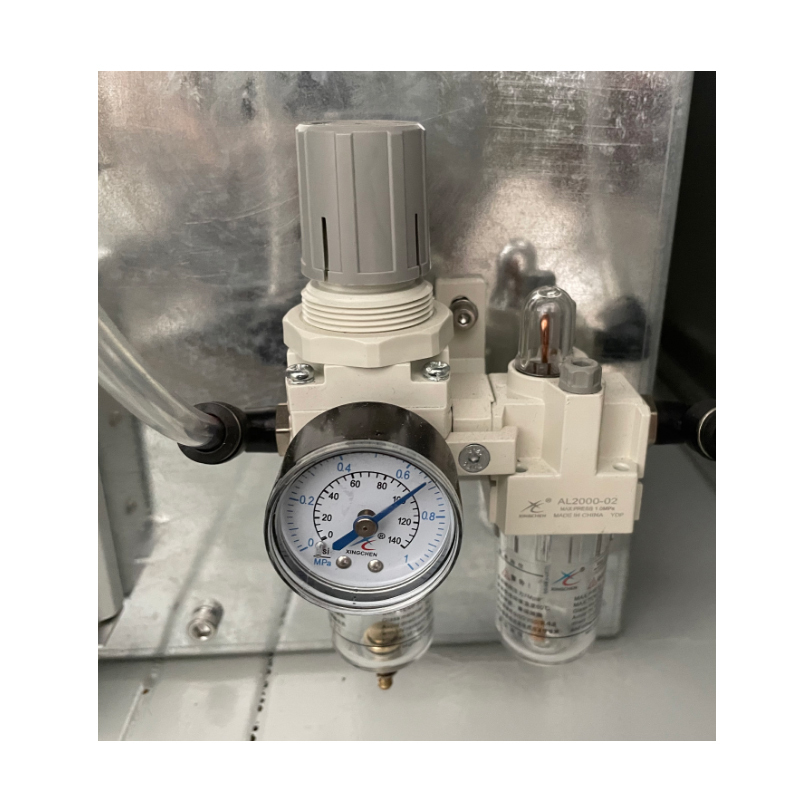

| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
|
Item
|
Brand
|
Origin
|
|
Guide rail / Slider
|
HIWIN
|
Taiwan
|
|
Lead screw
|
HIWIN
|
Taiwan
|
|
Coupling
|
Miki pulley
|
Japan |
|
Photoelectric switch
|
Omron
|
Japan |
|
Bearing
|
NSK
|
Japan
|
|
CCD Camera
|
Sony
|
Japan
|
|
Lens
|
Sony
|
Japan
|
|
Mainboard/software system
|
SLT
|
SLT
|
|
Cylinder/Solenoid valve
|
SHAKO
|
Taiwan |
