Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
video
Windows XP Touch Interface – Easy operation and process monitoring.
Large Work Surface – Handles aluminum, stainless steel, and electroformed nameplates with ease.
Fast Punching Cycle – Detect and punch holes in less than a second.
High-Accuracy Transmission – Micro-step motors ensure ±0.015 mm precision.

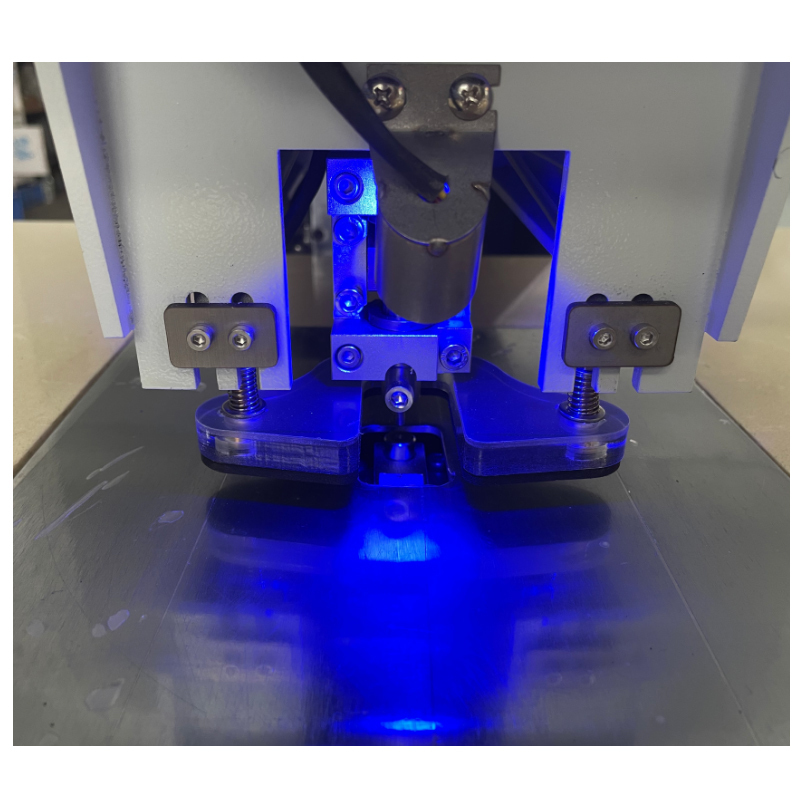

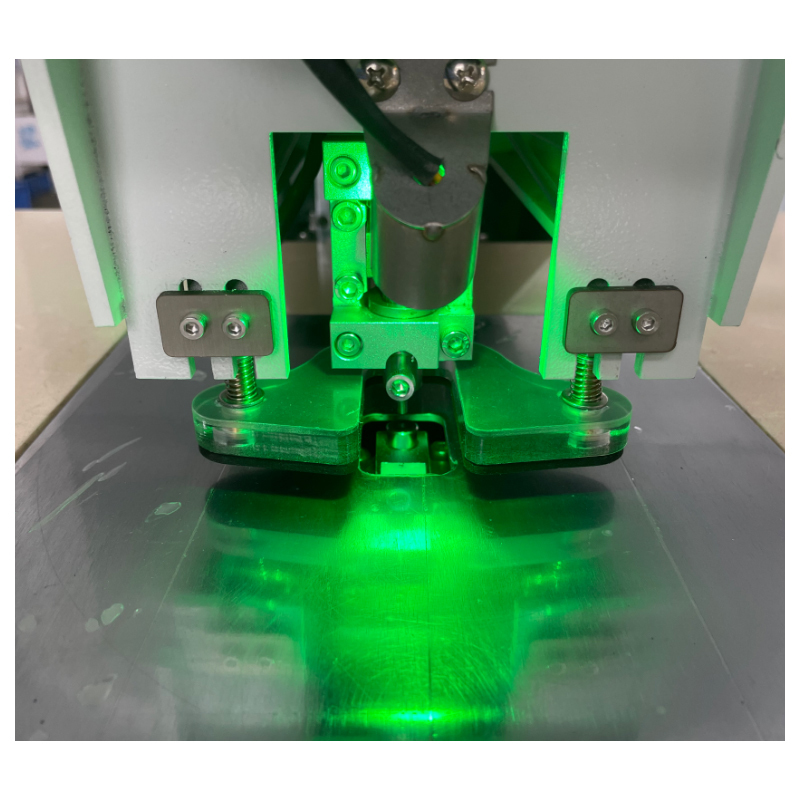

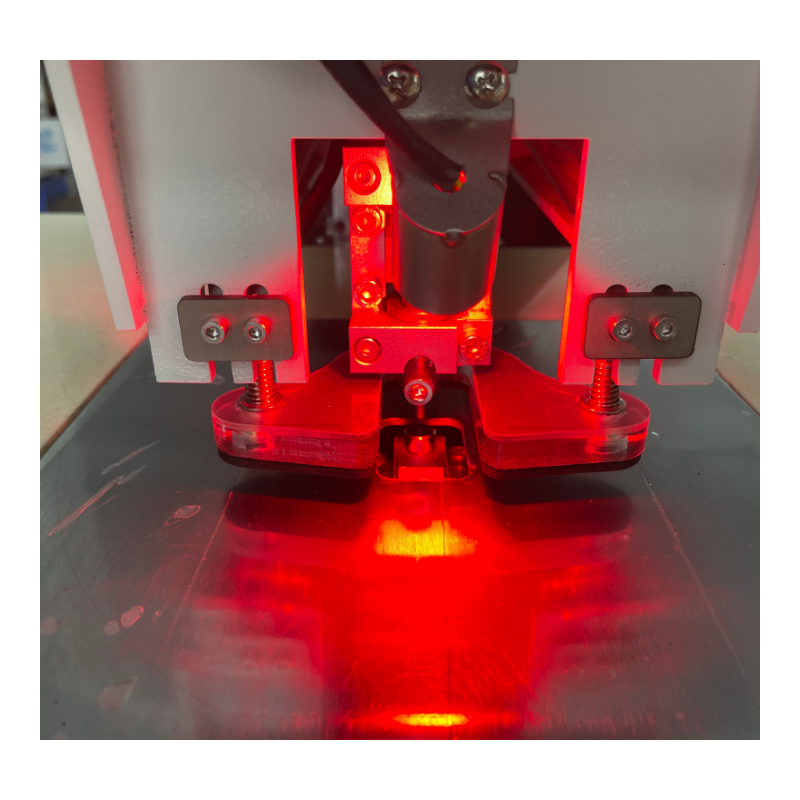

Dual LED Lighting – Up-light and down-light improve CCD detection on reflective metals.
No Pedal Needed – Entire operation completed via touch-screen.
Variable Tooling Options – Supports multiple hole sizes and material thicknesses.
Job Program Storage – Save and reuse setups for consistent results.
Upgrade-Ready Software – System can be updated for enhanced capabilities.
Durable Imported Parts – Imported valves, rails, and cylinders enhance machine longevity.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |
| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
|
Item
|
Brand
|
Origin
|
|
Guide rail / Slider
|
HIWIN
|
Taiwan
|
|
Lead screw
|
HIWIN
|
Taiwan
|
|
Coupling
|
Miki pulley
|
Japan |
|
Photoelectric switch
|
Omron
|
Japan |
|
Bearing
|
NSK
|
Japan
|
|
CCD Camera
|
Sony
|
Japan
|
|
Lens
|
Sony
|
Japan
|
|
Mainboard/software system
|
SLT
|
SLT
|
|
Cylinder/Solenoid valve
|
SHAKO
|
Taiwan |
video
video
video
