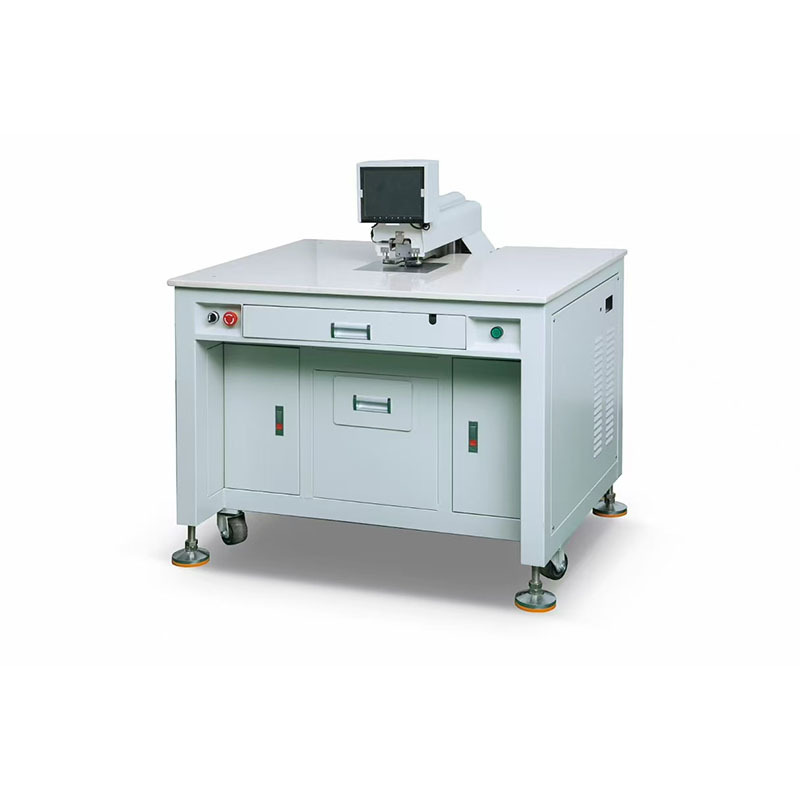

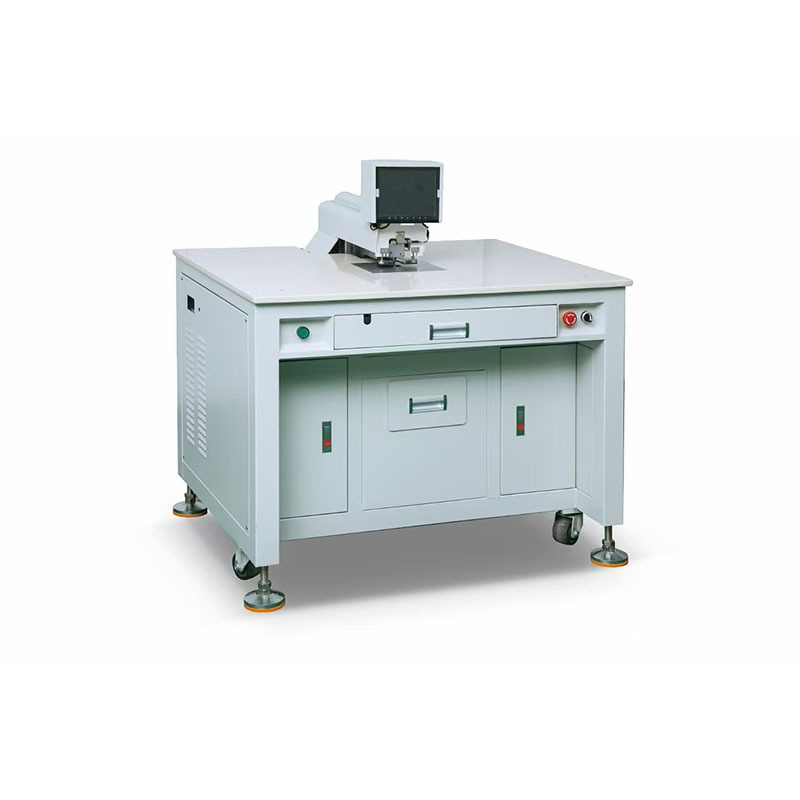

SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
semi-auto CCD camera hole punching machine
name plate label punching machine
CCD guide hole punching machine
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
semi-auto CCD camera hole punching machine
,name plate label punching machine
,CCD guide hole punching machine
-
User-Friendly Windows XP System – Simplifies control and navigation.
-
Wide Operation Stage – Enables easy material placement and rotation.
-
High-Speed Punching – Punch holes rapidly with precise CCD alignment.
-
Micro-Step Motor Drive – Guarantees stable and accurate performance.
-

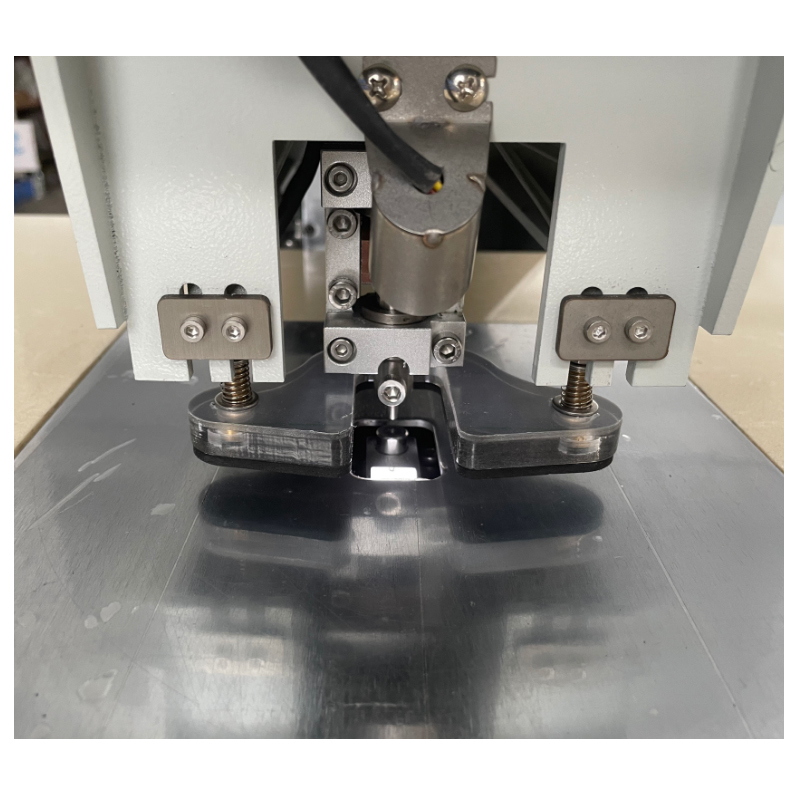

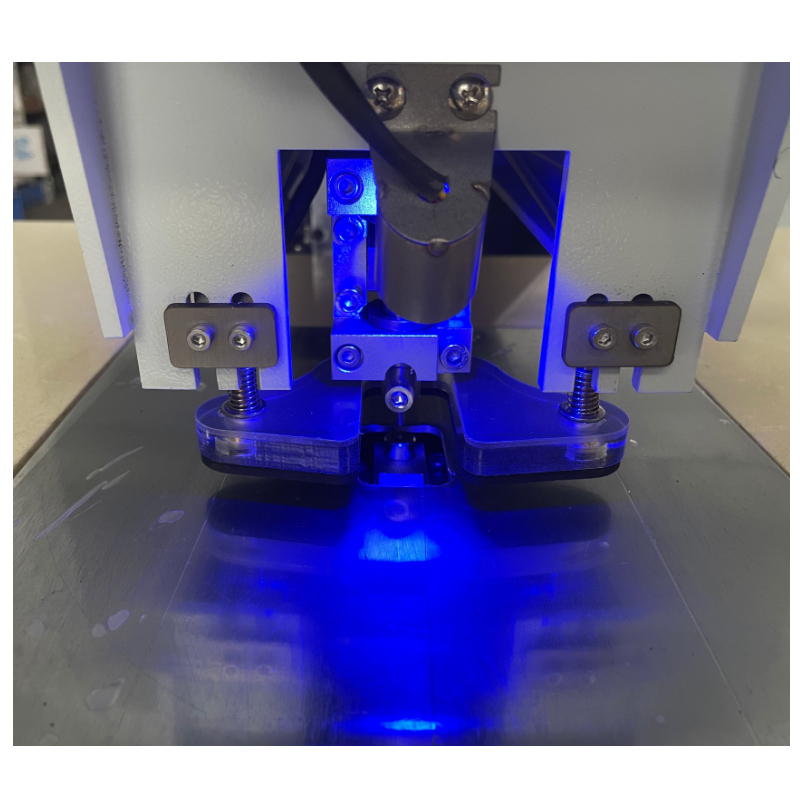

Optimized Lighting – Top and bottom illumination for all material types.
-
Touch-Screen Control – Eliminates the need for foot pedals, boosting speed.
-
Flexible Die Compatibility – Accommodates different thicknesses and diameters.
-
Stored Job Plans – Reuse previous programs to save setup time.
-
Lifetime Software Upgrade Support – Keep system optimized with new features.
-
Imported Key Components – Ensures durability, stability, and long-term service life.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |
| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
|
Item
|
Brand
|
Origin
|
|
Guide rail / Slider
|
HIWIN
|
Taiwan
|
|
Lead screw
|
HIWIN
|
Taiwan
|
|
Coupling
|
Miki pulley
|
Japan |
|
Photoelectric switch
|
Omron
|
Japan |
|
Bearing
|
NSK
|
Japan
|
|
CCD Camera
|
Sony
|
Japan
|
|
Lens
|
Sony
|
Japan
|
|
Mainboard/software system
|
SLT
|
SLT
|
|
Cylinder/Solenoid valve
|
SHAKO
|
Taiwan |
