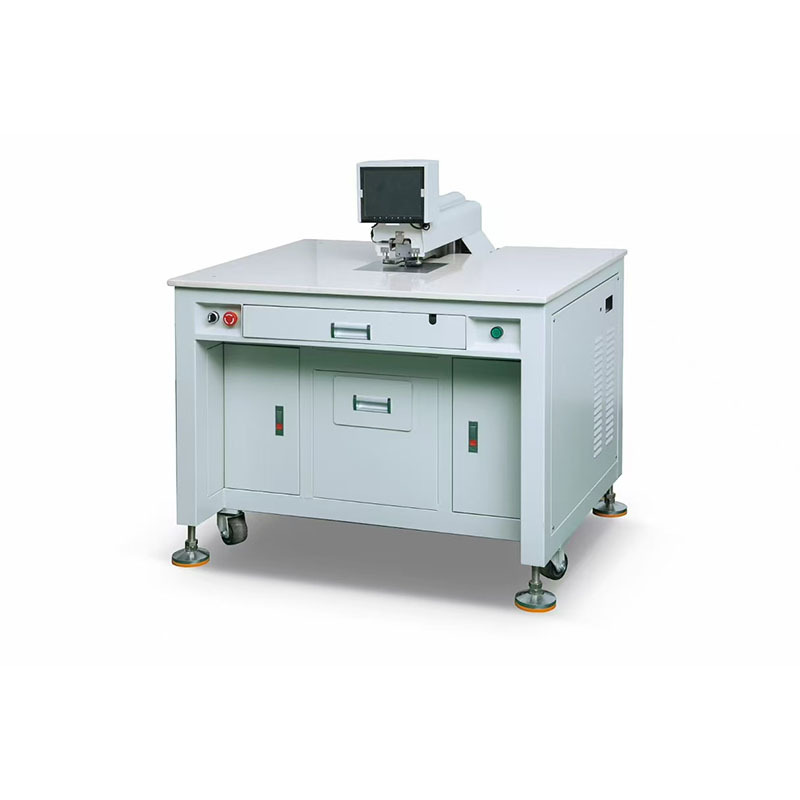

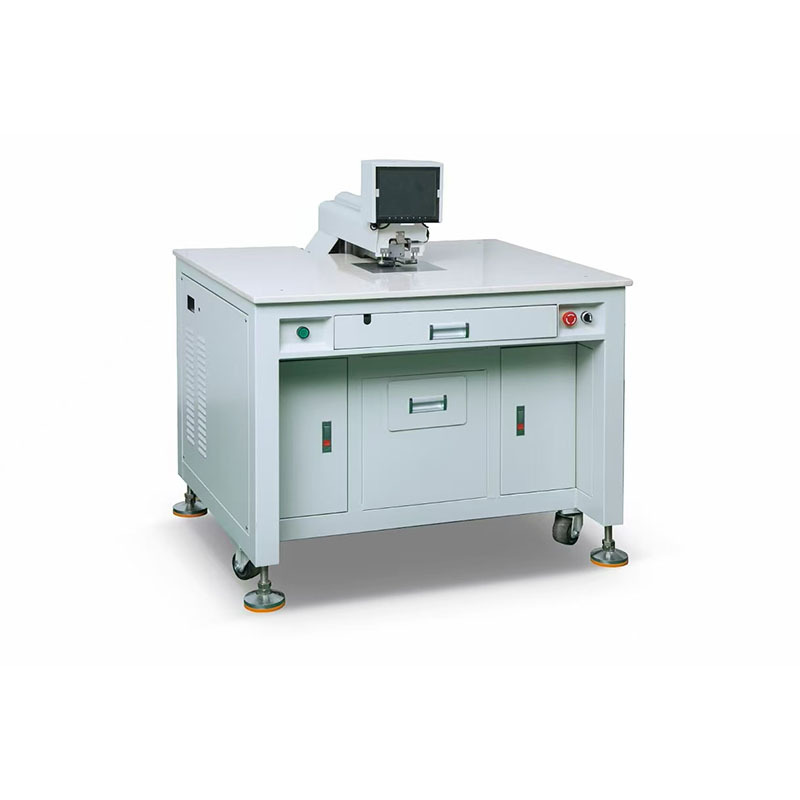

Semi-auto CCD Guide Hole Punch Machine For Anodized Aluminum Label
Semi-auto CCD hole punch machine
Anodized aluminum label punch
CCD guide hole punching machine
Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
Semi-auto CCD hole punch machine
,Anodized aluminum label punch
,CCD guide hole punching machine
-
Interactive Touch & Mouse Interface – Smooth operation for operators of all skill levels.
-
Spacious Worktable – Supports rotation and positioning of various substrate sizes.
-
Super-Fast Punching – Complete hole recognition and punching in one second.
-
High-Precision Transmission – Micro-step motor driver ensures consistent results.
-

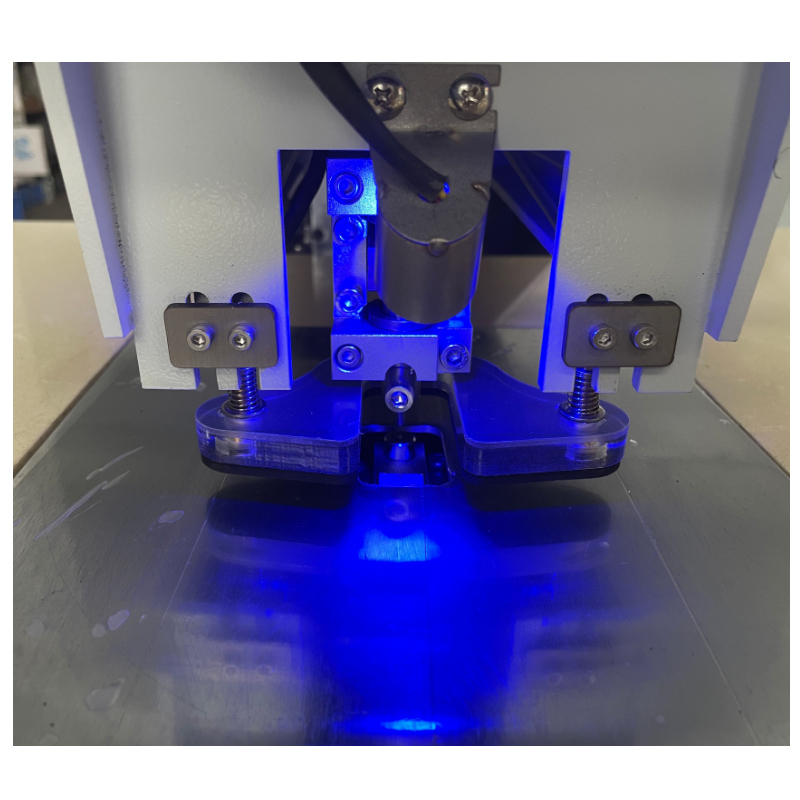

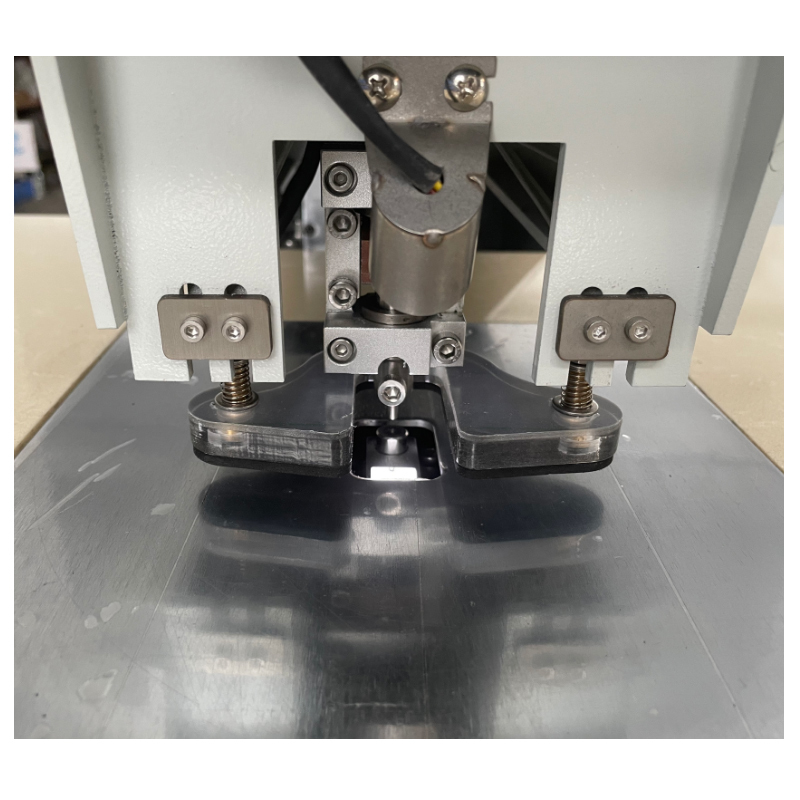

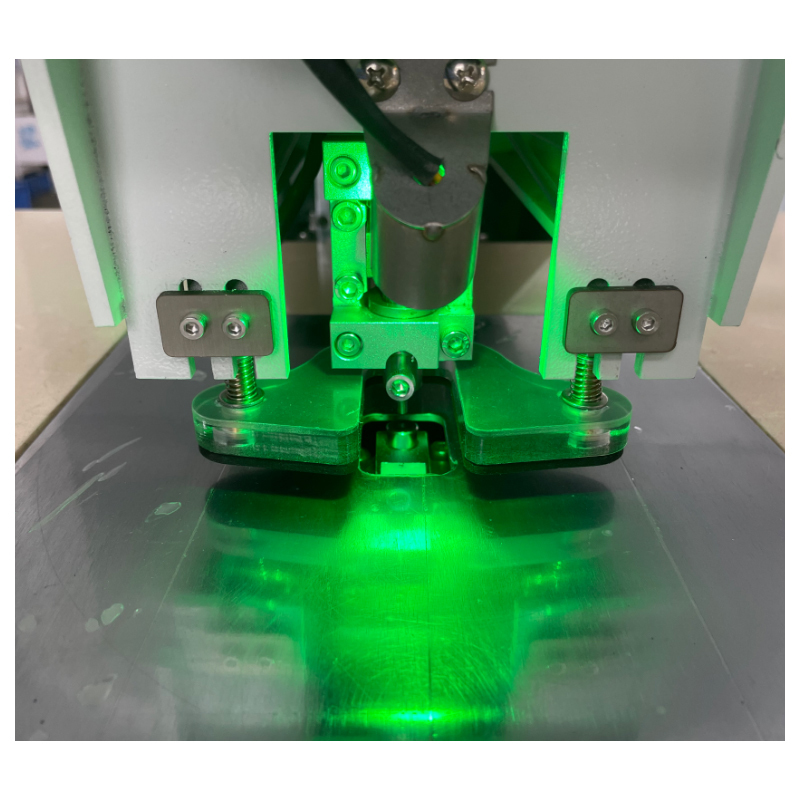

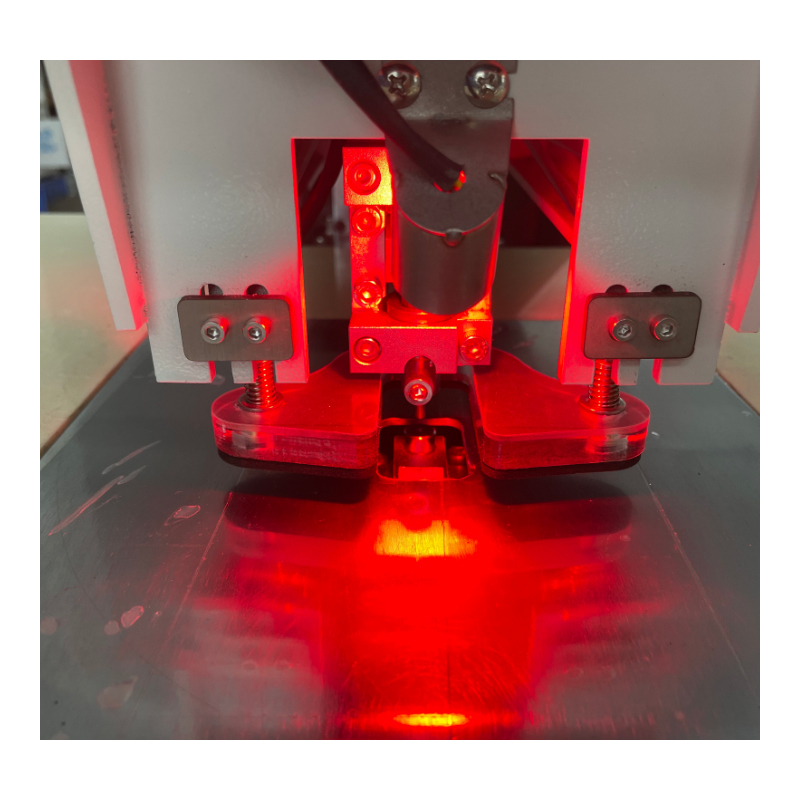

Dual Lighting System – Up and down lights enhance recognition across materials.
-
Pedal-Free Operation – Entire process controlled via touch-screen for faster workflow.
-
Adjustable Tooling – Punch dies can be changed to match different material thicknesses and hole sizes.
-
Program Memory Function – Save and recall work programs for repeatability.
-
Upgradeable Software – Computer system can be upgraded over its lifetime.
-
High-Quality Imported Components – Imported cylinders, solenoid valves, rails, and relief valves ensure long-term durability.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |

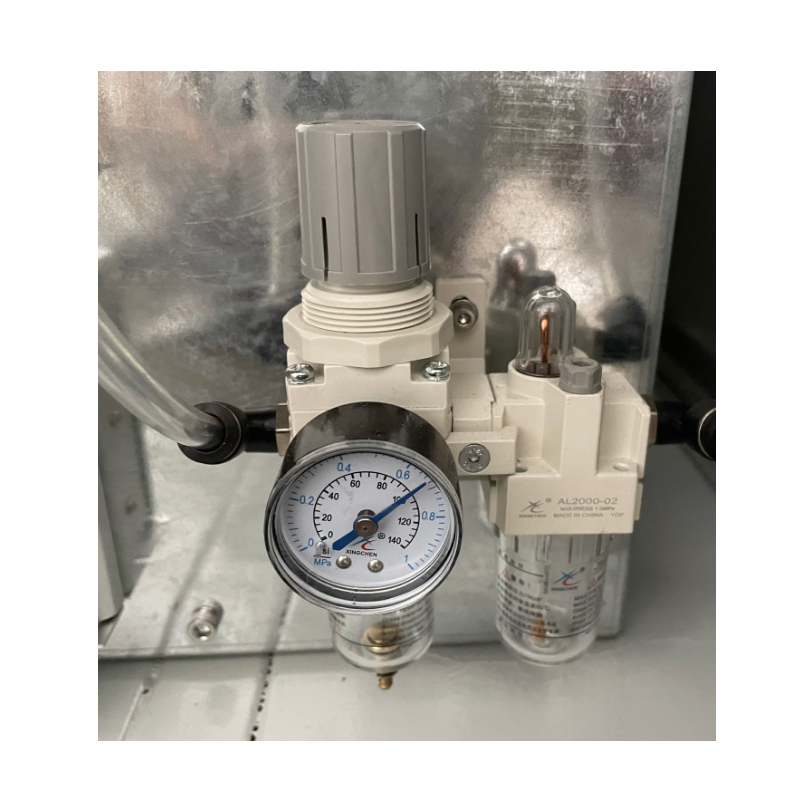

| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
|
Item
|
Brand
|
Origin
|
|
Guide rail / Slider
|
HIWIN
|
Taiwan
|
|
Lead screw
|
HIWIN
|
Taiwan
|
|
Coupling
|
Miki pulley
|
Japan |
|
Photoelectric switch
|
Omron
|
Japan |
|
Bearing
|
NSK
|
Japan
|
|
CCD Camera
|
Sony
|
Japan
|
|
Lens
|
Sony
|
Japan
|
|
Mainboard/software system
|
SLT
|
SLT
|
|
Cylinder/Solenoid valve
|
SHAKO
|
Taiwan |
