Place of Origin:
China
Brand Name:
SILITRON
Certification:
CE
Model Number:
SLTZ15
video
User-Friendly Windows XP System – Simplifies control and navigation.
Wide Operation Stage – Enables easy material placement and rotation.

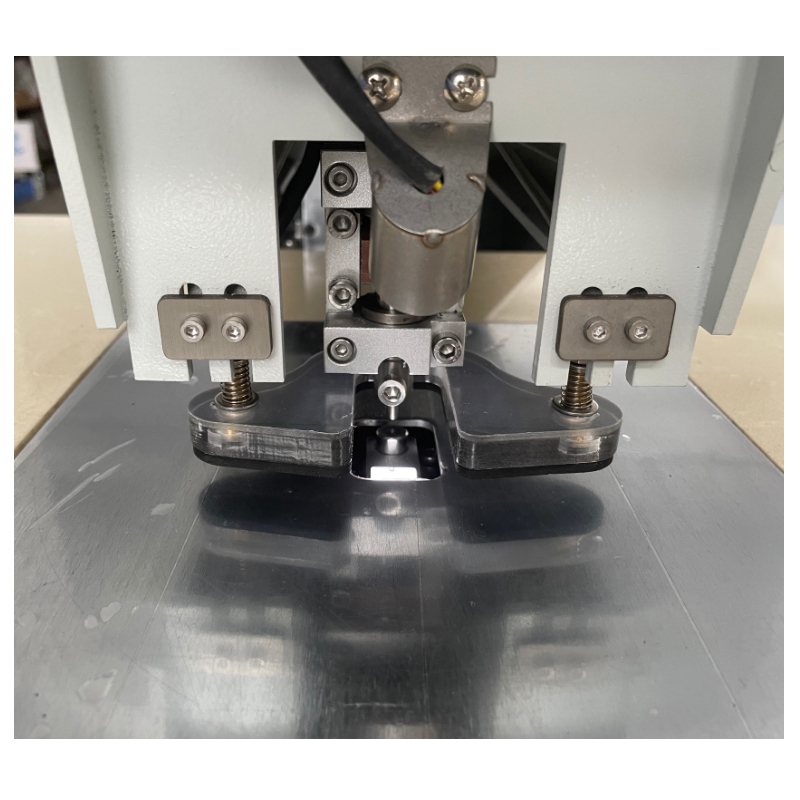

High-Speed Punching – Punch holes rapidly with precise CCD alignment.
Micro-Step Motor Drive – Guarantees stable and accurate performance.

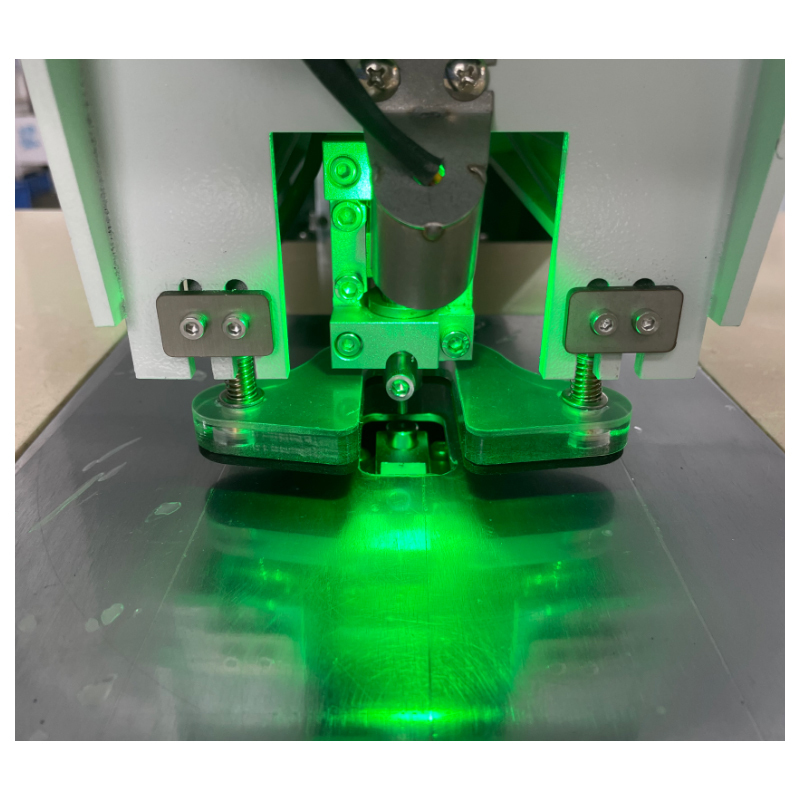

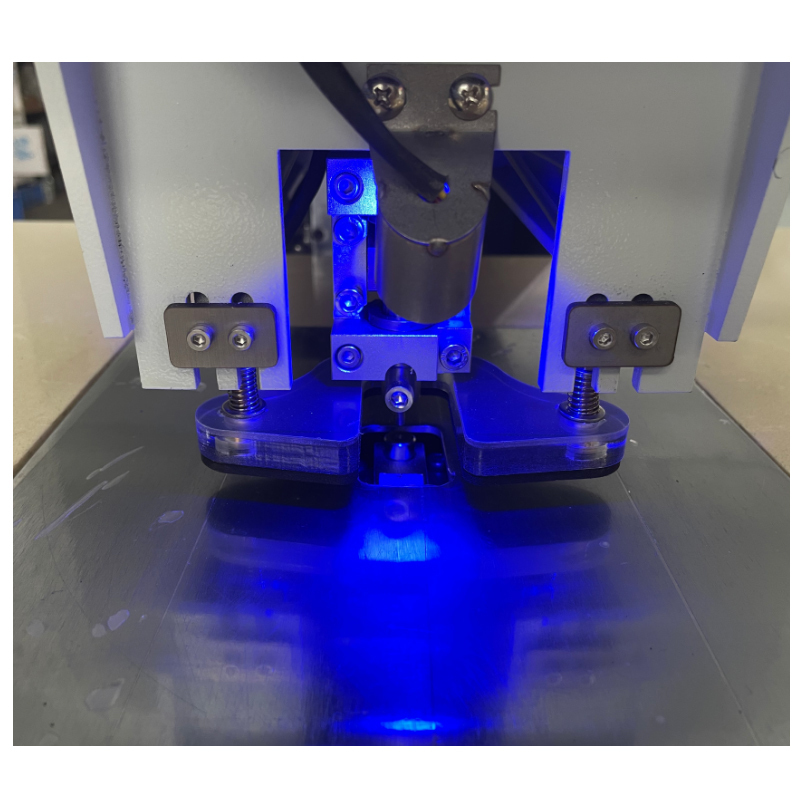

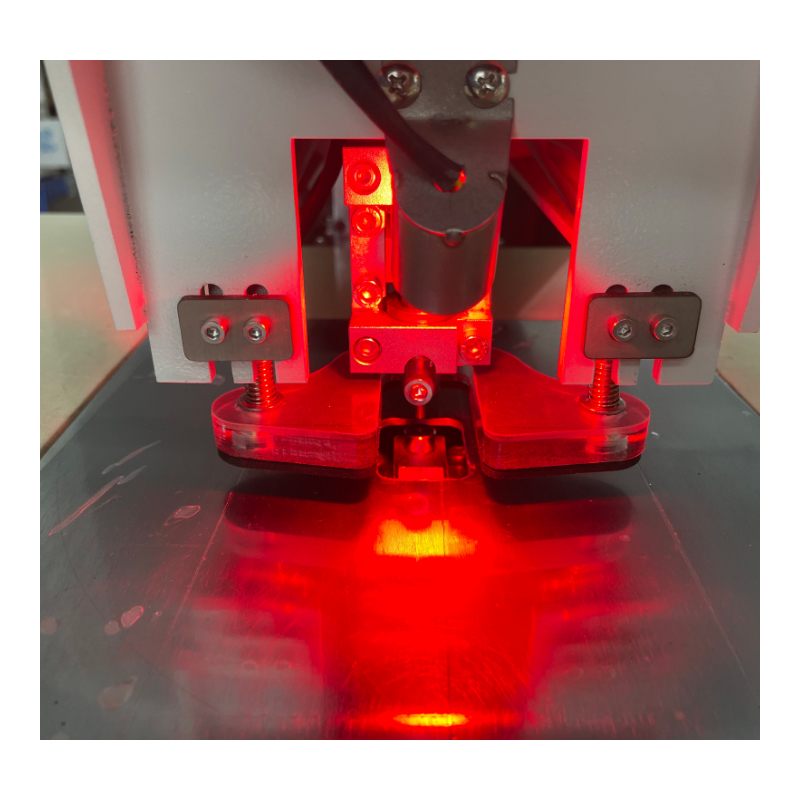

Optimized Lighting – Top and bottom illumination for all material types.
Touch-Screen Control – Eliminates the need for foot pedals, boosting speed.
Flexible Die Compatibility – Accommodates different thicknesses and diameters.
Stored Job Plans – Reuse previous programs to save setup time.
Lifetime Software Upgrade Support – Keep system optimized with new features.
Imported Key Components – Ensures durability, stability, and long-term service life.
| Model | SLTZ15 |
| Dimension | L1100 x W880 x H1150mm |
| Voltage | AC 220V-240V 50HZ |
| Power | 1kW |
| Air pressure | 0.4~0.8Mpa |
| Weight | 200kg |
| Punching force | 9000N |
| Precision | ±0.015mm |
| Table size | L1100 x W770mm |
| Speed | 0.4s/hole |
| Substrate thickness | 0.01-1mm(base on material) |
video
video
video
video
video
video
