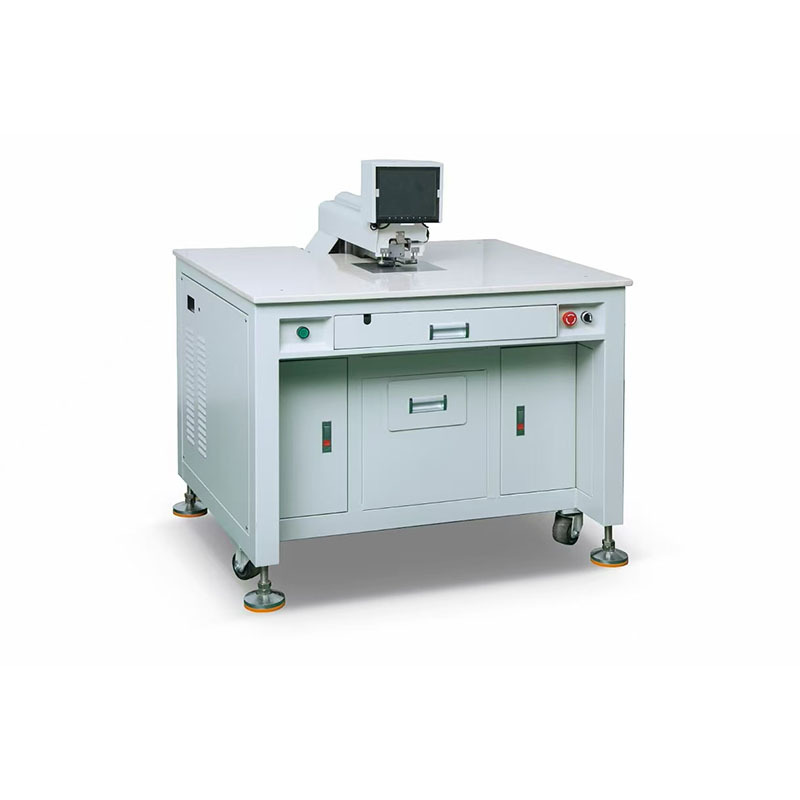

Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets

Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets

Place of Origin:

China

Brand Name:

SILITRON

Certification:

CE

Model Number:

SLTZ15

CONTACT US
Request A Quote
Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets
Product Details
Material Of Punch Die:
SKD11/61 Quenched
Punch Die Life:
1 Million Cycles
Substrate Thickness:
0.01-1mm(base On Material)
Hole Diameter:
Φ1－Φ5mm(customizable)
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1360 x W880 x H1350 mm
Delivery Time
7 days
Payment Terms
T/T
RELATED PRODUCTS
Good price Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate online video

Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate

Get Best Price
Good price Semi-auto CCD Hole Punching Machine For PET Polyester Front Panel online video

Semi-auto CCD Hole Punching Machine For PET Polyester Front Panel

Get Best Price
Good price Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates online video

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates

Get Best Price
Good price Semi-auto CCD Camera Hole Punch Machine For Membrane Switches/Keypads/Keyboards online video

Semi-auto CCD Camera Hole Punch Machine For Membrane Switches/Keypads/Keyboards

Get Best Price
CONTACT US
13714492511
info@silitronmachinery.com
Contact Now
Product Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, nickel nameplates, electroformed nameplates, and other
materials.

Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets 0

Machine Features
  • Intuitive Mouse & Touch Operation – Simplifies workflow via Windows XP system.
  • Wide Worktable – Easily accommodates large substrates for smooth rotation and placement.
  • High-Speed Punching – Target holes detected and punched in less than a second.
  • Micro-Step Precision – Ensures stable, accurate punching with every cycle.
  • Adaptive Lighting – Up-light and down-light maximize CCD recognition on reflective surfaces.
  • Touch-Controlled Workflow – No pedals required; operations are smooth and responsive.
  • Customizable Punch Dies – Supports a variety of hole diameters and material thicknesses.
  • Program Memory – Save recurring job plans for fast repeat operations.
  • Lifetime Software Support – System can be upgraded to maintain top performance.
  • Imported Critical Components – Ensures durability and long service life.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole




Workable Marks

Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets 1 Semi-auto CCD Guide Hole Puncher For Stainless Iron Aluminum Sheets 2


Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
