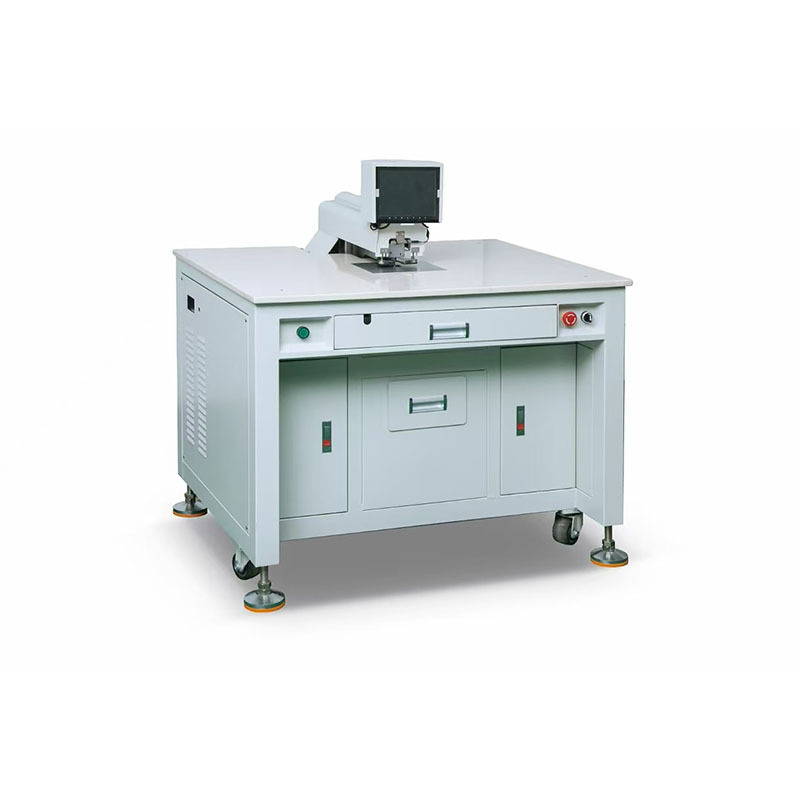

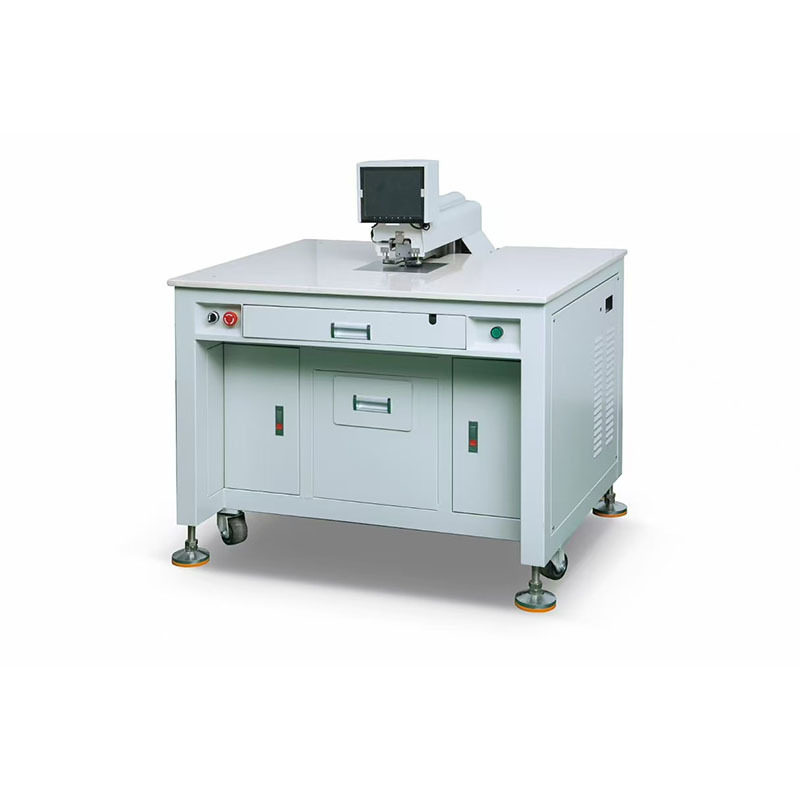

Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate

Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate

Place of Origin:

China

Brand Name:

SILITRON

Certification:

CE

Model Number:

SLTZ15

CONTACT US
Request A Quote
Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate
Product Details
Speed:
0.4s/hole
Precision:
±0.015mm
Substrate Thickness:
0.01-1mm(base On Material)
Hole Diameter:
Φ1－Φ5mm(customizable)
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
L1360 x W880 x H1350 mm
Delivery Time
7 days
Payment Terms
T/T
RELATED PRODUCTS
Good price Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate online video

Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate

Get Best Price
Good price Semi-auto CCD Hole Punching Machine For PET Polyester Front Panel online video

Semi-auto CCD Hole Punching Machine For PET Polyester Front Panel

Get Best Price
Good price Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates online video

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates

Get Best Price
Good price Semi-auto CCD Camera Hole Punch Machine For Membrane Switches/Keypads/Keyboards online video

Semi-auto CCD Camera Hole Punch Machine For Membrane Switches/Keypads/Keyboards

Get Best Price
CONTACT US
13714492511
info@silitronmachinery.com
Contact Now
Product Description
Applicable Industries
The SLTZ15 is engineered for high-precision punching of metal substrates and nameplates, including aluminum sheets, stainless steel, stainless iron, nickel nameplates, and electroformed nameplates.

Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate 0

Machine Features
  • Interactive Windows XP Interface – Streamlines setup and operation.
  • Spacious Stage – Allows substrates to be adjusted and rotated with ease.
  • Rapid Hole Recognition & Punching – Less than one second per cycle.
  • Stable Transmission System – Micro-step motors maintain consistent accuracy.
  • Enhanced Illumination – Top and bottom lights improve recognition for all substrate types.
  • Fully Automated Touch Operation – No foot pedal required for faster workflow.
  • Flexible Tooling – Die sizes can be switched to handle different hole requirements.
  • Reusable Sampling Plans – Quickly recall previous setups for repeated jobs.
  • Software Upgrades Available – Keeps the system current with latest improvements.
  • Quality-Imported Components – Cylinders, valves, and rails guarantee long-term reliability.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm




Workable Marks

Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate 1 Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate 2


Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
